Model Details

HDD-72-10-P-SSC

Printer Friendly
HDD-72-10-P-SSC

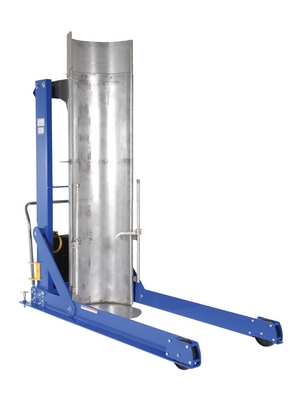

Stainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/Silver

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. this portable unit has casters with floor lock screws. All steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Total Ship Wt.(lbs.): 1069 (only 1 package) Size: 36"W x 92"L x 96"H Color: Blue (Frame), Silver (Chute) Non-Returnable

Uniform Capacity (lb.): 1,000 Dump Height (in.): 72 Rotated Height (in.): 157-1/2
Level Height (in.): 95-1/4 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 13-1/2
Rigid Casters Quantity/Diameter/Width (in.): (2) 8 x 2 Swivel Caster Quantity/Diameter/Width: (2) 6 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDD-72-10-P-SSC
HDD-72-10-P-SSC

Stainless Steel Portable Hydraulic Drum Dumper 72 In. Dump Height 1,000 Lb. Capacity Blue/Silver

The Hydraulic drum dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. this portable unit has casters with floor lock screws. All steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

  • Internal pre-wired heavy-duty electric motor conveniently dumps drums
  • Adjustable drum restraints work with all types of 30 and 55 gallon drums
  • Drum rotation design may be stopped at any point
  • Solid steel construction offers long lasting reliable use
Dimensions: 36"W x 92"L x 96"H Sell UOM: EA-Each Color: Blue (Frame), Silver (Chute)
Material: Steel UPC: 691215119948 GTIN: 00691215119948
Warranty: -- Shipping Weight: 1069 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Dump Height (in.): 72 Rotated Height (in.): 157-1/2
Level Height (in.): 95-1/4 Accepts: 30 and 55-gallon drums Motor Horsepower: 3/4
Single Phase (volts): 115 Motor (Hz): 60 Power Cord Length (ft.): 8
Hand Held Control Cord Length (ft.): 8 Drum Rotation (deg.): 135 Dump Angle (deg.): 45
Chute Diameter (in.): 24 Raise Time (sec.): 42 Motor Style: 56 Frame
Cylinder Diameter (in.): 2-1/2 Cylinder Length (in.): 18 Chute Reach (in.): 13-1/2
Rigid Casters Quantity/Diameter/Width (in.): (2) 8 x 2 Swivel Caster Quantity/Diameter/Width: (2) 6 x 2
