Model Details

HLD-116-10-S

Printer Friendly
HLD-116-10-S

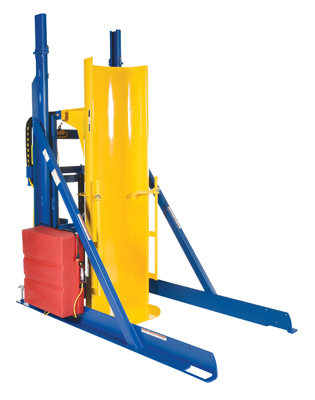

Steel Stationary Lift and Dump Hydraulic Drum Dumper 116 In Dump Height 1,000 Lb. Capacity Blue / Yellow

The stationary lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.

  • Drum dumper is needed to dump drums at variable heights
  • Similar to HDD because adjustable restraints work with 30 and 55 gal drums
  • Features a lift cylinder that allows you to dump at various heights
  • Includes pendant which allows full independent control of lift height and dump angle
Total Ship Wt.(lbs.): 1522 (only 1 package) Size: 51"W x 72.5"L x 97.875"H Color: Blue (Frame), Yellow (Chute) Non-Returnable

Uniform Capacity (lb.): 1,000 Power Source: 460V AC Minimum Dump Height (in.): 60
Maximum Dump Height (in.): 116 Rotation Height (in.): 194 Level Height (in.): 97-7/8
Dump Angle Degree: 45 Motor Horsepower: 2 Motor (Hz): 60
Power Cord Length (feet): 3

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HLD-116-10-S
HLD-116-10-S

Steel Stationary Lift and Dump Hydraulic Drum Dumper 116 In Dump Height 1,000 Lb. Capacity Blue / Yellow

The stationary lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The HLD works similarly to the HDD but includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant which allows the operator full independent control of both lift height and the dump angle.

  • Drum dumper is needed to dump drums at variable heights
  • Similar to HDD because adjustable restraints work with 30 and 55 gal drums
  • Features a lift cylinder that allows you to dump at various heights
  • Includes pendant which allows full independent control of lift height and dump angle
Dimensions: 51"W x 72.5"L x 97.875"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Chute)
Material: Steel UPC: 691215061094 GTIN: 00691215061094
Warranty: -- Shipping Weight: 1522 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,000 Power Source: 460V AC Minimum Dump Height (in.): 60
Maximum Dump Height (in.): 116 Rotation Height (in.): 194 Level Height (in.): 97-7/8
Dump Angle Degree: 45 Motor Horsepower: 2 Motor (Hz): 60
Power Cord Length (feet): 3
