Model Details

HLD-94-15-S-DC

Printer Friendly
HLD-94-15-S-DC

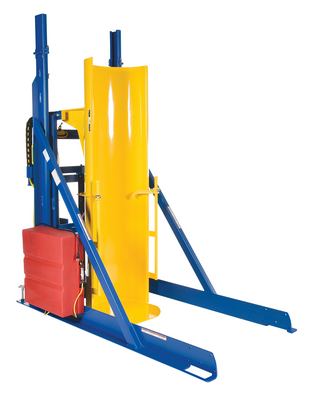

Steel DC Powered Stationary Lift and Dump Hydraulic Drum Dumper 94 In Dump Height 1,500 Lb. Capacity Blue / Yellow

The lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The portable HLD includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant, which allows the operator full independent control of both lift height and dump angle.

  • Strong construction for long term daily use
  • Ergonomically friendly design diminishes manual lifting
  • Complete control for specific angled dumping
  • Hydraulic lift for perfect height placement
Total Ship Wt.(lbs.): 1454 (only 1 package) Size: 51"W x 65.5"L x 85.875"H Color: Blue (Frame), Yellow (Chute) Non-Returnable

Uniform Capacity (lb.): 1,500 Power Source: 12V DC Compatible Drum Material: Any
Overall Raised Height (in): 163 Minimum Dump Height (in): 48 Maximum Dump Height (in): 94
Dump Angle (°): 40

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HLD-94-15-S-DC
HLD-94-15-S-DC

Steel DC Powered Stationary Lift and Dump Hydraulic Drum Dumper 94 In Dump Height 1,500 Lb. Capacity Blue / Yellow

The lift-and-dump Hydraulic drum dumper is what you need to dump drums at variable heights. The portable HLD includes a lift cylinder that allows you to dump at various heights. Features a four (4) push button pendant, which allows the operator full independent control of both lift height and dump angle.

  • Strong construction for long term daily use
  • Ergonomically friendly design diminishes manual lifting
  • Complete control for specific angled dumping
  • Hydraulic lift for perfect height placement
Dimensions: 51"W x 65.5"L x 85.875"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Chute)
Material: Steel UPC: 691215129688 GTIN: 00691215129688
Warranty: -- Shipping Weight: 1454 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,500 Power Source: 12V DC Compatible Drum Material: Any
Overall Raised Height (in): 163 Minimum Dump Height (in): 48 Maximum Dump Height (in): 94
Dump Angle (°): 40
