Model Details

HMG-35-4

Printer Friendly
HMG-35-4

Steel Hydraulic Material Grapple 35" Opening 4000 lb Capacity Black

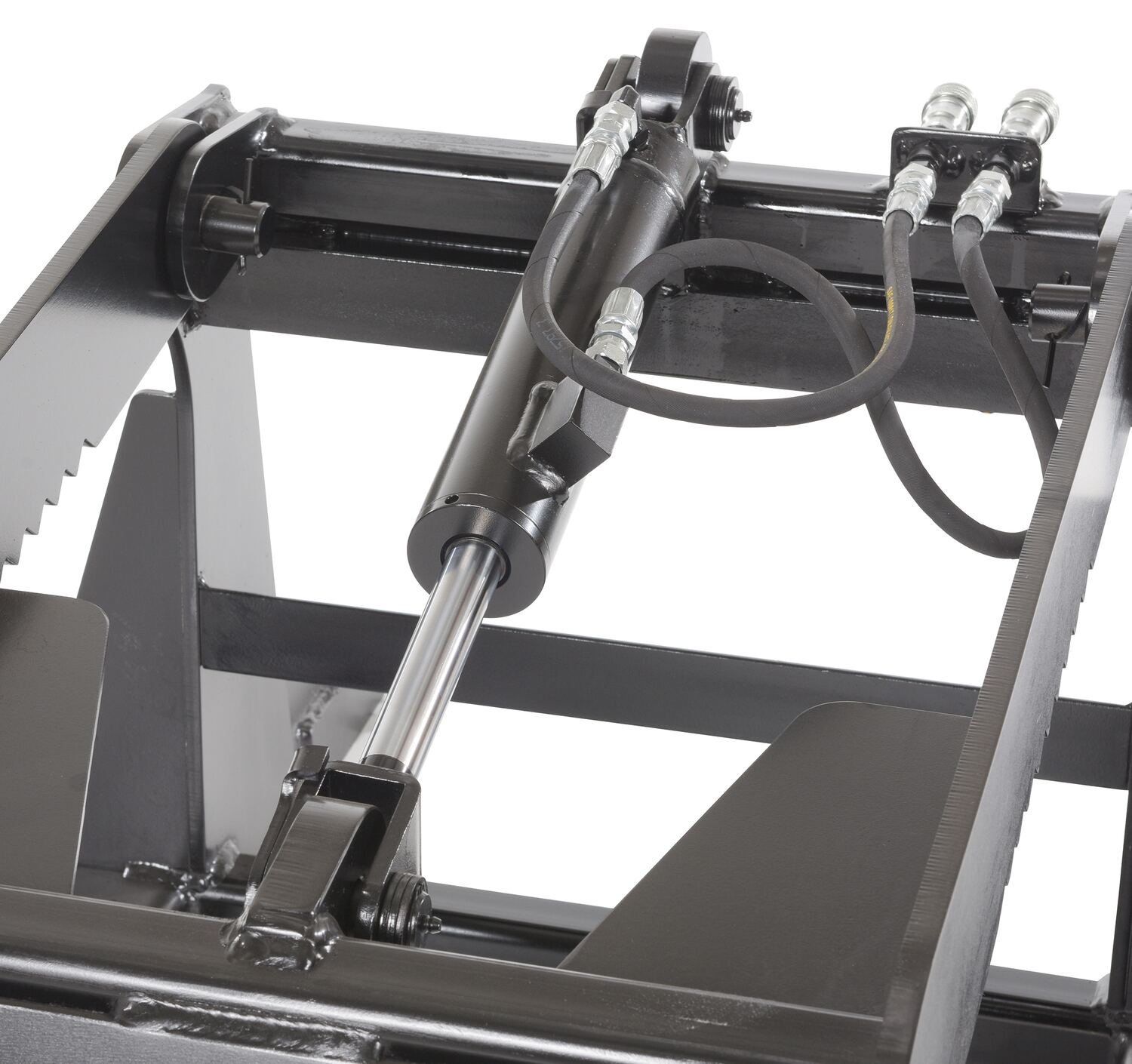

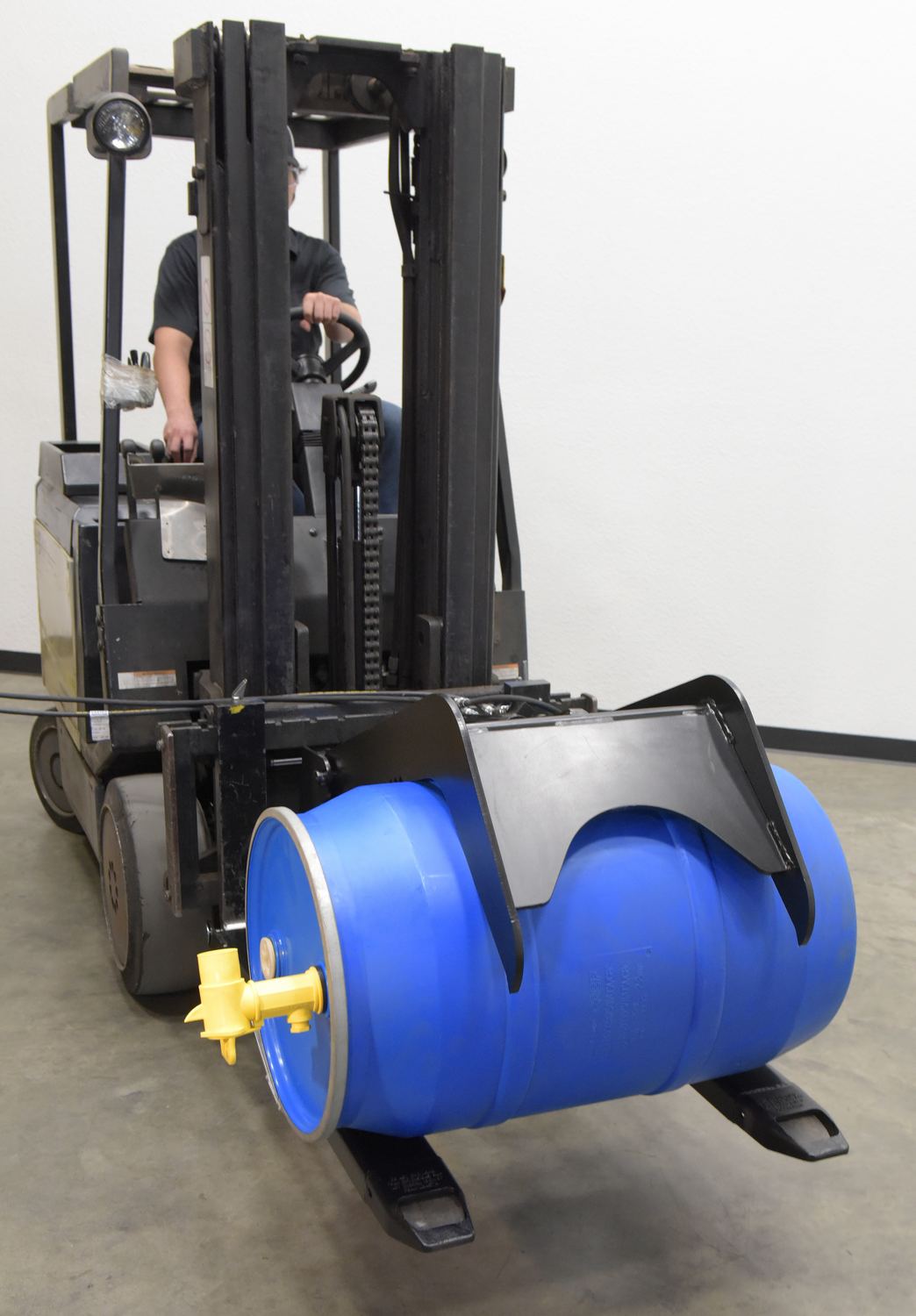

A material grapple attachment helps secure round or oversized items. With an arched two arm design, needless product movement is minimized during transference between areas. The top two arms also have a saw-like pattern for increased control during loading and unloading. The unit is operated by use of the fork trucks hydraulic lines. The grapple includes a steel frame with a powder coat finish.

  • 4.5" wide fork pockets
  • 35" opening height
  • 4000 lbs. capacity
  • 26.375" fork pocket center to fork pocket center
Total Ship Wt.(lbs.): 296 (only 1 package) Size: 33.5"W x 51.75"L x 43.375"H Color: Black Non-Returnable

Uniform Capacity (lbs.): 4000 Usable Length (in.): 32 Minimum Usable Width (in.): 30
Usable Opening (in.): 35 Overall Height (in.): 43.375 Attachment Style: Fork Pockets
Fork Pocket Width (in.): 4.5 Fork Pocket Height (in.): 2 Fork Pocket on Center (in.): 26.375

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HMG-35-4
HMG-35-4

Steel Hydraulic Material Grapple 35" Opening 4000 lb Capacity Black

A material grapple attachment helps secure round or oversized items. With an arched two arm design, needless product movement is minimized during transference between areas. The top two arms also have a saw-like pattern for increased control during loading and unloading. The unit is operated by use of the fork trucks hydraulic lines. The grapple includes a steel frame with a powder coat finish.

  • 4.5" wide fork pockets
  • 35" opening height
  • 4000 lbs. capacity
  • 26.375" fork pocket center to fork pocket center
Dimensions: 33.5"W x 51.75"L x 43.375"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215372077 GTIN: 00691215372077
Warranty: -- Shipping Weight: 296 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs.): 4000 Usable Length (in.): 32 Minimum Usable Width (in.): 30
Usable Opening (in.): 35 Overall Height (in.): 43.375 Attachment Style: Fork Pockets
Fork Pocket Width (in.): 4.5 Fork Pocket Height (in.): 2 Fork Pocket on Center (in.): 26.375
