Model Details

HPRO-RF-36-36-4

Printer Friendly
HPRO-RF-36-36-4

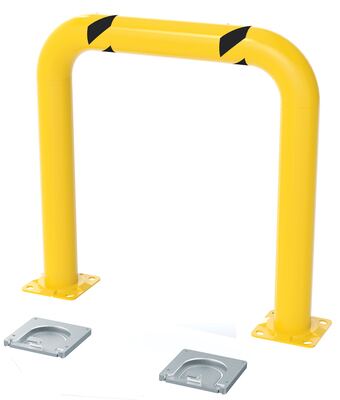

Steel Removable High Profile Rack Guard 36 In. x 36 In. Yellow

The surface-mounted steel base plates allow for quick and easy removal of this High Profile machinery guard. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then locked into place. Base plate includes four (4) pre-drilled mounting holes. Welded steel construction with yellow powder coat finish.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Total Ship Wt.(lbs.): 68 (only 1 package) Size: 8"W x 39.5"L x 36"H Color: Yellow

Guard Diameter (in.): 4-1/2 Base Plate Width/Length (in.): 8 x 8 Bolt Hole (qty.): 8
OSHA: 1910.23(e)(1) Inside Diameter (in.): 4-1/4 Base Plate Thickness (in.): 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HPRO-RF-36-36-4
HPRO-RF-36-36-4

Steel Removable High Profile Rack Guard 36 In. x 36 In. Yellow

The surface-mounted steel base plates allow for quick and easy removal of this High Profile machinery guard. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then locked into place. Base plate includes four (4) pre-drilled mounting holes. Welded steel construction with yellow powder coat finish.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Dimensions: 8"W x 39.5"L x 36"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215067959 GTIN: 00691215067959
Warranty: -- Shipping Weight: 68 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Guard Diameter (in.): 4-1/2 Base Plate Width/Length (in.): 8 x 8 Bolt Hole (qty.): 8
OSHA: 1910.23(e)(1) Inside Diameter (in.): 4-1/4 Base Plate Thickness (in.): 1/4
