Model Details

HPRO-SQ-48-36-5

Printer Friendly
HPRO-SQ-48-36-5

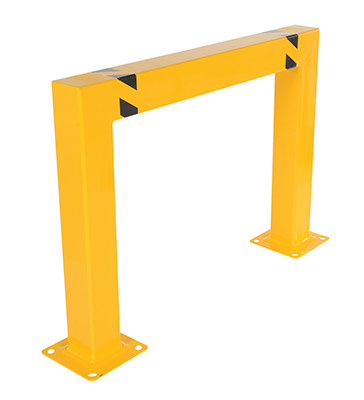

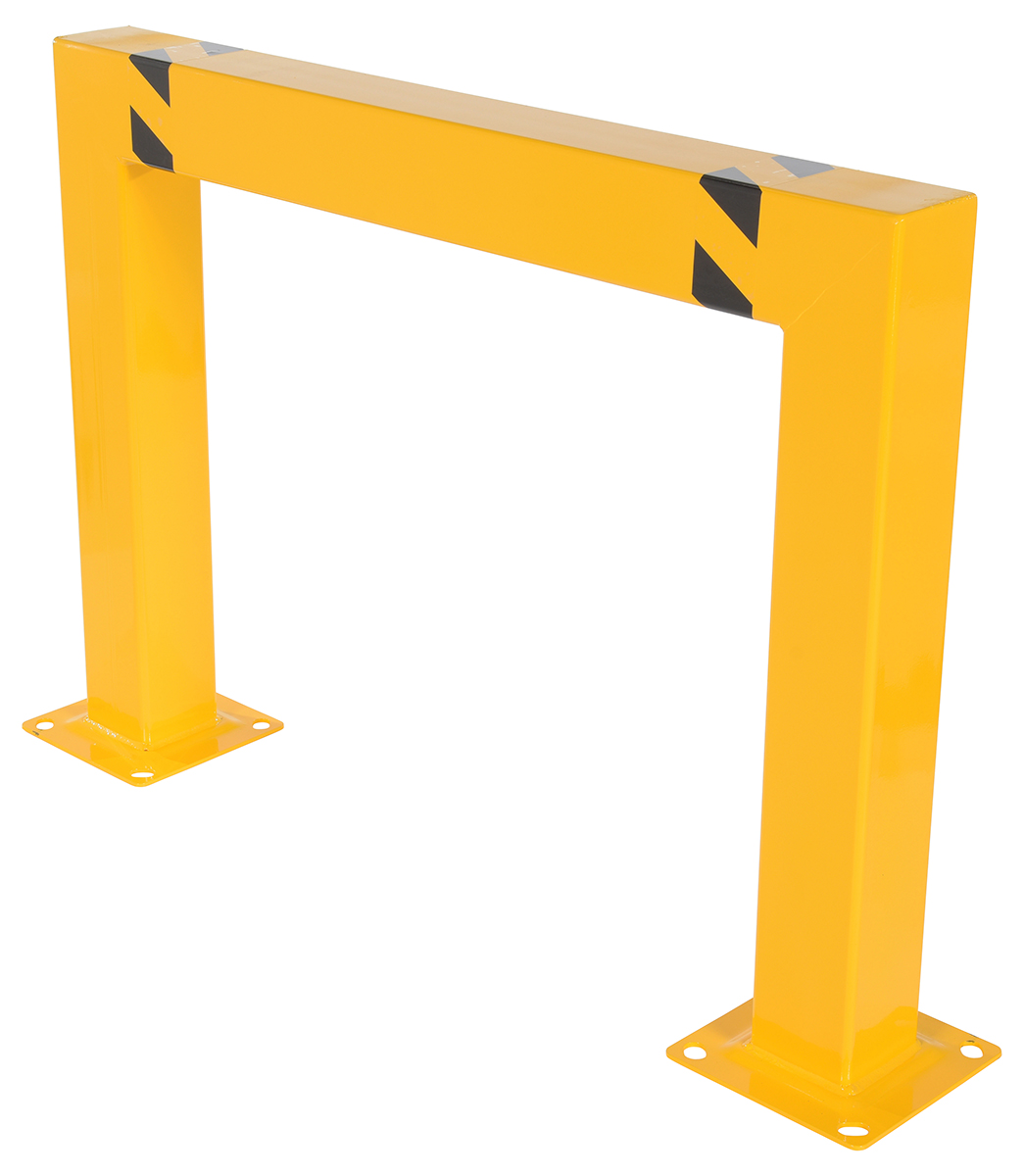

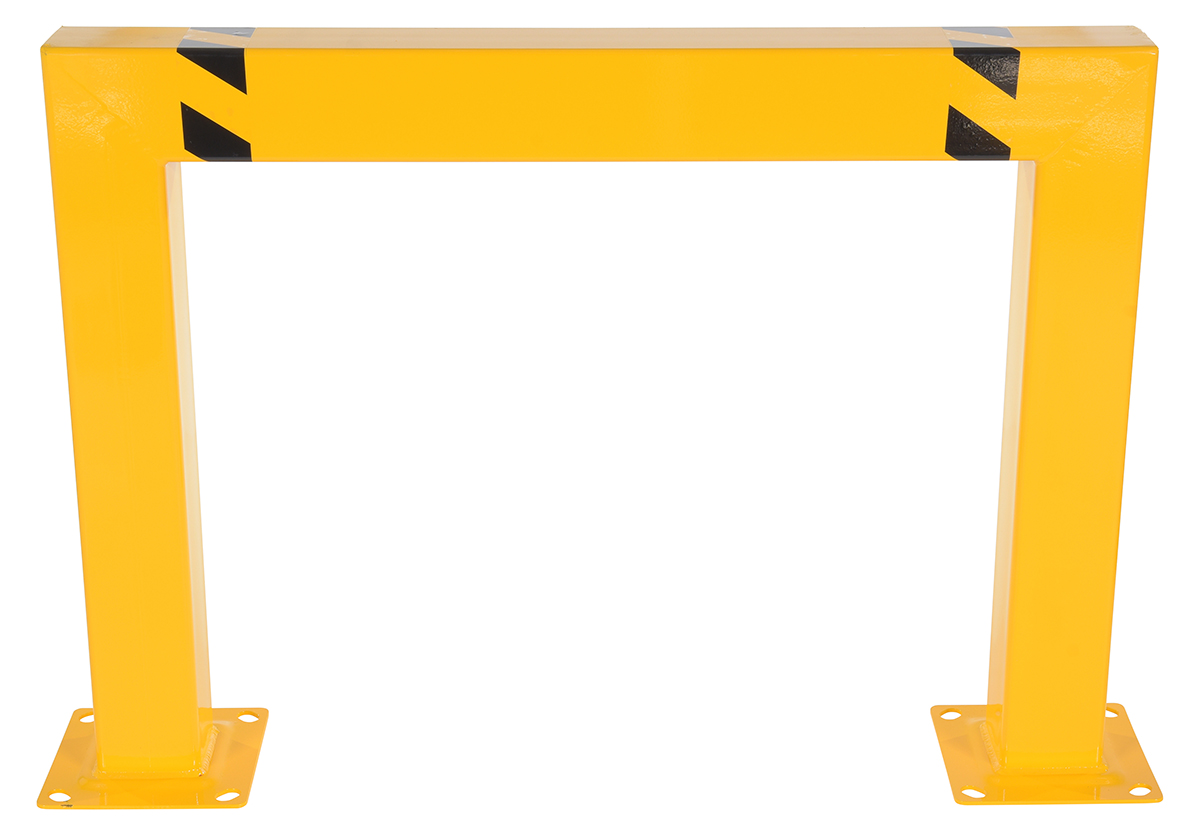

Steel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. Yellow

Heavy duty machine and rack guards are simple and efficient ways of enhancing safety. The large upright size keeps machinery safe from unintended impact. The unit has a strong steel construction with a yellow powder coat finish for both strength and continued visibility. A simple installation will have these guards in place and protecting assets in just a short period of time.

  • Perfect for protecting items
  • Highly visible
  • Simple foundation installation
  • Strong steel design
Total Ship Wt.(lbs.): 120 (only 1 package) Size: 10"W x 53"L x 36"H Color: Yellow

Usable Width (in.): 5 Usable Length (in.): 48 Usable Height (in.): 36
Plate Width (in.): 10 Plate Length (in.): 10 Plate Thickness (in.): 3/16
Plate holes (qty.): 4 Hole Slot Diameter (in.): 7/8 X 1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HPRO-SQ-48-36-5
HPRO-SQ-48-36-5

Steel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. Yellow

Heavy duty machine and rack guards are simple and efficient ways of enhancing safety. The large upright size keeps machinery safe from unintended impact. The unit has a strong steel construction with a yellow powder coat finish for both strength and continued visibility. A simple installation will have these guards in place and protecting assets in just a short period of time.

  • Perfect for protecting items
  • Highly visible
  • Simple foundation installation
  • Strong steel design
Dimensions: 10"W x 53"L x 36"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215329286 GTIN: 00691215329286
Warranty: -- Shipping Weight: 120 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Usable Width (in.): 5 Usable Length (in.): 48 Usable Height (in.): 36
Plate Width (in.): 10 Plate Length (in.): 10 Plate Thickness (in.): 3/16
Plate holes (qty.): 4 Hole Slot Diameter (in.): 7/8 X 1/4
