HPRO-SS-36-42-4

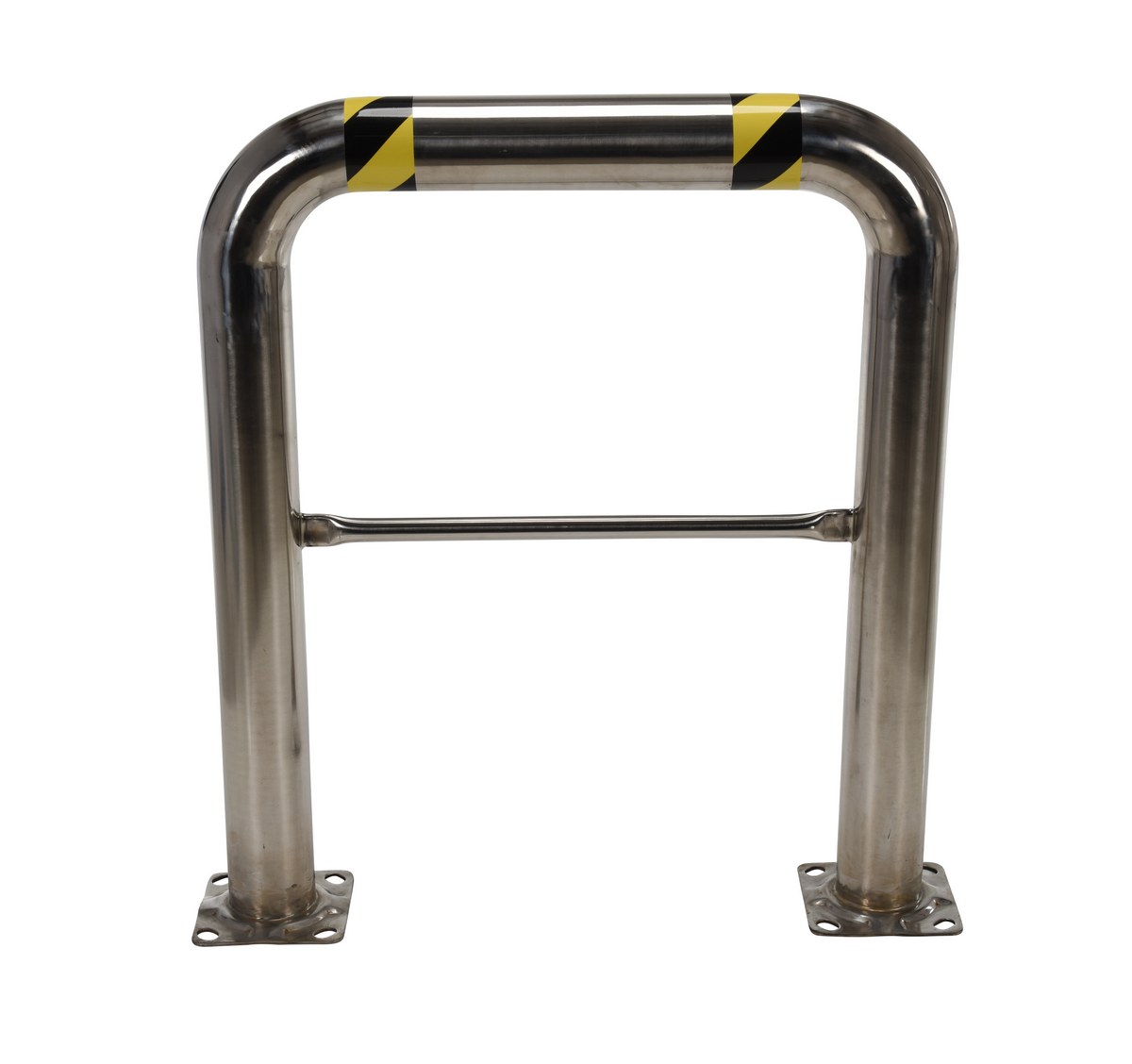

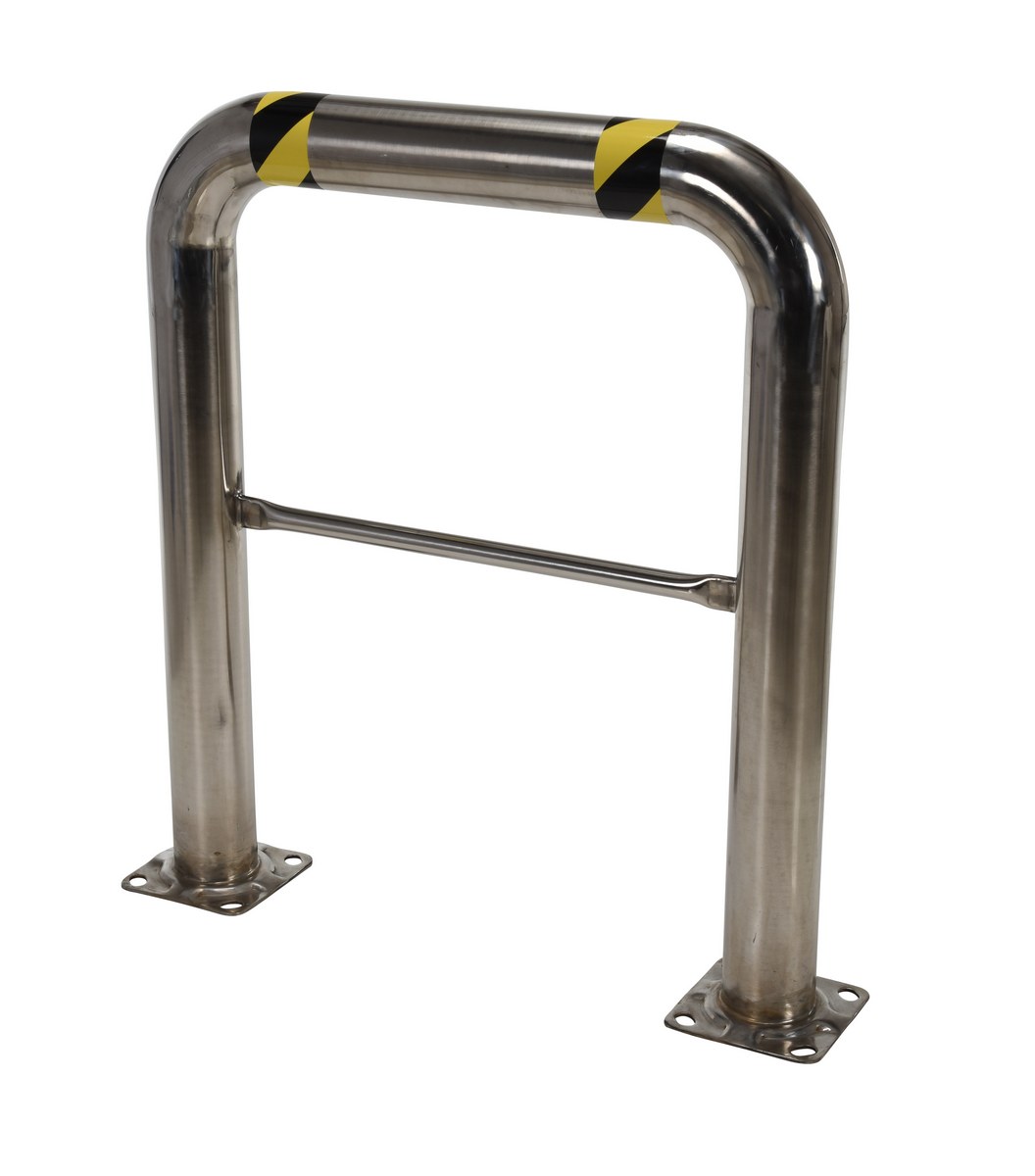

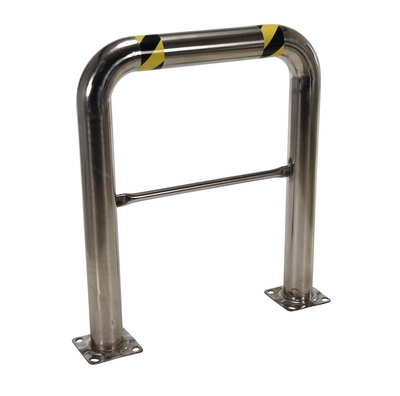

Stainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. Silver

This High Profile machinery guard is heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. Unit includes a mid-rail to comply with OSHA requirements. Stainless steel polished finish. Two (2) base plates with four (4) pre-drilled mounting holes in each plate.

  • Type 304 stainless steel construction has a polished surface finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • NSF/ANSI 51-2009 compliant for non-food and splash zone environments within the food industry
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Total Ship Wt.(lbs.): 100 (only 1 package) Size: 8"W x 40.25"L x 42.25"H Color: Silver Non-Returnable

Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 Base Plate Width/Length (in.): 8 x 8
Bolt Holes (qty.): 8 OSHA: 1910.23(e)(1) Bolt Hole Diameter (in.): 7/8
Base Plate Thickness (in.): 1/4 Mid-Rail Height (in.): 21

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HPRO-SS-36-42-4
HPRO-SS-36-42-4

Stainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. Silver

This High Profile machinery guard is heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. Unit includes a mid-rail to comply with OSHA requirements. Stainless steel polished finish. Two (2) base plates with four (4) pre-drilled mounting holes in each plate.

  • Type 304 stainless steel construction has a polished surface finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • NSF/ANSI 51-2009 compliant for non-food and splash zone environments within the food industry
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Dimensions: 8"W x 40.25"L x 42.25"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215077163 GTIN: 00691215077163
Warranty: -- Shipping Weight: 100 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 Base Plate Width/Length (in.): 8 x 8
Bolt Holes (qty.): 8 OSHA: 1910.23(e)(1) Bolt Hole Diameter (in.): 7/8
Base Plate Thickness (in.): 1/4 Mid-Rail Height (in.): 21
