Model Details

HRAIL-A-9072

Printer Friendly
HRAIL-A-9072

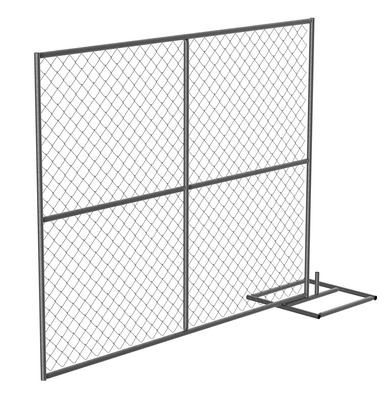

Galvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072

Add-on section for construction safety barrier is designed to temporarily secure your job site from theft, hazard liability, and dumping. Simply order starter unit then as many add-on units as necessary. Panel sections are made from steel tubing.

  • 10 gauge chain link
  • Diamond mesh design enables visibility
  • Galvanized finish
  • Chain link fence is secured to barrier with steel ties

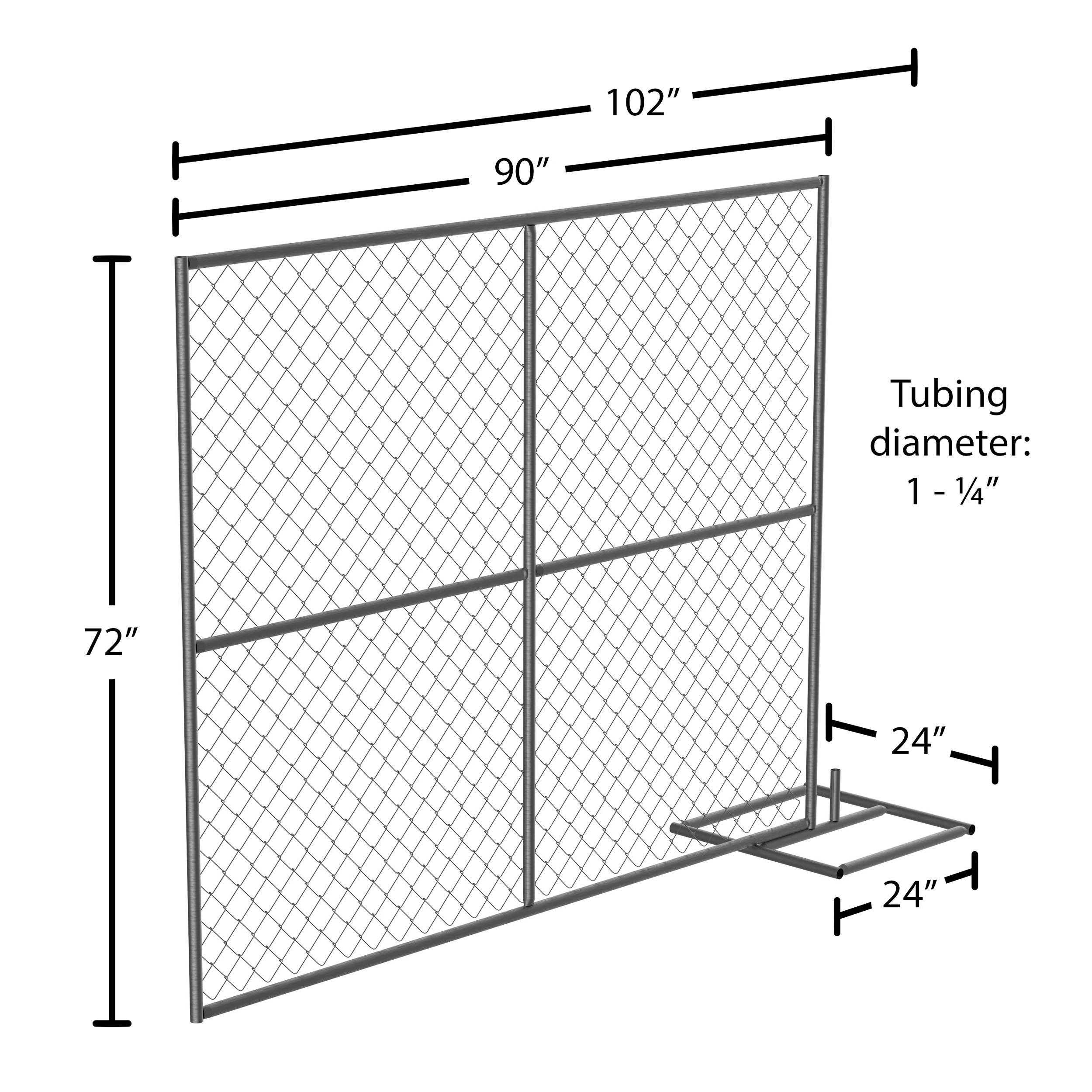

Total Ship Wt.(lbs.): 115 (only 1 package) Size: 24"W x 102"L x 72"H Color: Gray

Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 Chain Link Opening (in.): 2-3/8 x 2-3/8
Panel (qty.): 1 Base (qty.): 1 Connector (qty.): 2
Base Length (in.): 24 Base Width (in.): 24 Base Height (in.): 7
Connector Length (in.): 1-1/4 Connector Width (in.): 5-1/4 Connector Height (in.): 1-1/8
Mesh Type: Diamond Panel Width (in.): 1-1/2 Panel Length (in.): 90
Panel Height (in.): 72

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HRAIL-A-9072
HRAIL-A-9072

Galvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072

Add-on section for construction safety barrier is designed to temporarily secure your job site from theft, hazard liability, and dumping. Simply order starter unit then as many add-on units as necessary. Panel sections are made from steel tubing.

  • 10 gauge chain link
  • Diamond mesh design enables visibility
  • Galvanized finish
  • Chain link fence is secured to barrier with steel ties
Dimensions: 24"W x 102"L x 72"H Sell UOM: EA-Each Color: Gray
Material: Welded Steel UPC: 691215097338 GTIN: 00691215097338
Warranty: -- Shipping Weight: 115 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 Chain Link Opening (in.): 2-3/8 x 2-3/8
Panel (qty.): 1 Base (qty.): 1 Connector (qty.): 2
Base Length (in.): 24 Base Width (in.): 24 Base Height (in.): 7
Connector Length (in.): 1-1/4 Connector Width (in.): 5-1/4 Connector Height (in.): 1-1/8
Mesh Type: Diamond Panel Width (in.): 1-1/2 Panel Length (in.): 90
Panel Height (in.): 72
