Model Details

HT-20-2436A-AIR

Printer Friendly
HT-20-2436A-AIR

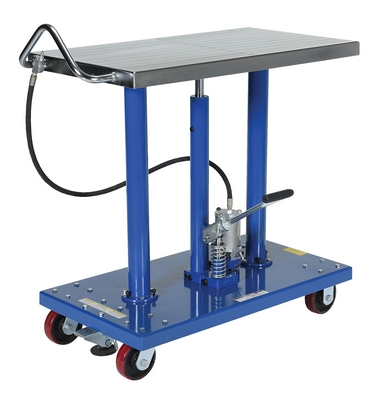

Steel Air Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue / Silver

Air-operated hydraulic lift tables are built for heavy duty shop use such as lifting dies and castings, moving machine parts, positioning welder's work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. Posts are telescoping to help stabilize and support loads during operation. Powder coat finish.

  • Great for a variety of settings
  • Hydraulic lift creates a more ergonomically stable platform
  • Powder coated for smooth surface
  • Steel construction for durable strength
Total Ship Wt.(lbs.): 367 (only 1 package) Size: 24"W x 42"L x 36"H Color: Blue / Silver Non-Returnable

Uniform Capacity (lb.): 2000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 4
Caster Diameter (in.): 4 Caster Width (in.): 1-1/2 Caster Material: Poly-on-Poly
Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Minimum Hose Diameter (in.): 1/4 Minimum Air Pressure (psi): 72 to 100

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HT-20-2436A-AIR
HT-20-2436A-AIR

Steel Air Hydraulic Post Table 24 In. x 36 In. 2000 Lb. Capacity Blue / Silver

Air-operated hydraulic lift tables are built for heavy duty shop use such as lifting dies and castings, moving machine parts, positioning welder's work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. Posts are telescoping to help stabilize and support loads during operation. Powder coat finish.

  • Great for a variety of settings
  • Hydraulic lift creates a more ergonomically stable platform
  • Powder coated for smooth surface
  • Steel construction for durable strength
Dimensions: 24"W x 42"L x 36"H Sell UOM: EA-Each Color: Blue / Silver
Material: Steel UPC: 691215116640 GTIN: 00691215116640
Warranty: -- Shipping Weight: 367 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 4
Caster Diameter (in.): 4 Caster Width (in.): 1-1/2 Caster Material: Poly-on-Poly
Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Minimum Hose Diameter (in.): 1/4 Minimum Air Pressure (psi): 72 to 100
