Model Details

HWL-330

Printer Friendly
HWL-330

Steel Portable Hand Winch Lifter 330 Lb. Capacity Yellow / Black

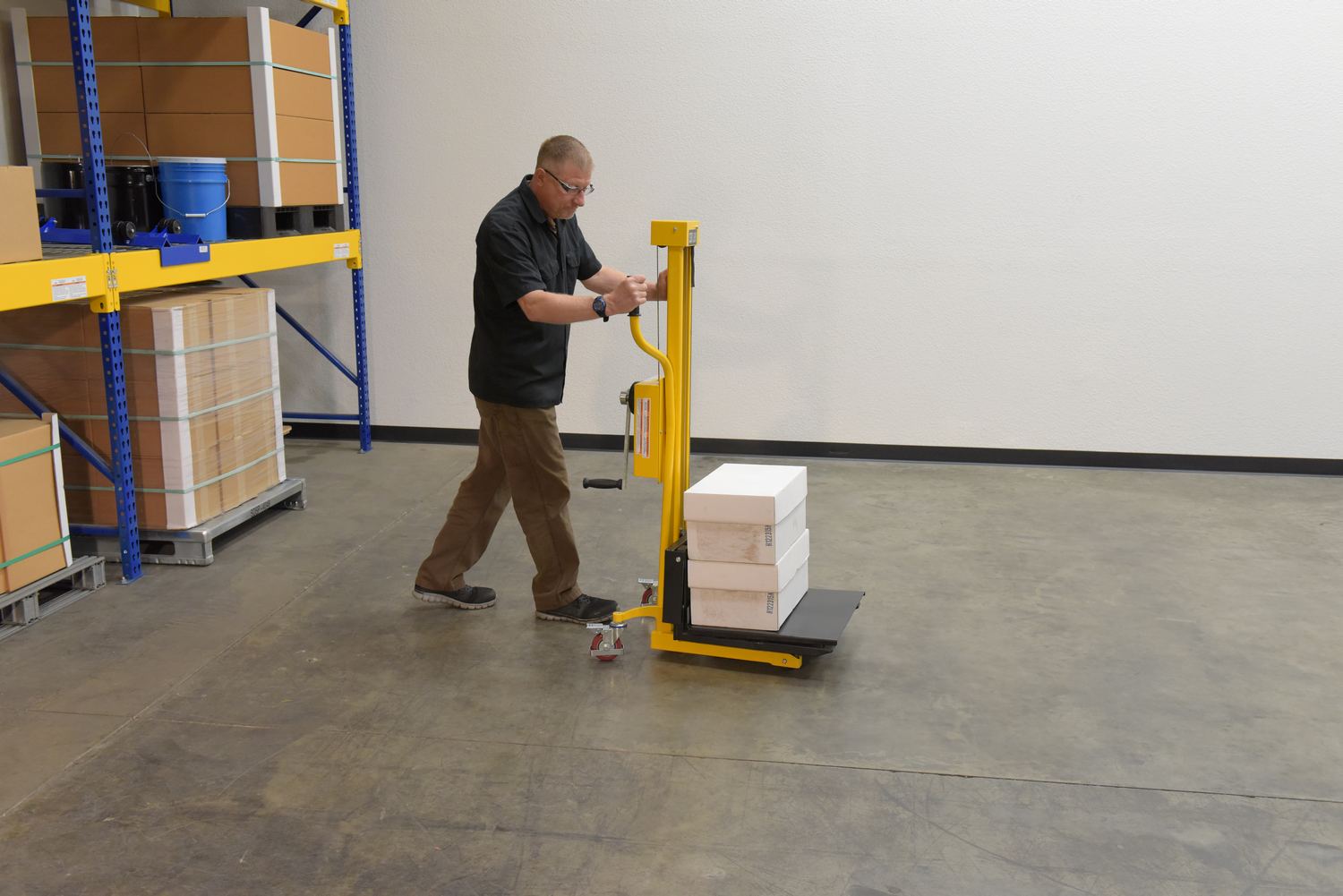

The portable hand winch lifter is easy to maneuver with two (2) rigid and two (2) locking swivel wheels. It features a removable platform with adjustable forks underneath for increased versatility. The handle length on the hand crank may be adjusted to increase or decrease lifting/lowering speeds.

  • Removable platform with adjustable forks increases versatility
  • Handle length on the hand crank may be adjusted
  • Can increase or decrease lifting/lowering speeds
  • Two (2) rigid and two (2) locking swivel wheels makes it easy to maneuver
Total Ship Wt.(lbs.): 213 (only 1 package) Size: 22.25"W x 31.5"L x 58.5"H Color: Yellow / Black

Uniform Capacity (lb.): 330 Fork Length (in.): 19-1/2 Fork Width (in.): 2
Back Wheel Diameter (in.): 4 Back Wheel Width (in.): 1 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 1 Caster Material: Phenolic Minimum Fork Height (in.): 3
Maximum Fork Height (in.): 43-1/2 Platform Width (in.): 21 Platform Length (in.): 19-1/2
Straddle Clearance (in.): 11-3/8 Operation Type: Hand Winch Lift Per Rotation (in.): 2-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HWL-330
HWL-330

Steel Portable Hand Winch Lifter 330 Lb. Capacity Yellow / Black

The portable hand winch lifter is easy to maneuver with two (2) rigid and two (2) locking swivel wheels. It features a removable platform with adjustable forks underneath for increased versatility. The handle length on the hand crank may be adjusted to increase or decrease lifting/lowering speeds.

  • Removable platform with adjustable forks increases versatility
  • Handle length on the hand crank may be adjusted
  • Can increase or decrease lifting/lowering speeds
  • Two (2) rigid and two (2) locking swivel wheels makes it easy to maneuver
Dimensions: 22.25"W x 31.5"L x 58.5"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215024310 GTIN: 00691215024310
Warranty: -- Shipping Weight: 213 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 330 Fork Length (in.): 19-1/2 Fork Width (in.): 2
Back Wheel Diameter (in.): 4 Back Wheel Width (in.): 1 Front Wheel Diameter (in.): 4
Front Wheel Width (in.): 1 Caster Material: Phenolic Minimum Fork Height (in.): 3
Maximum Fork Height (in.): 43-1/2 Platform Width (in.): 21 Platform Length (in.): 19-1/2
Straddle Clearance (in.): 11-3/8 Operation Type: Hand Winch Lift Per Rotation (in.): 2-1/2
