Model Details

HYD-5-AS

HYD-5-AS

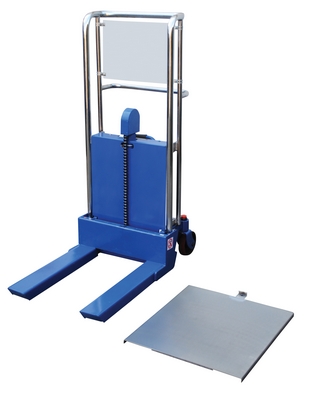

Steel Two Speed Foot Pump Hefti-Lift 36 In. x 55 In. 880 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Removable platform allows operation requiring forks
  • Quick lift for precise distance control
  • Robust material for long life
  • Smooth surface for transferring a variety of objects
Total Ship Wt.(lbs.): 286 (only 1 package) Size: 23"W x 36"L x 55"H Color: Blue

Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 4 to 44
Operation: Auto shift foot Pump Pump (qty.): 22 Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Height (in.): 4-3/8 x 2-1/2 Fork Length (in.): 24 Overall Fork Width (in.): 22
Handle Height (in.): 42 Back Caster Quantity/Diameter/Width (in.): (2) 6 x 1-1/2 Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2 Front Caster Type: Rigid Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 14 Outrigger Outside Dimension (in.): 18-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-5-AS


HYD-5-AS

Steel Two Speed Foot Pump Hefti-Lift 36 In. x 55 In. 880 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Removable platform allows operation requiring forks
  • Quick lift for precise distance control
  • Robust material for long life
  • Smooth surface for transferring a variety of objects
Dimensions: 23"W x 36"L x 55"H Sell UOM: EA-Each Color: Blue
Material: Welded Steel UPC: 691215321051 GTIN: 00691215321051
Warranty: -- Shipping Weight: 286 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 4 to 44
Operation: Auto shift foot Pump Pump (qty.): 22 Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Height (in.): 4-3/8 x 2-1/2 Fork Length (in.): 24 Overall Fork Width (in.): 22
Handle Height (in.): 42 Back Caster Quantity/Diameter/Width (in.): (2) 6 x 1-1/2 Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2 Front Caster Type: Rigid Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 14 Outrigger Outside Dimension (in.): 18-1/4
