Model Details

HYD-5-SS

Printer Friendly
HYD-5-SS

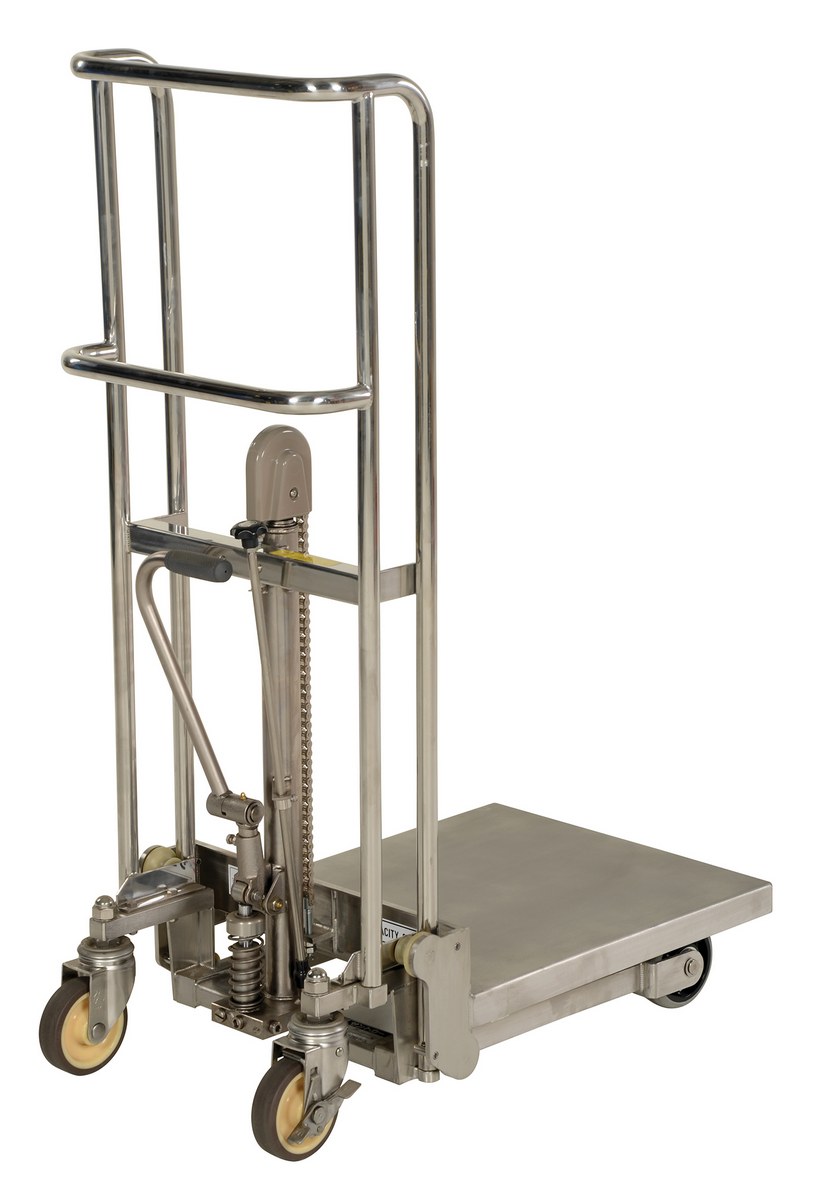

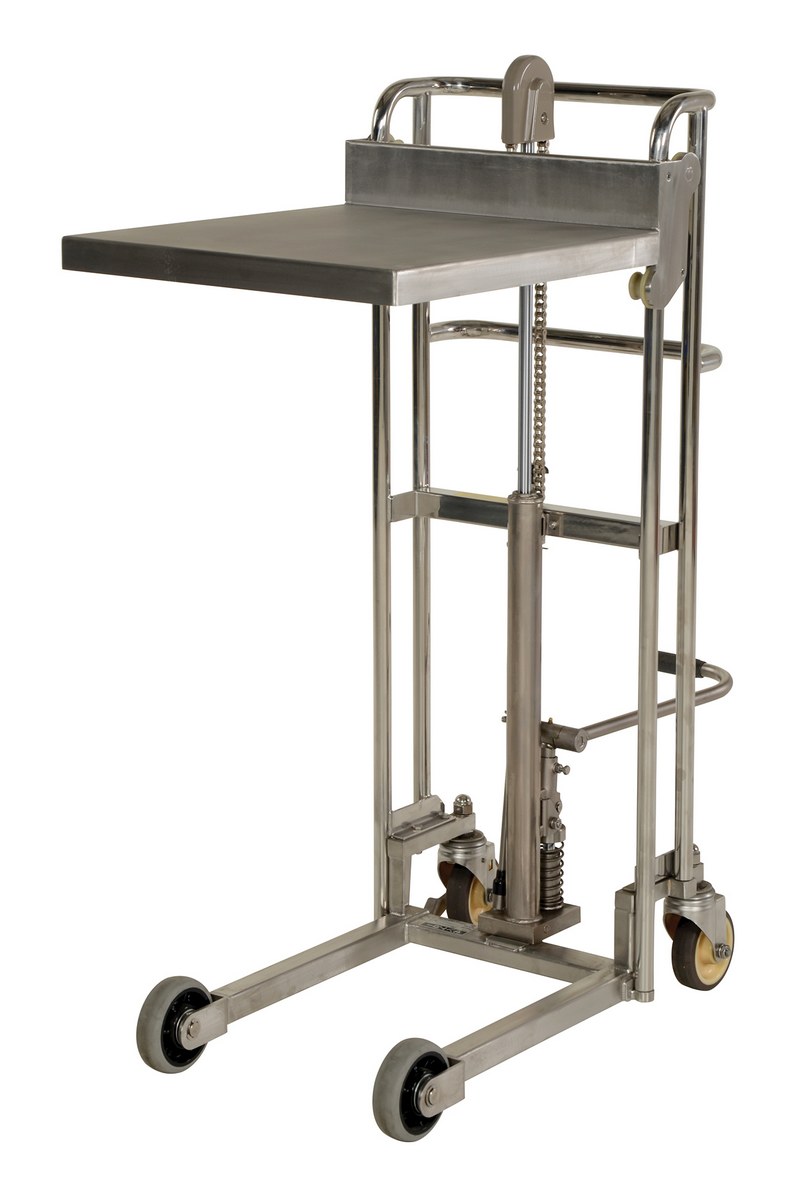

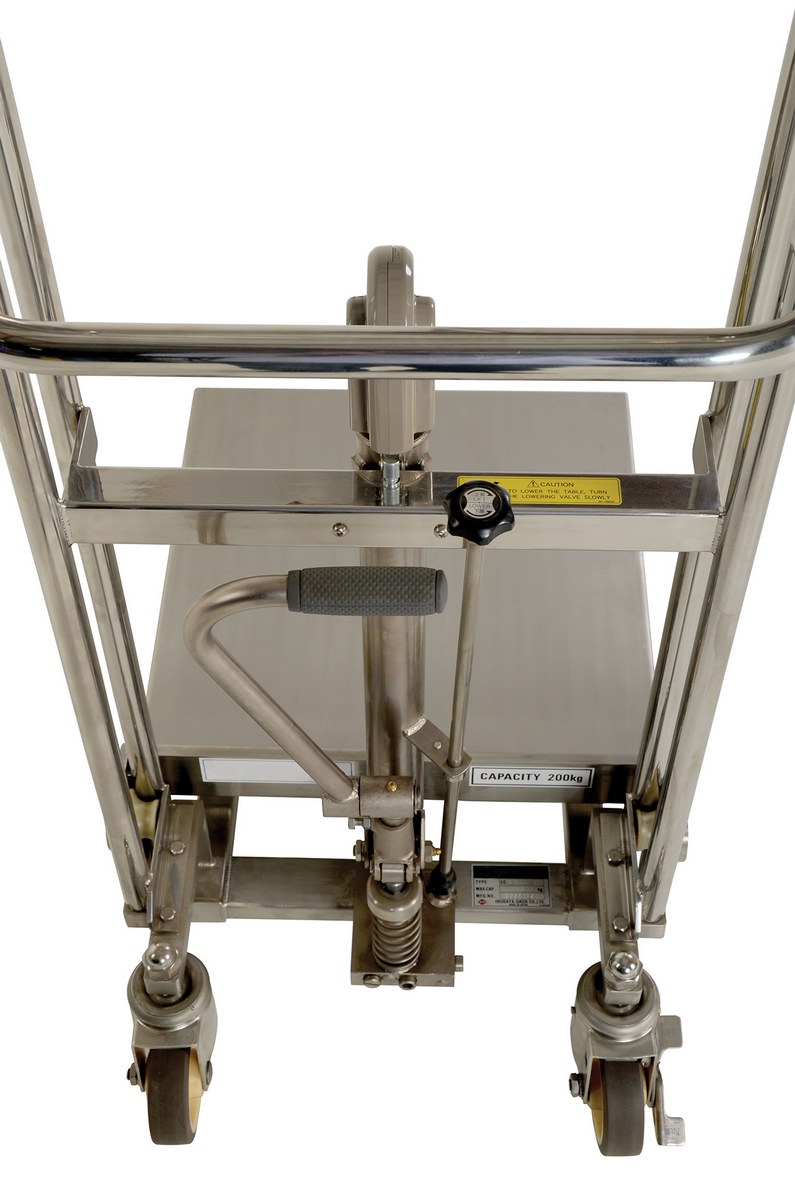

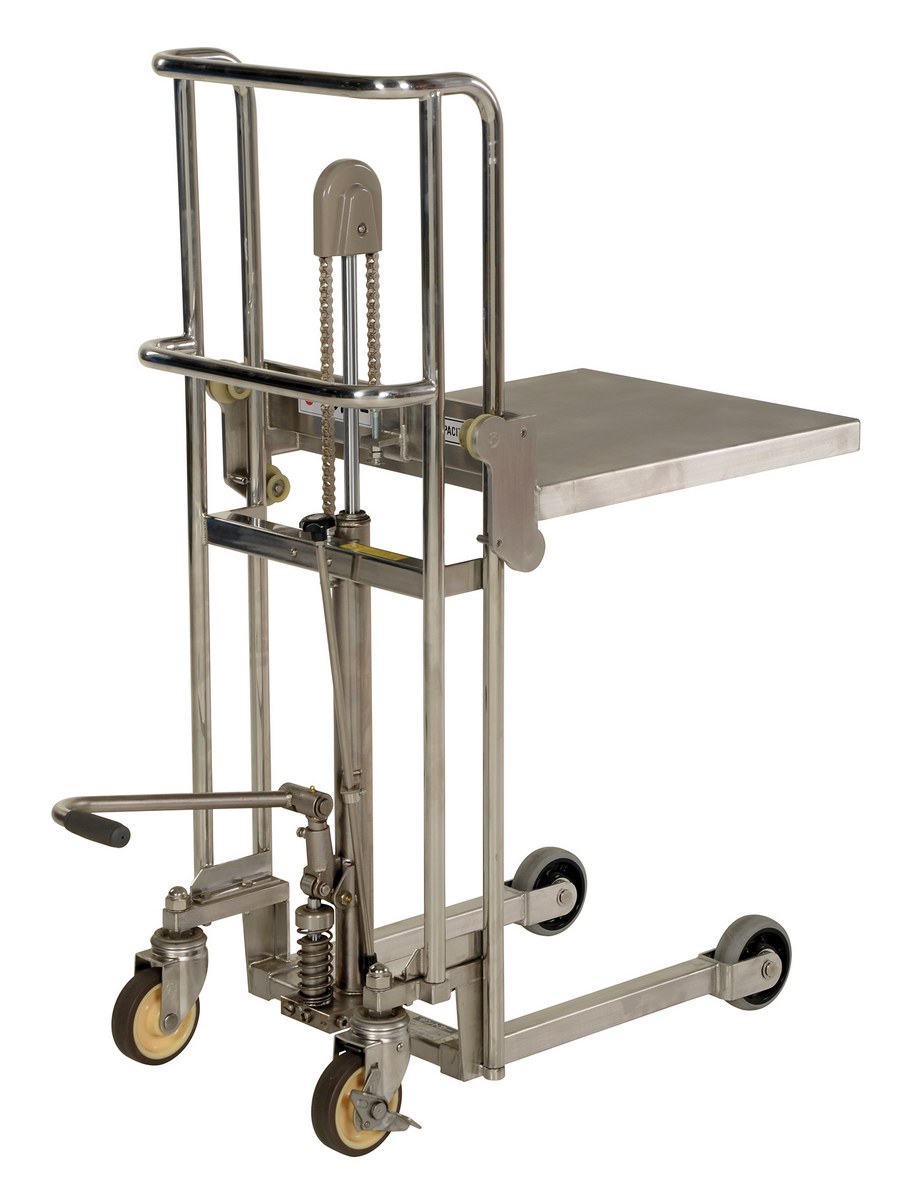

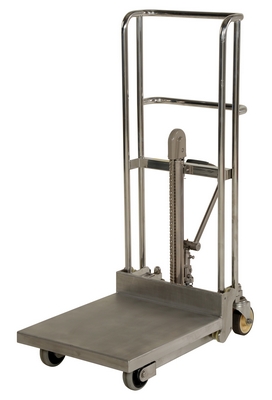

Stainless Steel Hydraulic Hefti-Lift 35-13/16 In. x 52-1/8 In. 450 Lb. Capacity Silver

The Hefti-Lift Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. Each\ fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • High handle allows user to maintain perfect posture
  • Platform is accessible from 3 sides
  • Manual function allows to obtain a precise platform height
  • Smooth surface for handling of fragile goods
Total Ship Wt.(lbs.): 236 (only 1 package) Size: 21.25"W x 35.8125"L x 52.125"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 450 Platform Width/Length (in.): 23-7/8 x 21-1/4 Service Range (in.): 6-1/4 to 45-1/4
Operation: Foot Pump Handle Height (in.): 37-3/4 Caster Quantity/Diameter/Width (in.): (2) 5 X 1-1/2 (2) 5 X 9/16
Caster Quantity/Type: (2) Rigid (2) Swivel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-5-SS
HYD-5-SS

Stainless Steel Hydraulic Hefti-Lift 35-13/16 In. x 52-1/8 In. 450 Lb. Capacity Silver

The Hefti-Lift Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. Each\ fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • High handle allows user to maintain perfect posture
  • Platform is accessible from 3 sides
  • Manual function allows to obtain a precise platform height
  • Smooth surface for handling of fragile goods
Dimensions: 21.25"W x 35.8125"L x 52.125"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215061261 GTIN: 00691215061261
Warranty: -- Shipping Weight: 236 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Japan
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 450 Platform Width/Length (in.): 23-7/8 x 21-1/4 Service Range (in.): 6-1/4 to 45-1/4
Operation: Foot Pump Handle Height (in.): 37-3/4 Caster Quantity/Diameter/Width (in.): (2) 5 X 1-1/2 (2) 5 X 9/16
Caster Quantity/Type: (2) Rigid (2) Swivel
