HYD-CB-10-DC

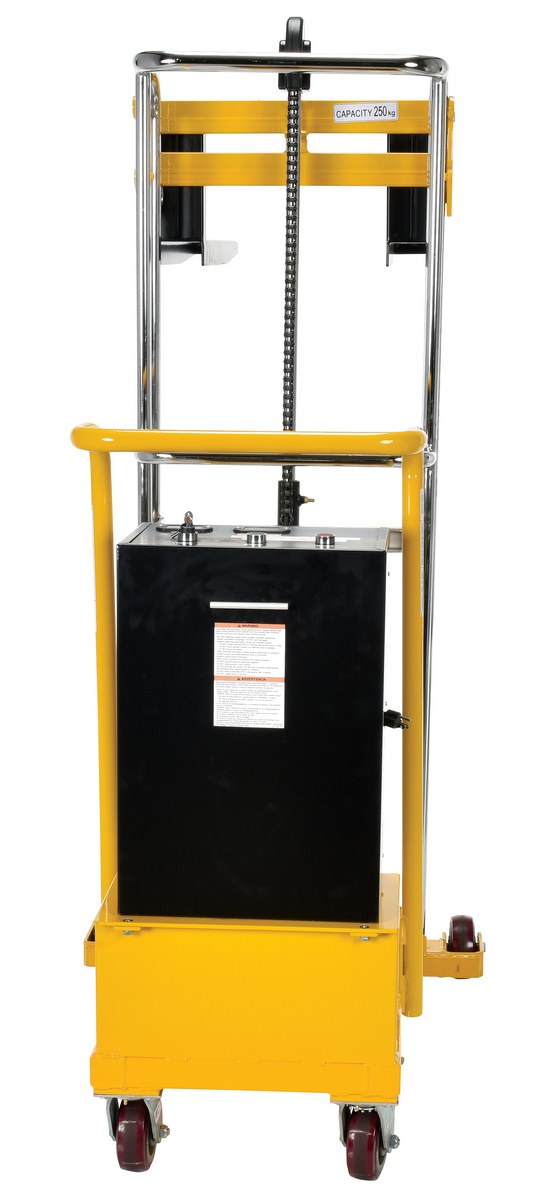

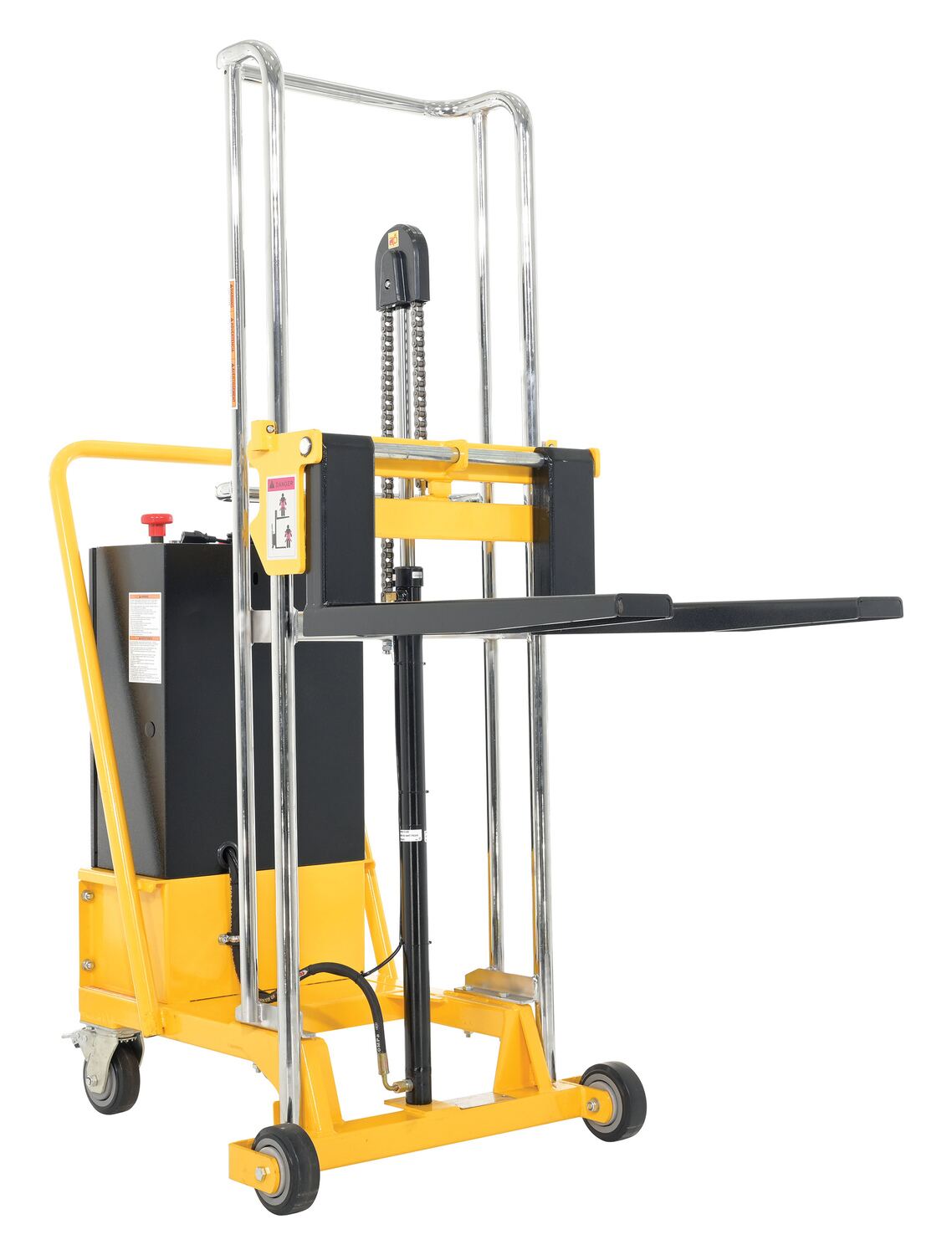

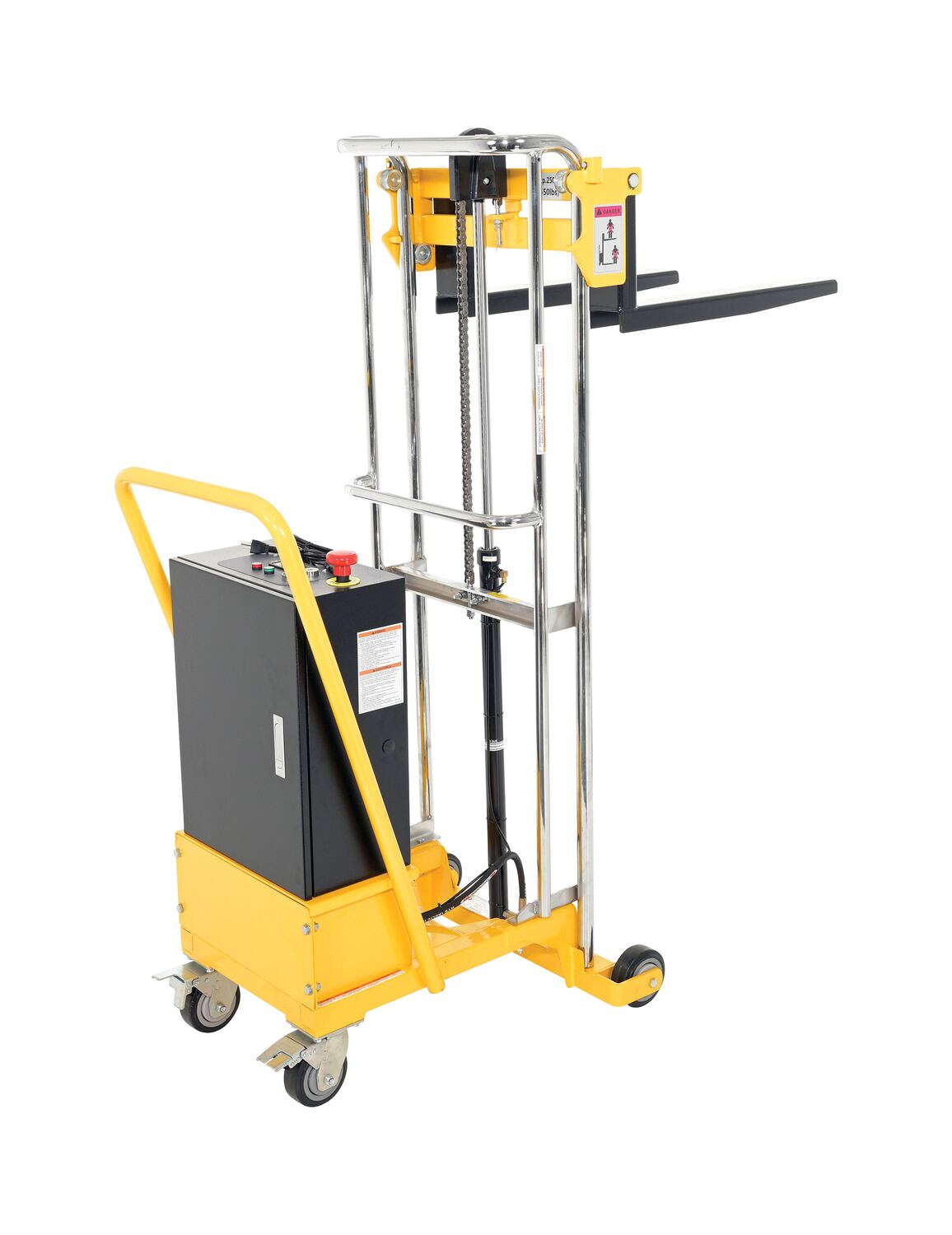

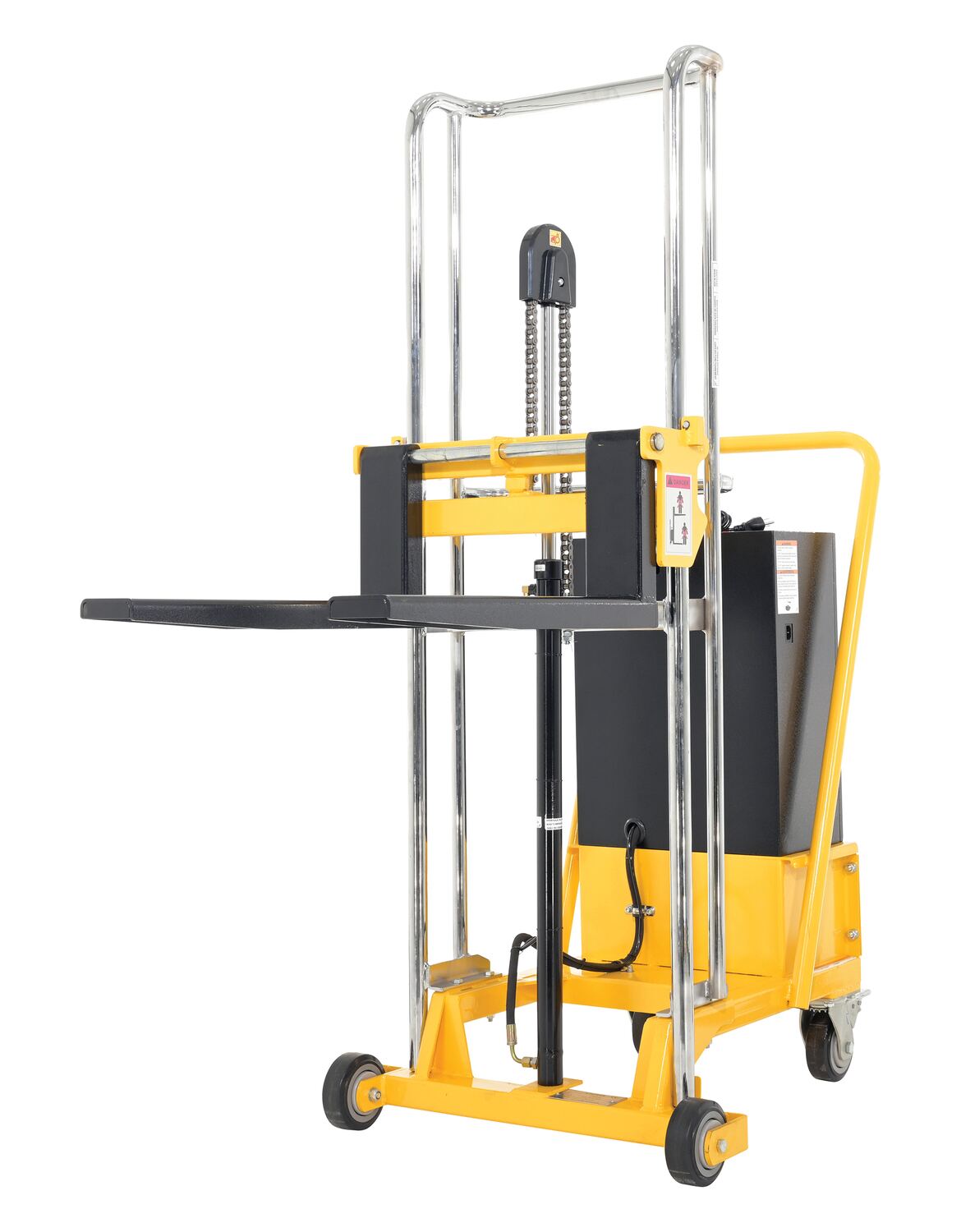

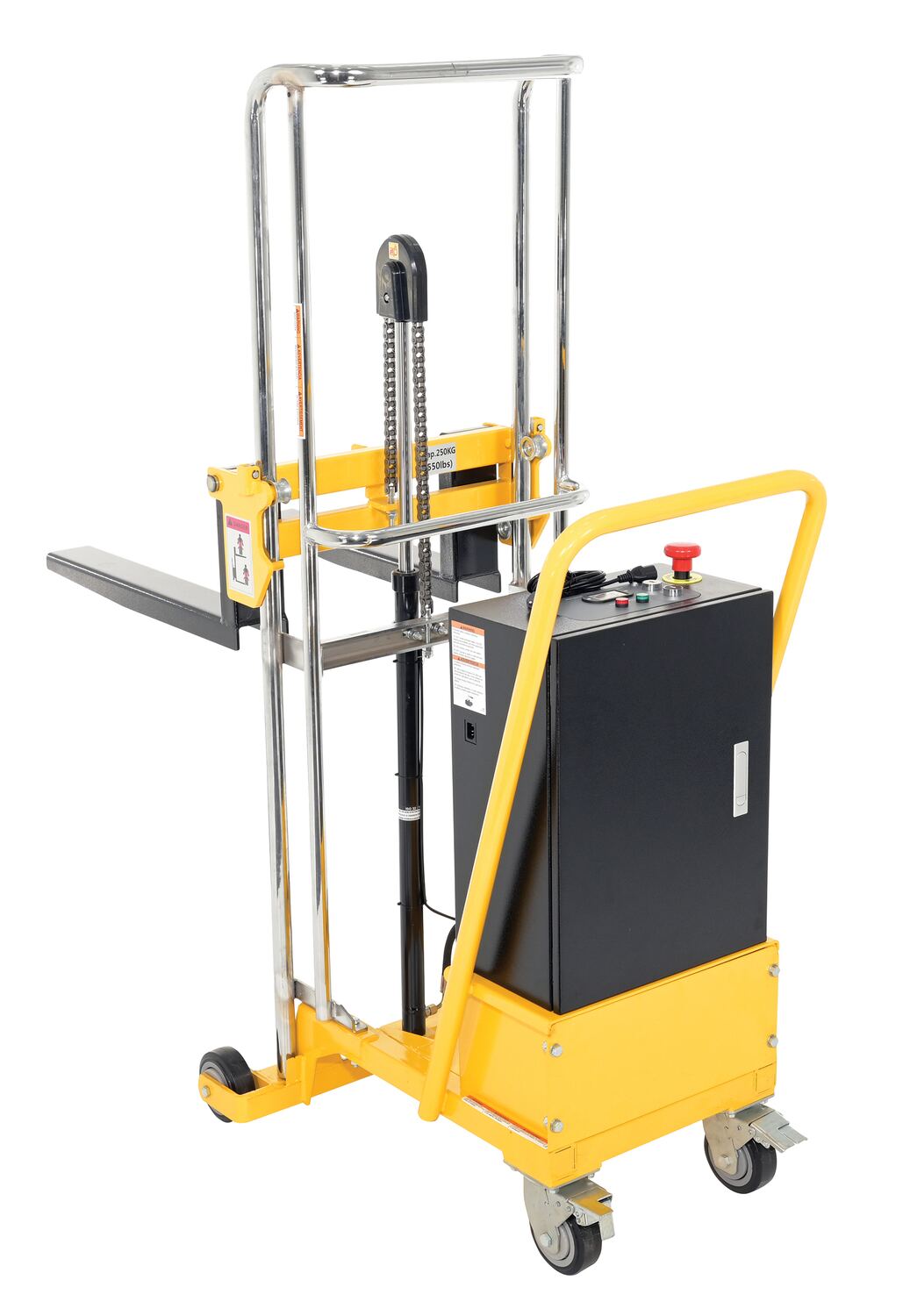

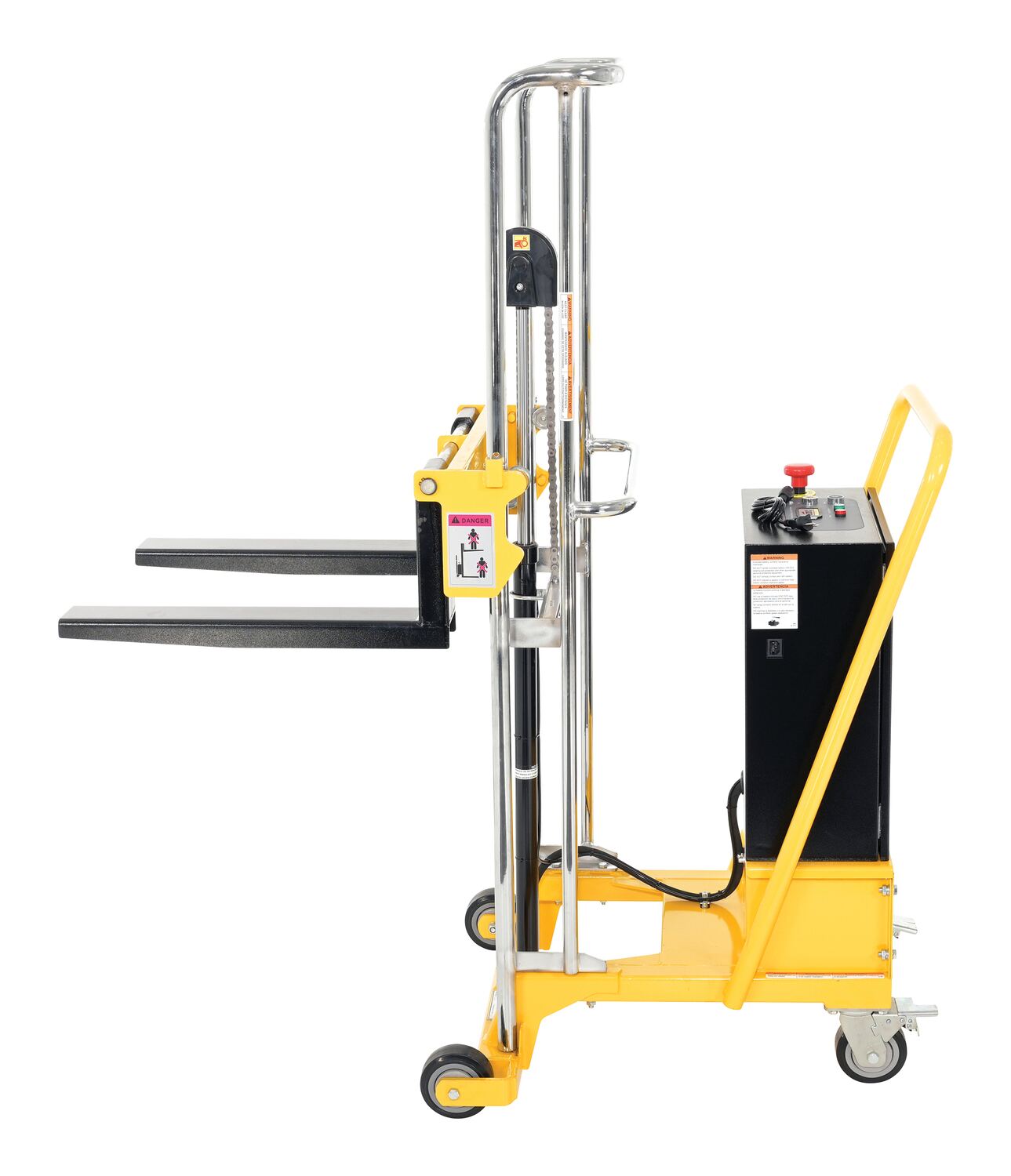

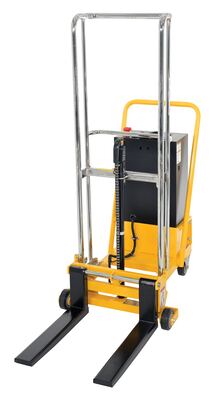

Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black

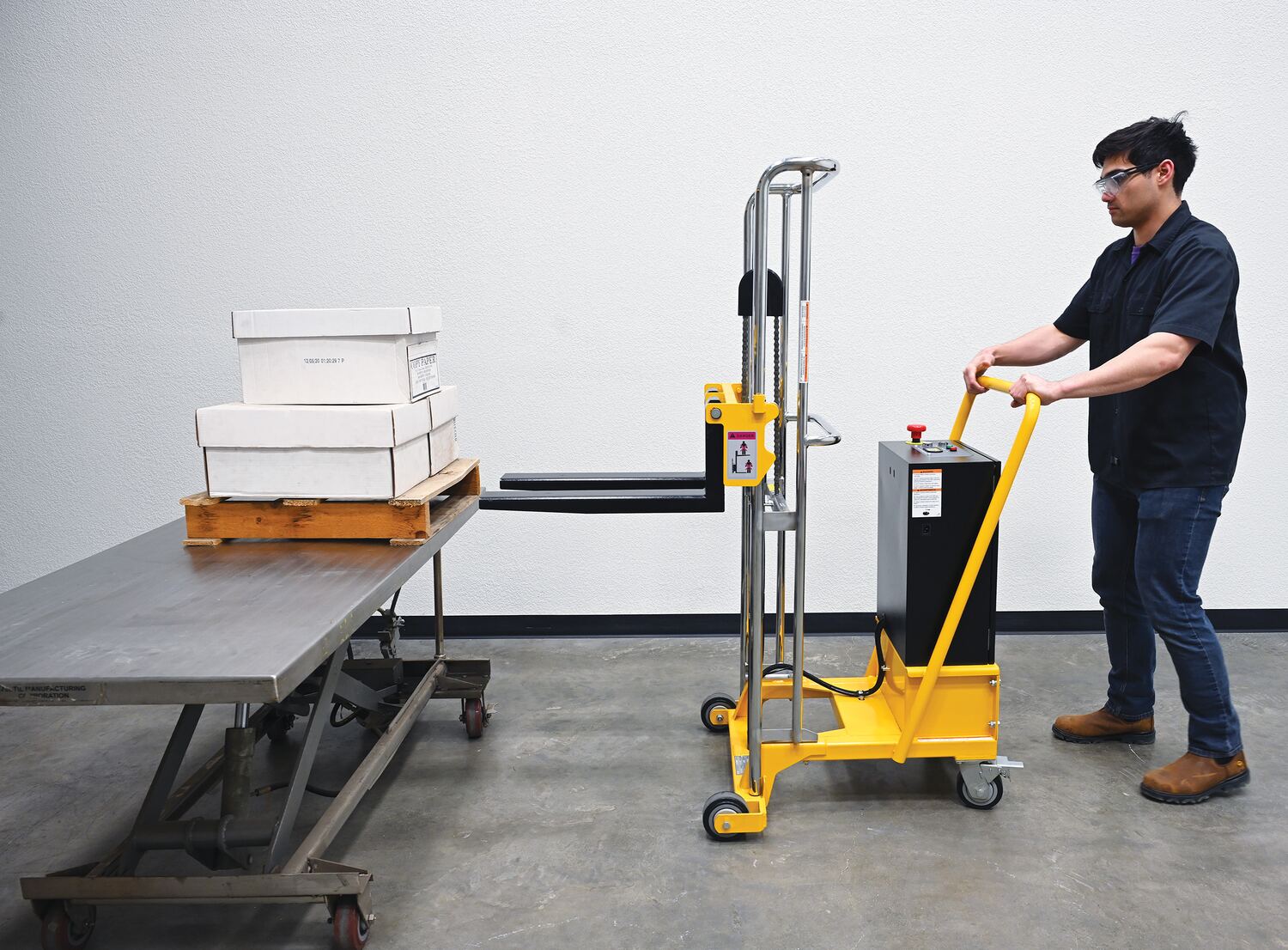

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Units roll easily on two rigid and two swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome uprights. Variety of attachments available.

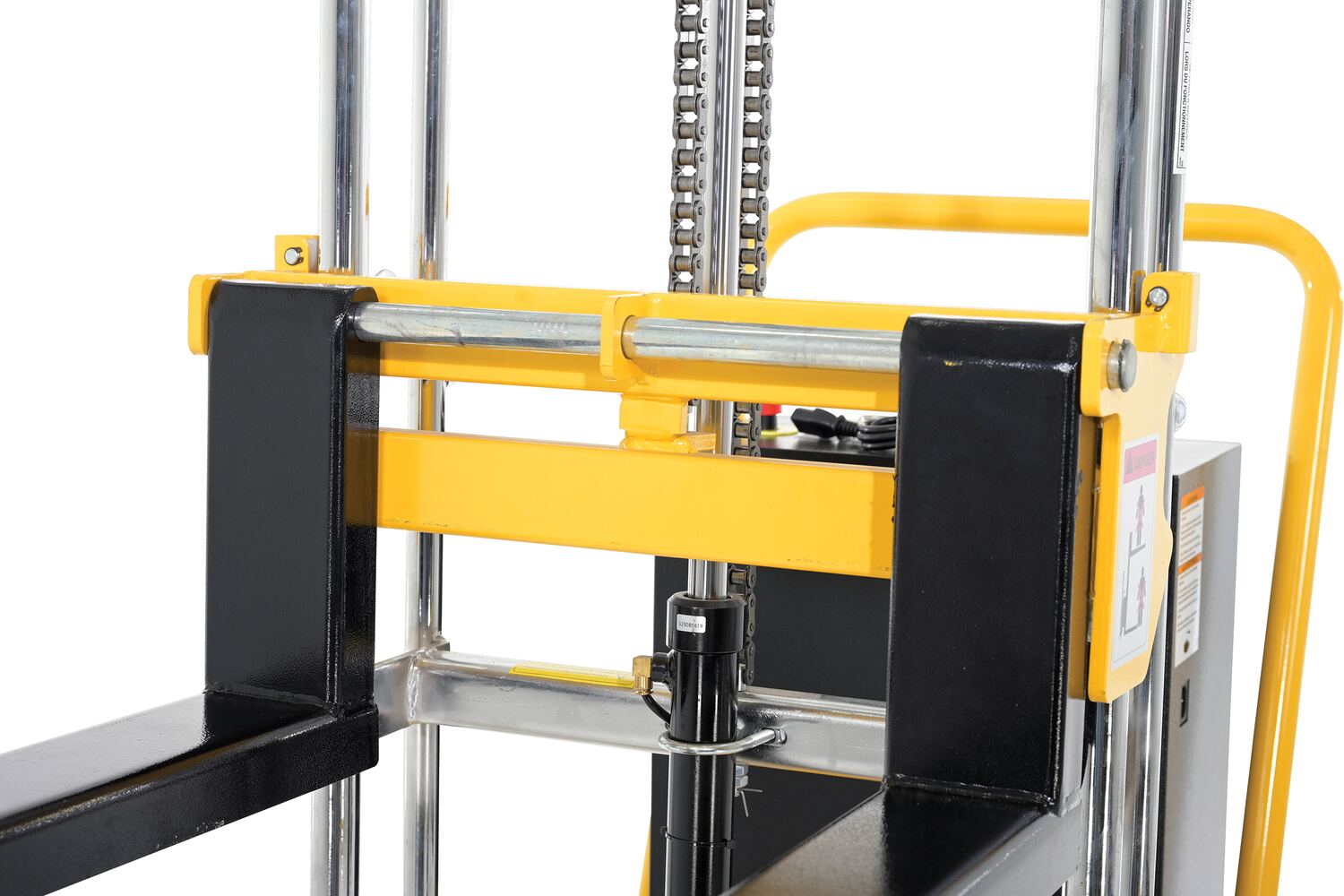

  • Non-slip chain provides accurate deck positioning

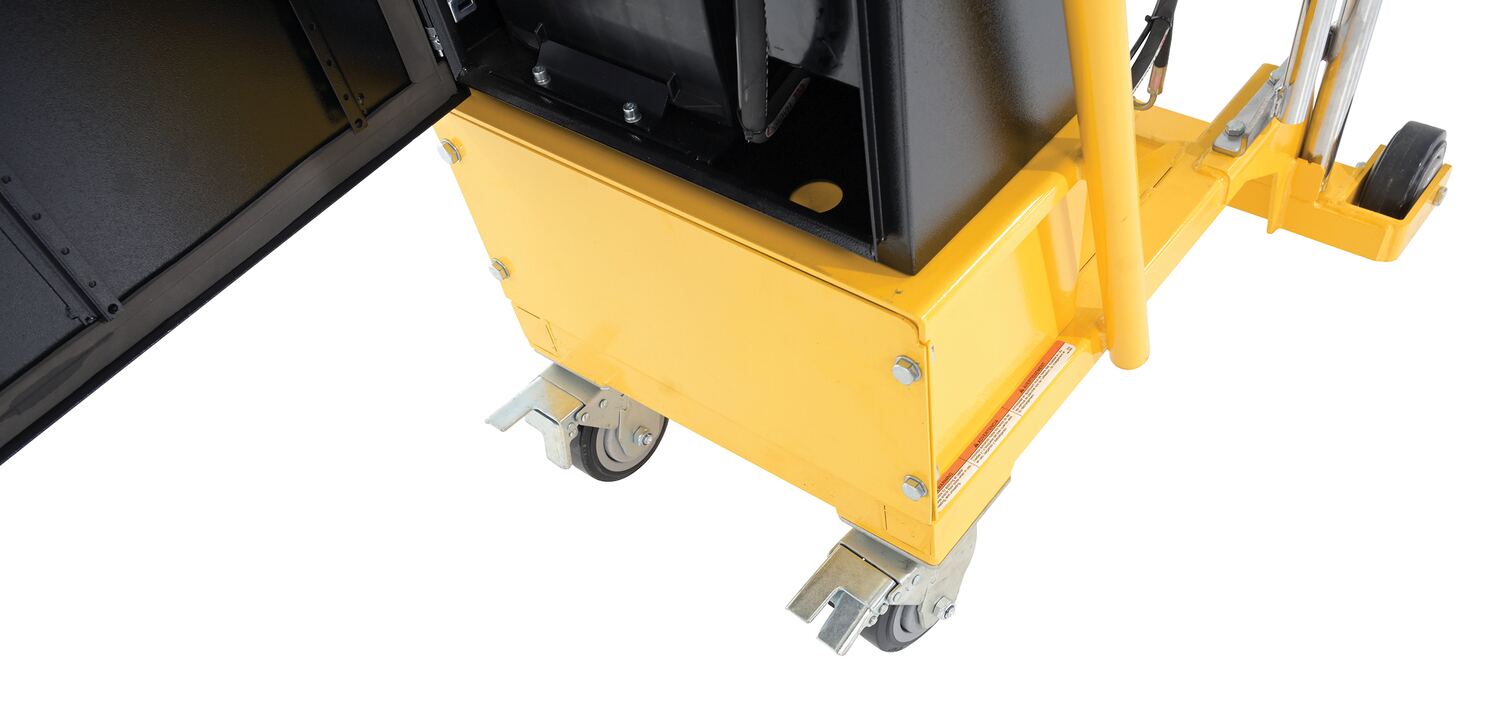

  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 555 (only 1 package) Size: 29.5"W x 59"L x 68"H Color: Yellow / Black

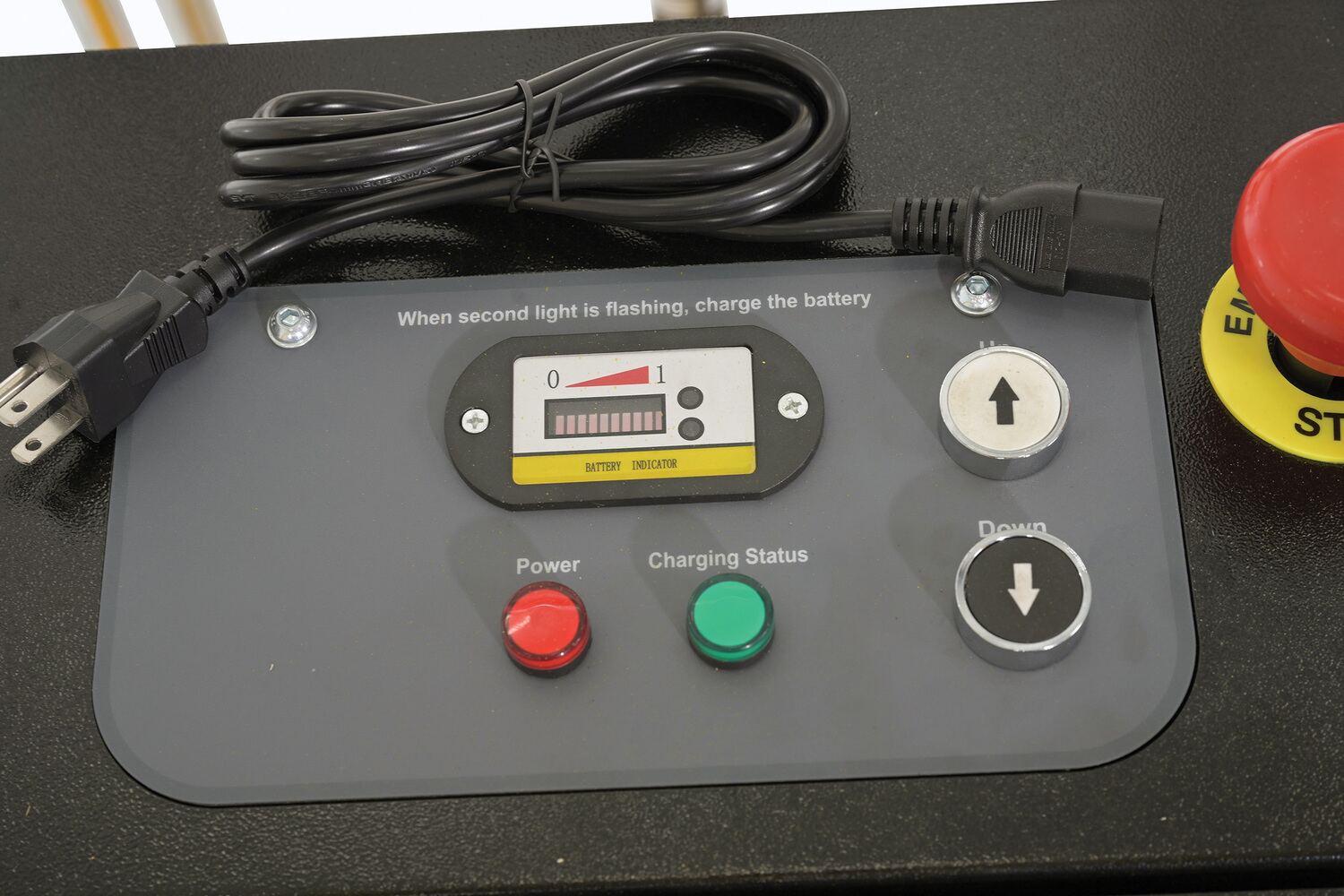

Uniform Capacity (lb.): 550 Service Range (in.): 2-3/4 to 55-1/2 Operation: (1) 12V DC

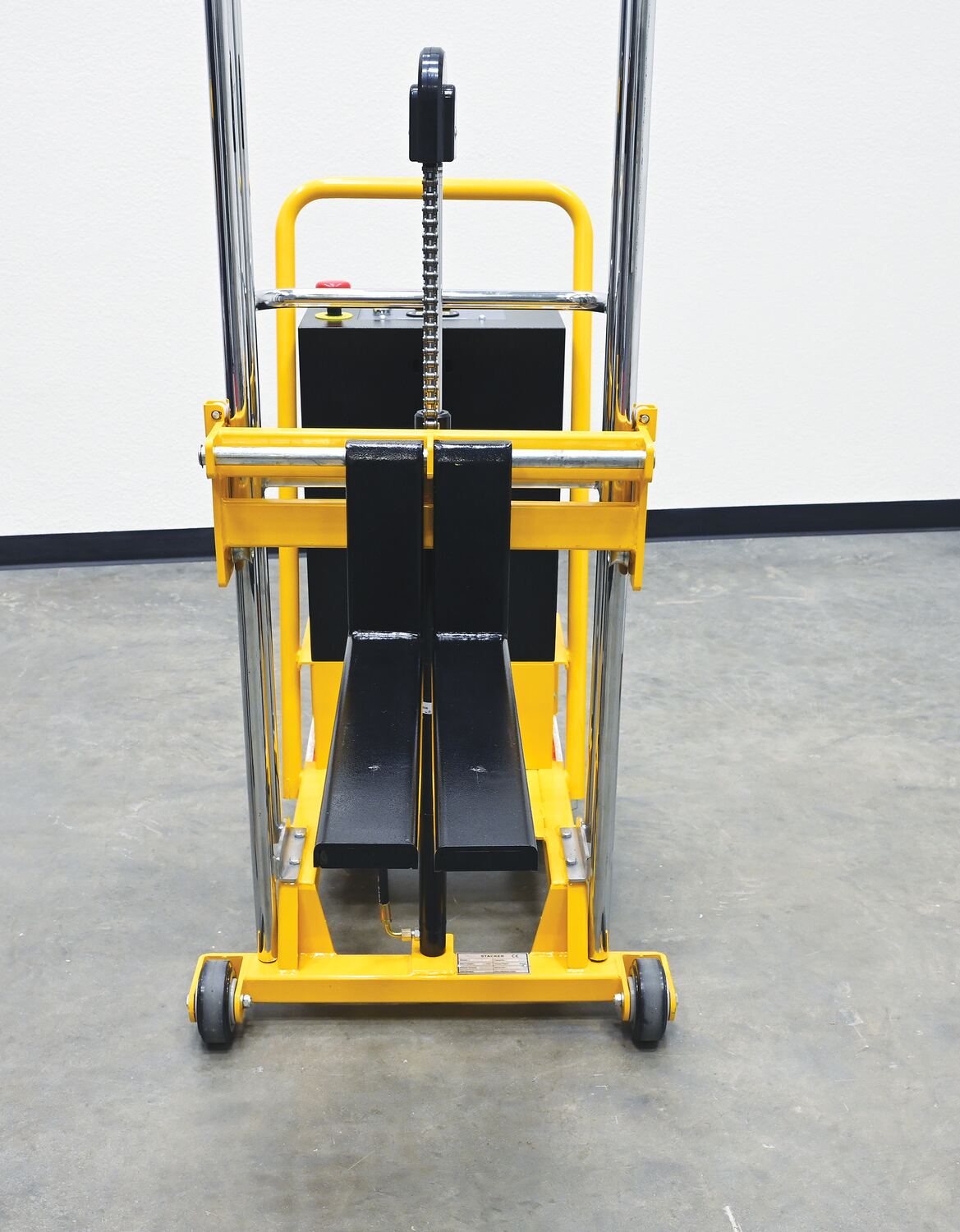

Fork Width/Height (in.): 4-1/2 x 2-1/2 Fork Length: 25-3/4 Overall Fork Width (in.): 22
Handle Height (in.): 45 Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Type: (2) Rigid, (2) Swivel with Brake
Caster Material: Poly-On-Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-CB-10-DC
HYD-CB-10-DC

Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Units roll easily on two rigid and two swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome uprights. Variety of attachments available.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Welded steel construction provides long lasting rugged use
Dimensions: 29.5"W x 59"L x 68"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215113168 GTIN: 00691215113168
Warranty: -- Shipping Weight: 555 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 550 Service Range (in.): 2-3/4 to 55-1/2 Operation: (1) 12V DC
Fork Width/Height (in.): 4-1/2 x 2-1/2 Fork Length: 25-3/4 Overall Fork Width (in.): 22
Handle Height (in.): 45 Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Type: (2) Rigid, (2) Swivel with Brake
Caster Material: Poly-On-Steel
