Model Details

HYD-ROLL-16

Printer Friendly
HYD-ROLL-16

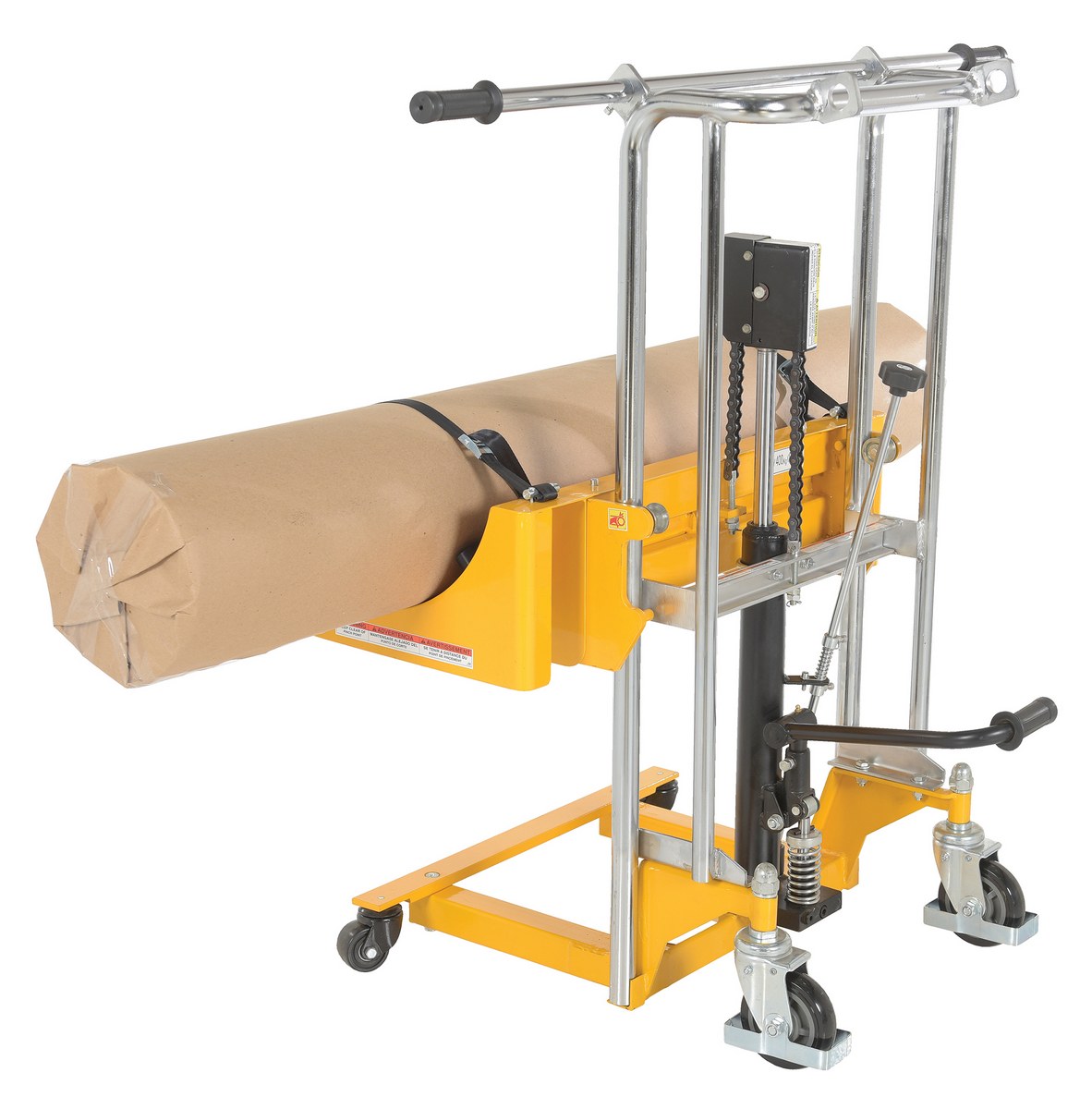

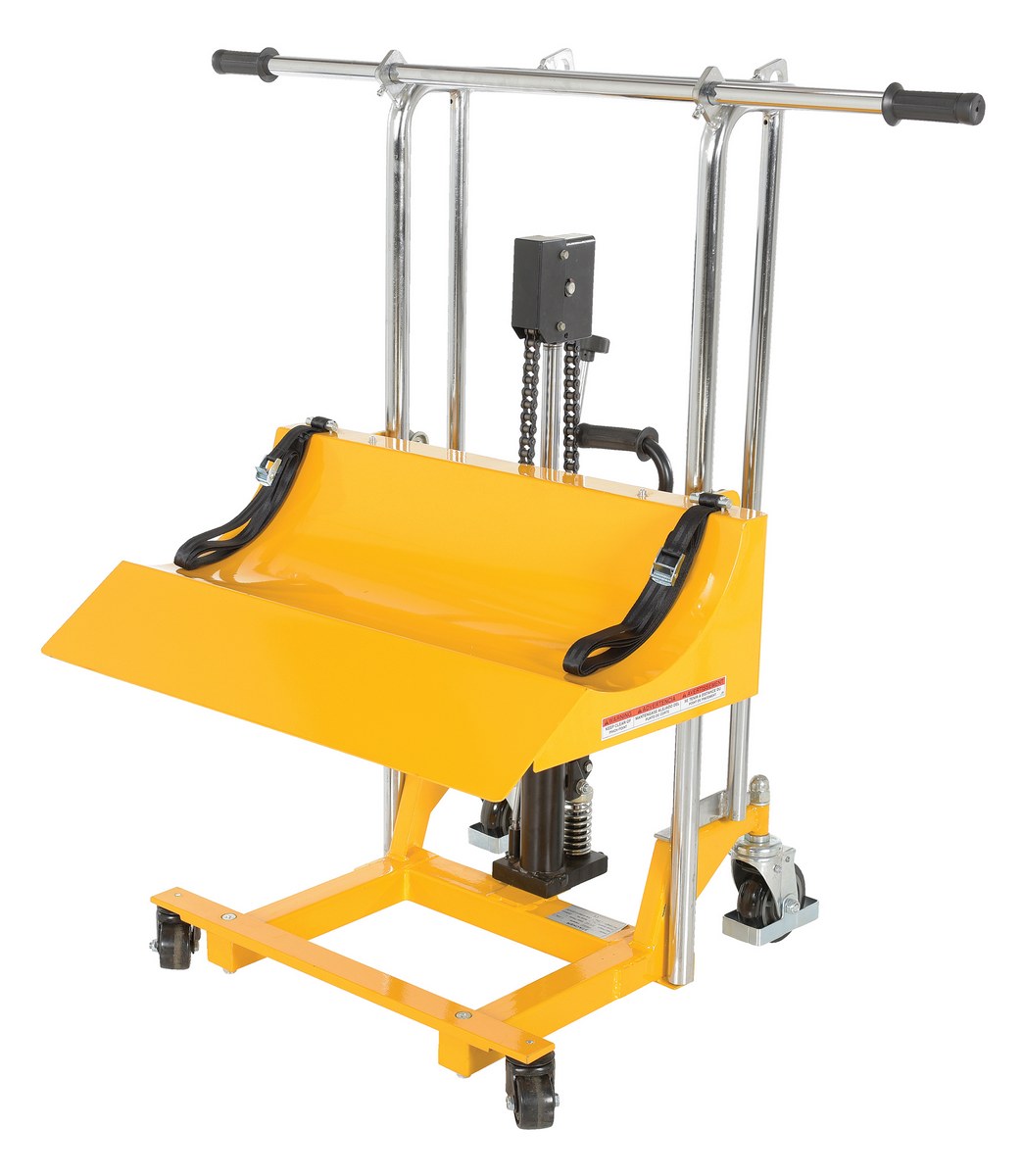

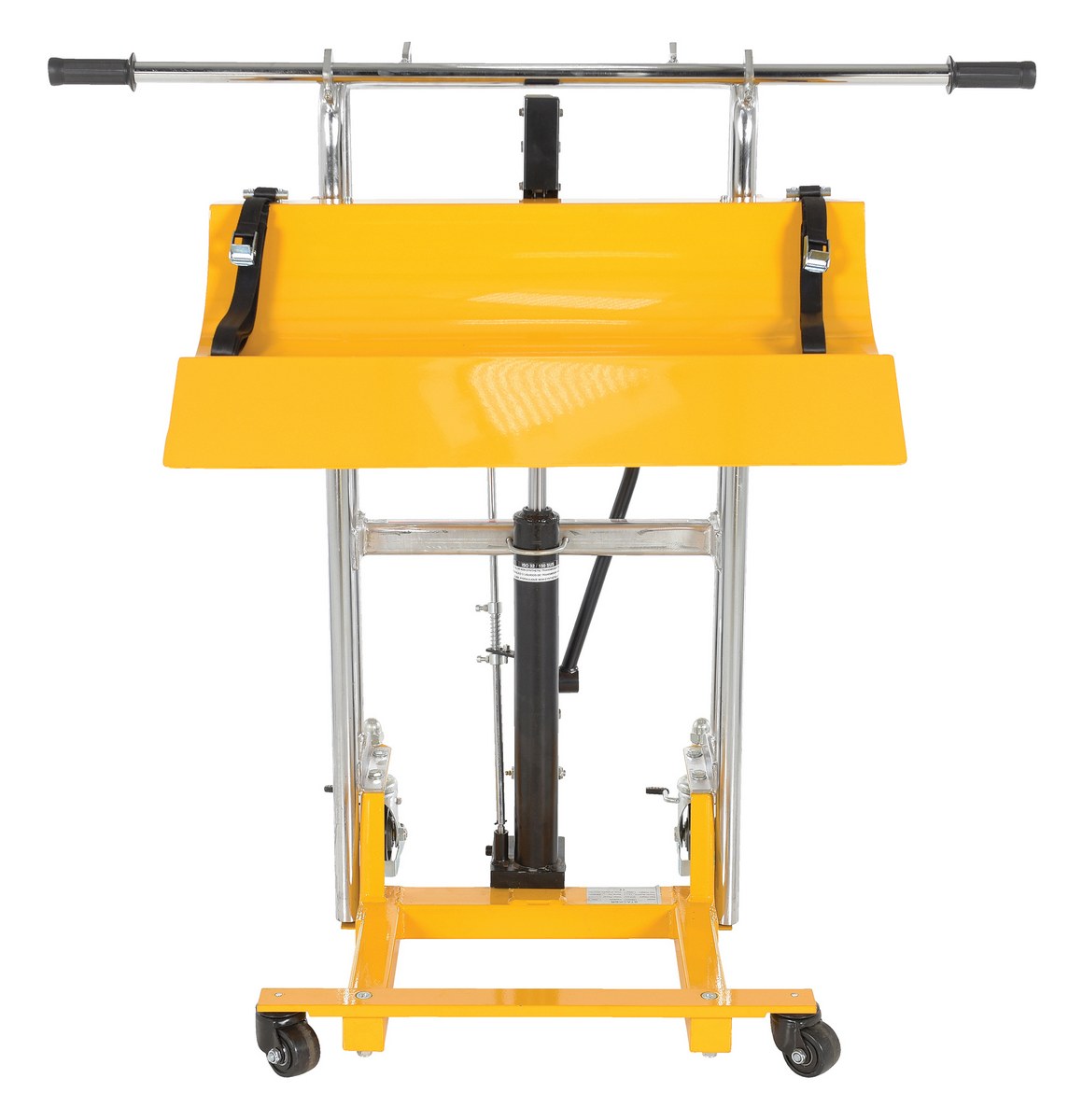

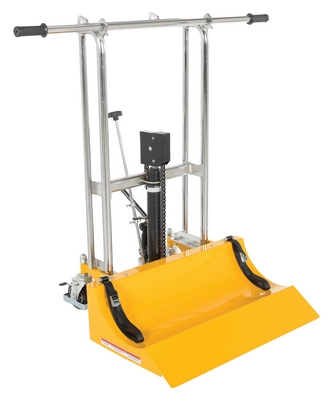

Steel Roll Lifter Transporter 15-3/4 In. Roll Diameter 880 Lb. Capacity Yellow

Roll lifter and transporters allow single users to maneuver heavy duty rolls onto the lifter and then directly on the printer feeder. Extended nylon strap provide leverage to help guide the roll into the trough and ensure materials are secured for transport. Concave trough design of the media tray stabilizes rolls for transit. Foot pump allows for smooth effortless lifting. Maximum roll diameter is 15-3/4".

  • Smooth surface for manageable handling
  • Bright yellow finish for clear visibility
  • Lifter enables an ergonomic position during transport
  • Lifter rolls smoothly on swivel casters

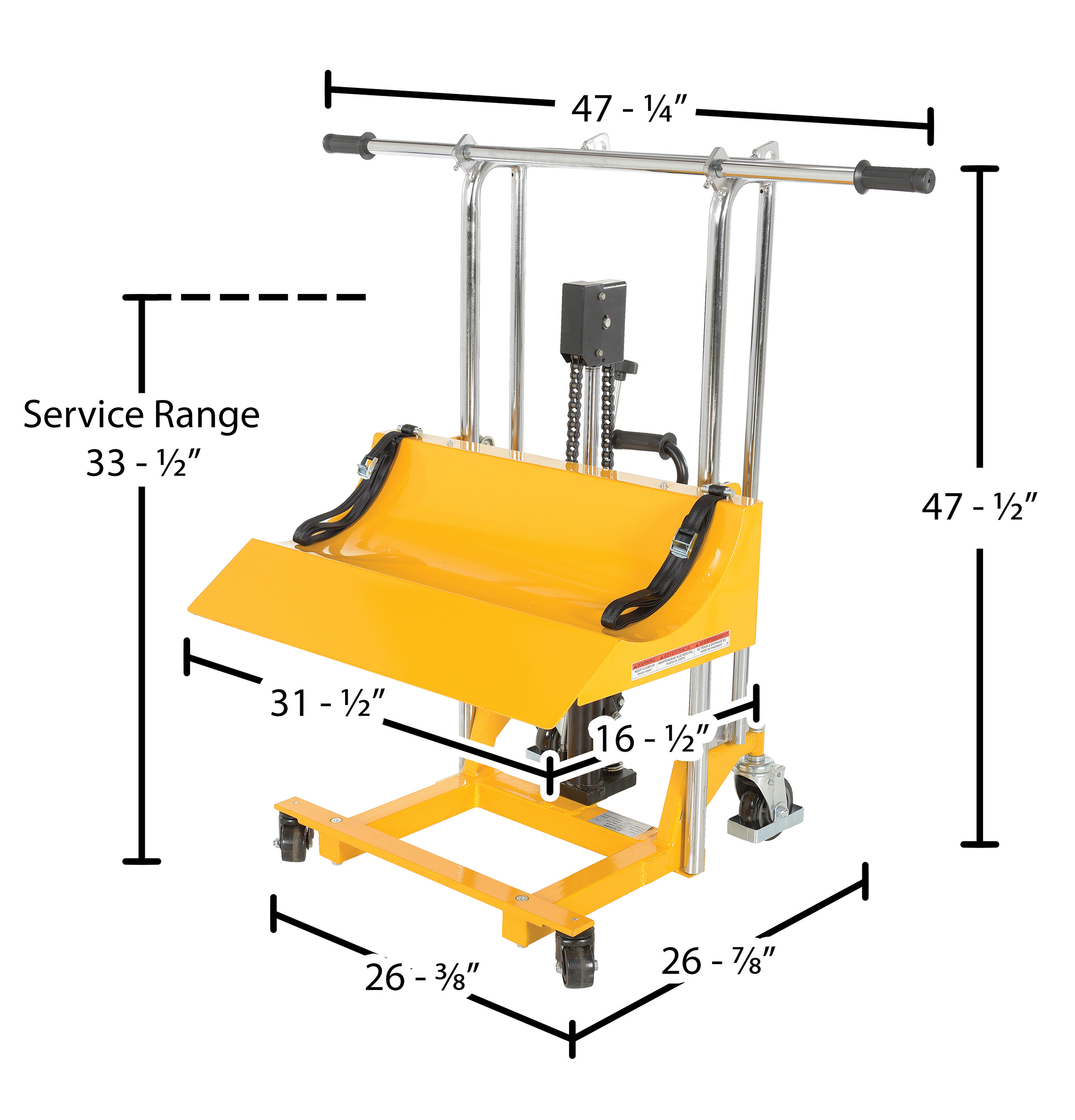

Total Ship Wt.(lbs.): 190 (only 1 package) Size: 47.25"W x 26.875"L x 47.5"H Color: Yellow

Uniform Capacity (lb.): 880 Maximum Roll Diameter (in.): 15-3/4 Tray Width (in.): 31-1/2
Maximum Roll Width (in.): 98 Service Range (in.): 4 to 33-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-ROLL-16
HYD-ROLL-16

Steel Roll Lifter Transporter 15-3/4 In. Roll Diameter 880 Lb. Capacity Yellow

Roll lifter and transporters allow single users to maneuver heavy duty rolls onto the lifter and then directly on the printer feeder. Extended nylon strap provide leverage to help guide the roll into the trough and ensure materials are secured for transport. Concave trough design of the media tray stabilizes rolls for transit. Foot pump allows for smooth effortless lifting. Maximum roll diameter is 15-3/4".

  • Smooth surface for manageable handling
  • Bright yellow finish for clear visibility
  • Lifter enables an ergonomic position during transport
  • Lifter rolls smoothly on swivel casters
Dimensions: 47.25"W x 26.875"L x 47.5"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215117067 GTIN: 00691215117067
Warranty: -- Shipping Weight: 190 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 880 Maximum Roll Diameter (in.): 15-3/4 Tray Width (in.): 31-1/2
Maximum Roll Width (in.): 98 Service Range (in.): 4 to 33-1/2
