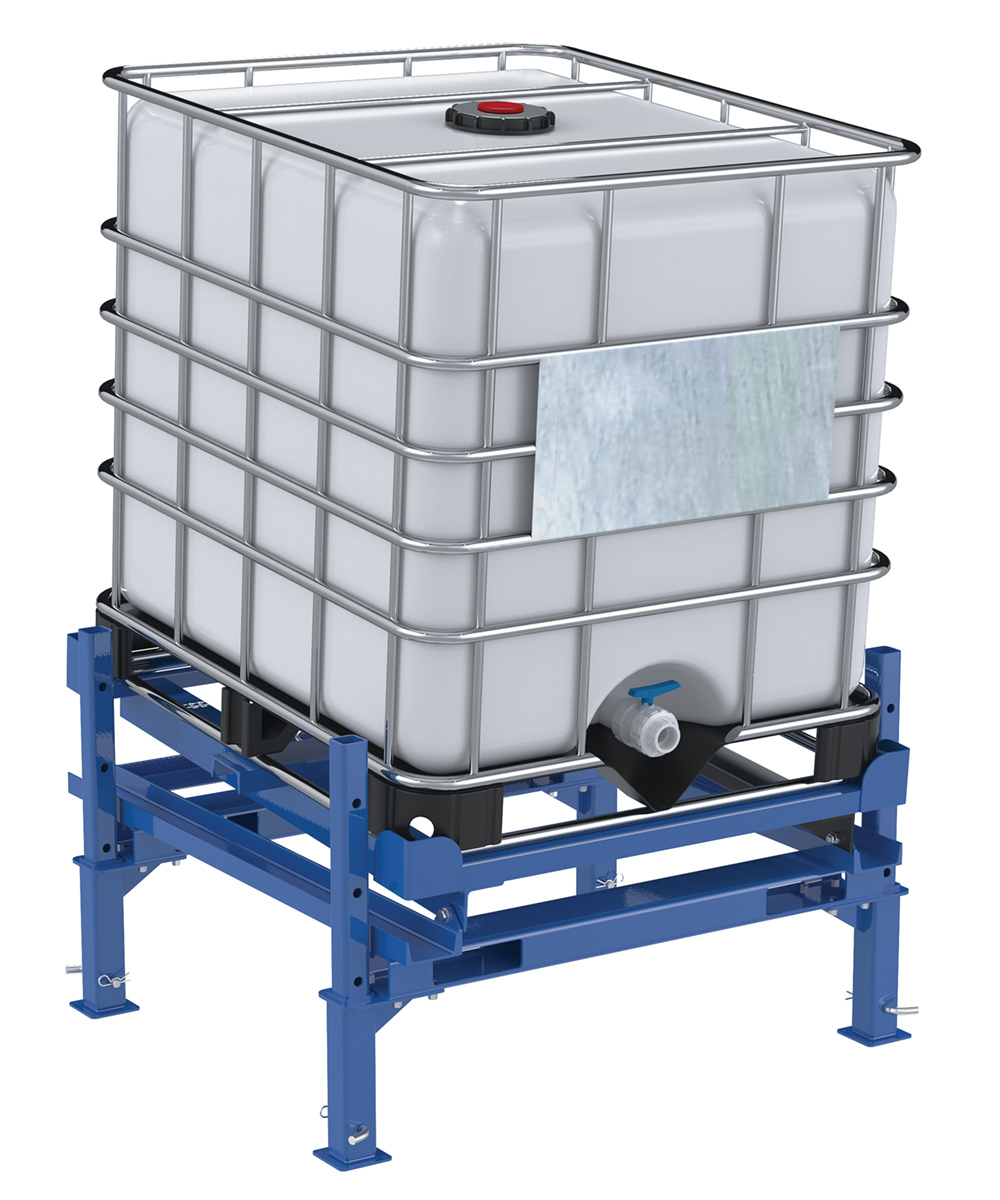

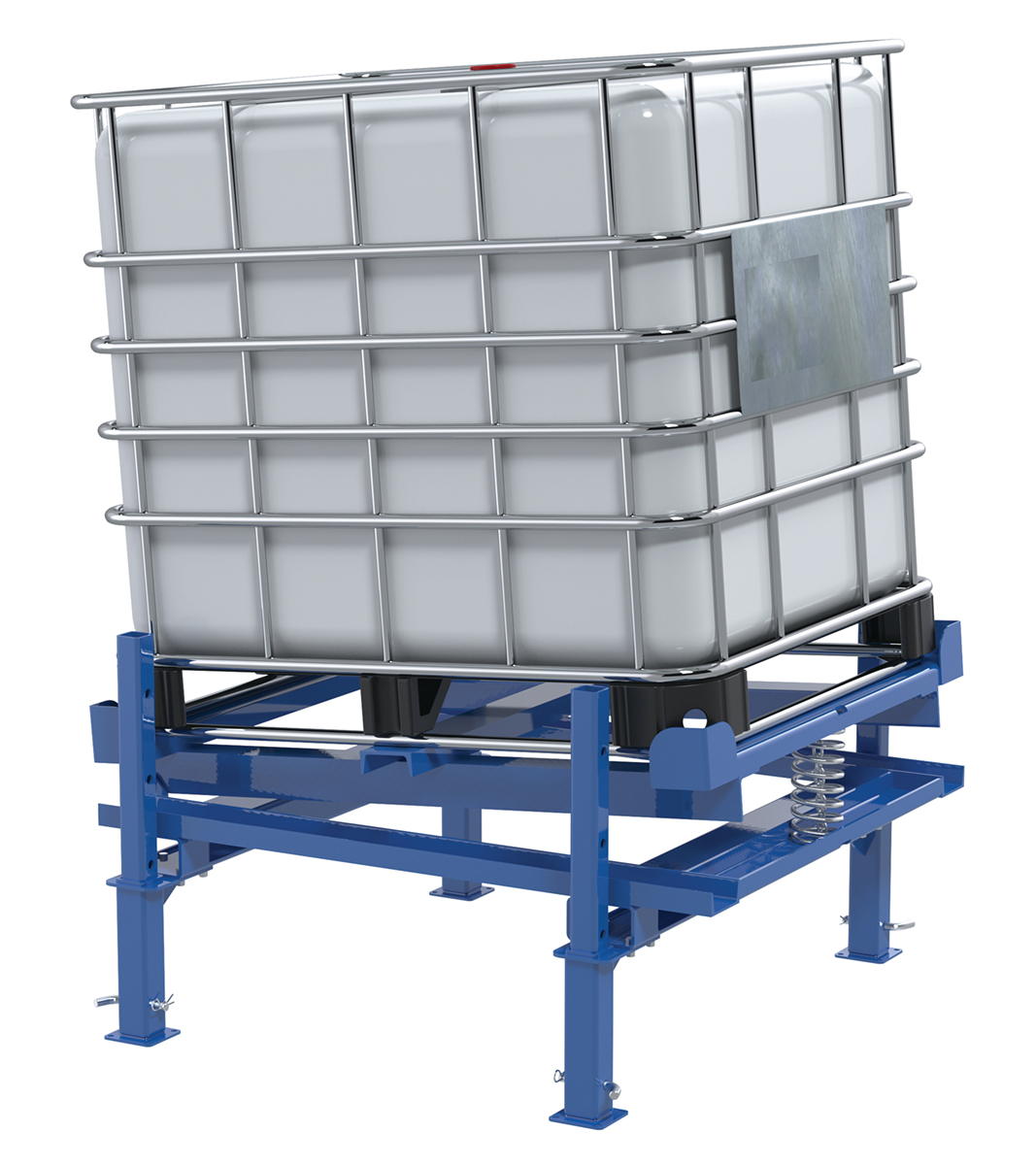

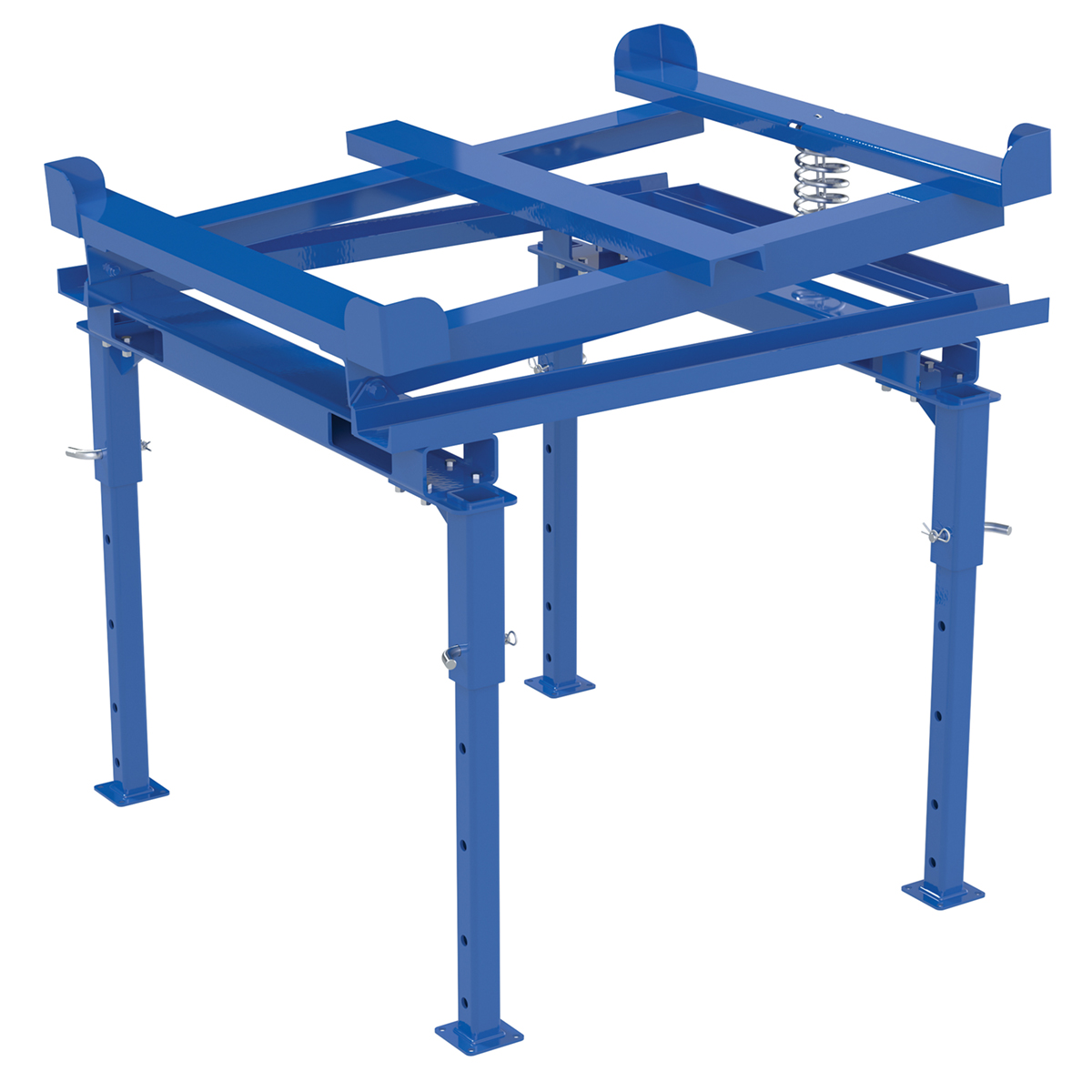

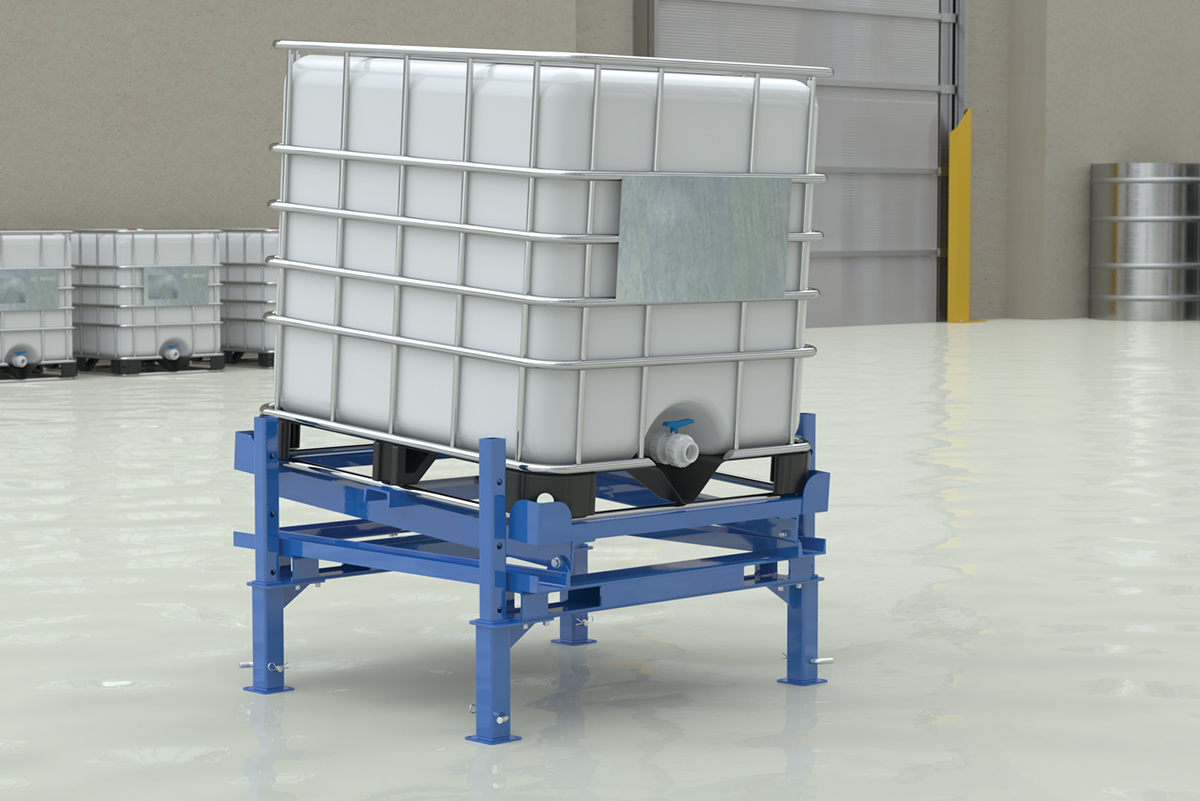

An intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.

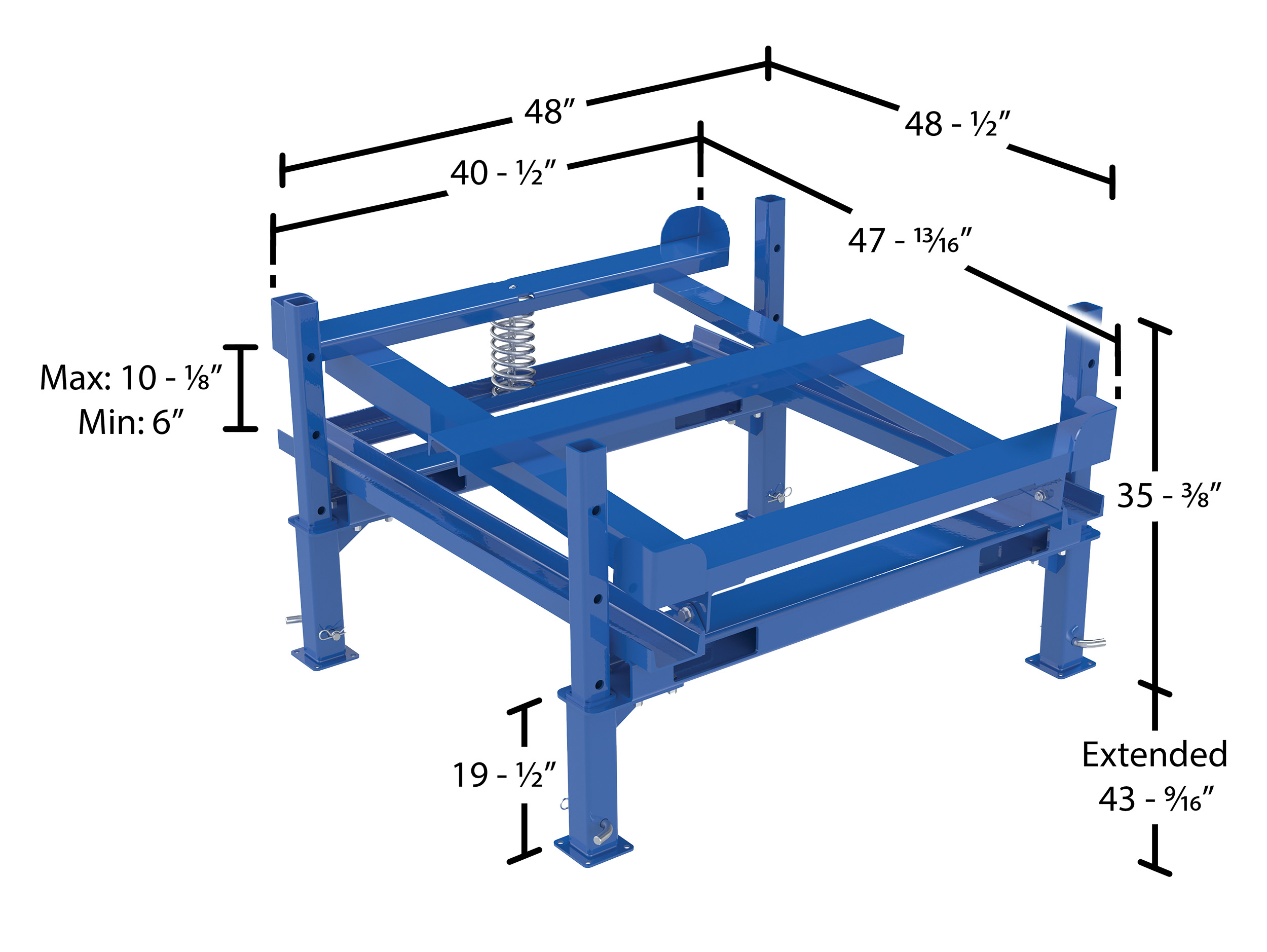

| Uniform Capacity (lb.): 4400 | Fork Pocket (in.) WxH: 7 x 2 | Fork Pocket Center (in.): 27 |
| Overall Depth (in.): 48.5 | Overall Width (in.): 48 | Useable Depth (in.): 47.75 |
| Useable Width (in.): 40.5 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?
Details For Model: IBC-TLT-FPL |
||||||||||||||||||||||||
|

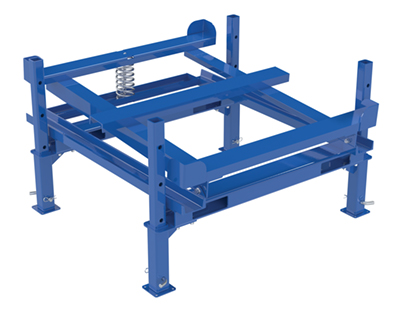

Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 48-1/2 In. x 49-1/2 In. 4400 Lb. Capacity BlueAn intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.
|
|||||||||||||||||||||||
|
||||||||||||||||||||||||
