Model Details

IBC-TLT-FPL-SS

IBC-TLT-FPL-SS

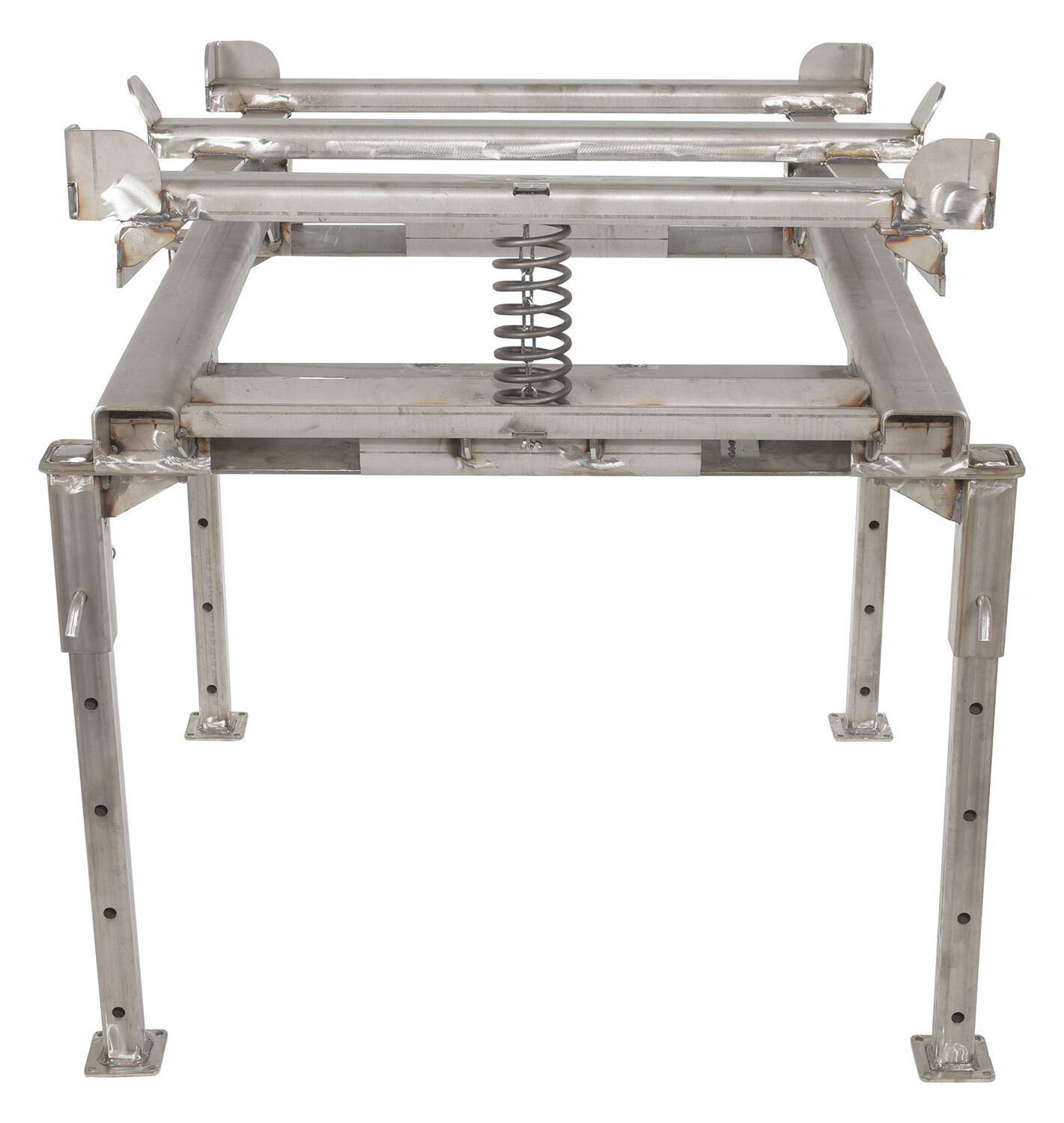

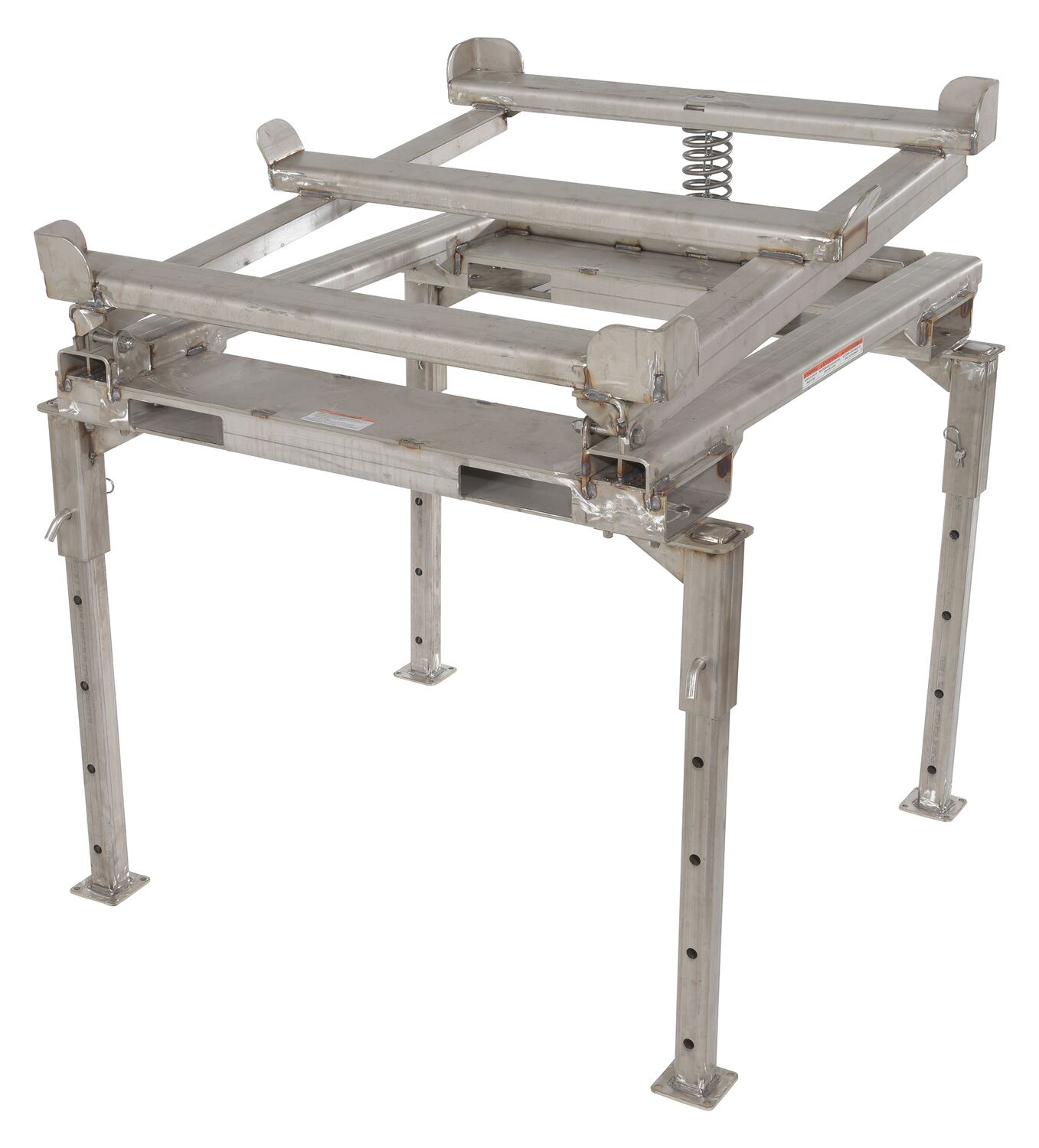

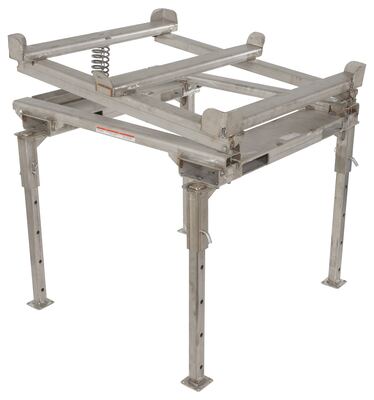

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

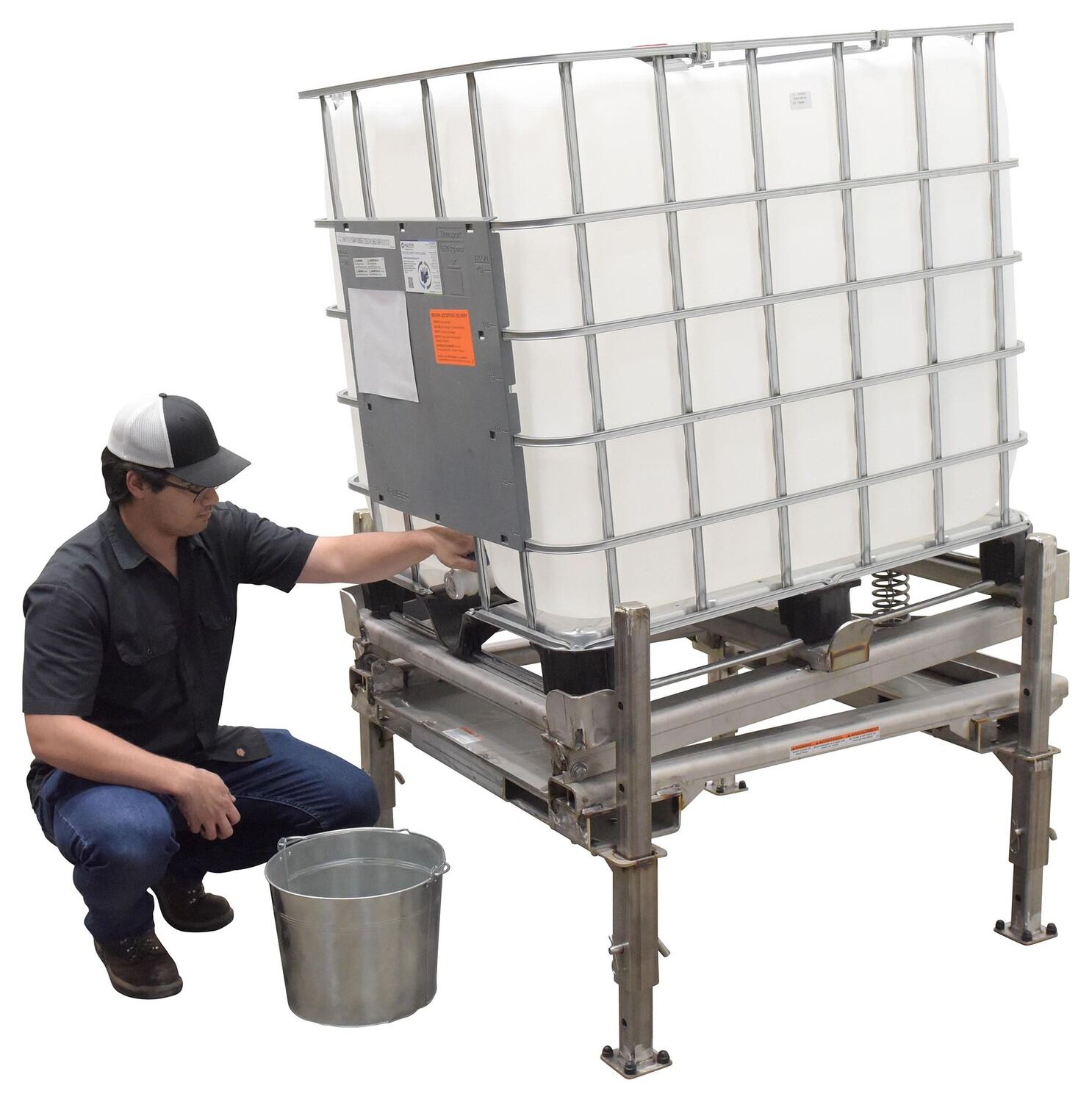

An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.

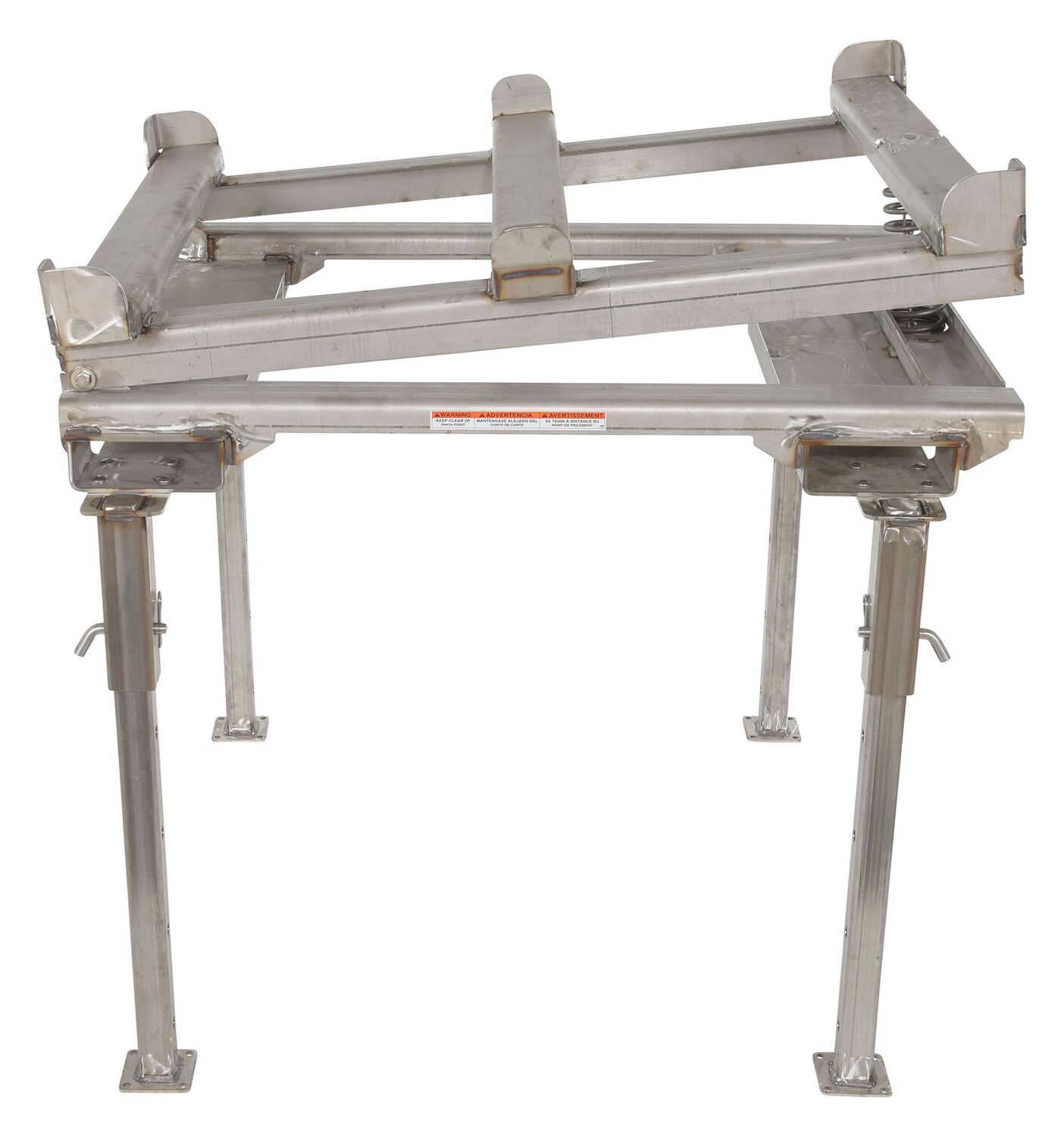

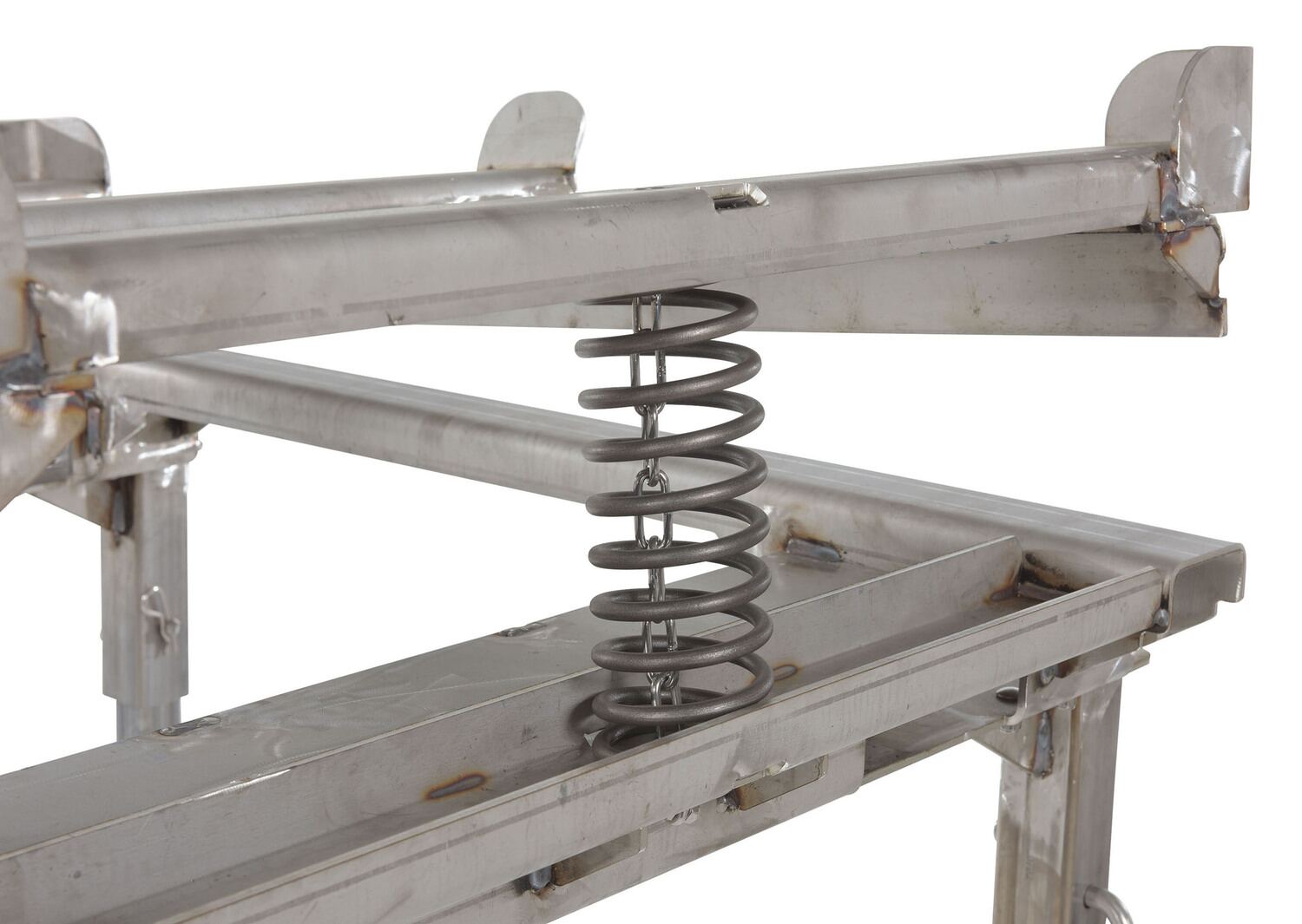

  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes
Total Ship Wt.(lbs.): 436 (only 1 package) Size: 48"W x 49.5"L x 35.25"H Color: Silver

Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 Fork Pocket Center (in.): 23
Lowered Height (In.): 20-1/8 Raised Height (In.): 48-1/8 Overall Depth (in.): 49-3/4
Overall Width (in.): 48 Useable Depth (in.): 48-1/2 Useable Width (in.): 40-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: IBC-TLT-FPL-SS


IBC-TLT-FPL-SS

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.

  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes
Dimensions: 48"W x 49.5"L x 35.25"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215372121 GTIN: 00691215372121
Warranty: -- Shipping Weight: 436 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 Fork Pocket Center (in.): 23
Lowered Height (In.): 20-1/8 Raised Height (In.): 48-1/8 Overall Depth (in.): 49-3/4
Overall Width (in.): 48 Useable Depth (in.): 48-1/2 Useable Width (in.): 40-1/2
