Model Details

ICRF-30-W

Printer Friendly

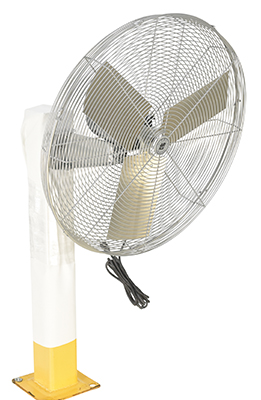

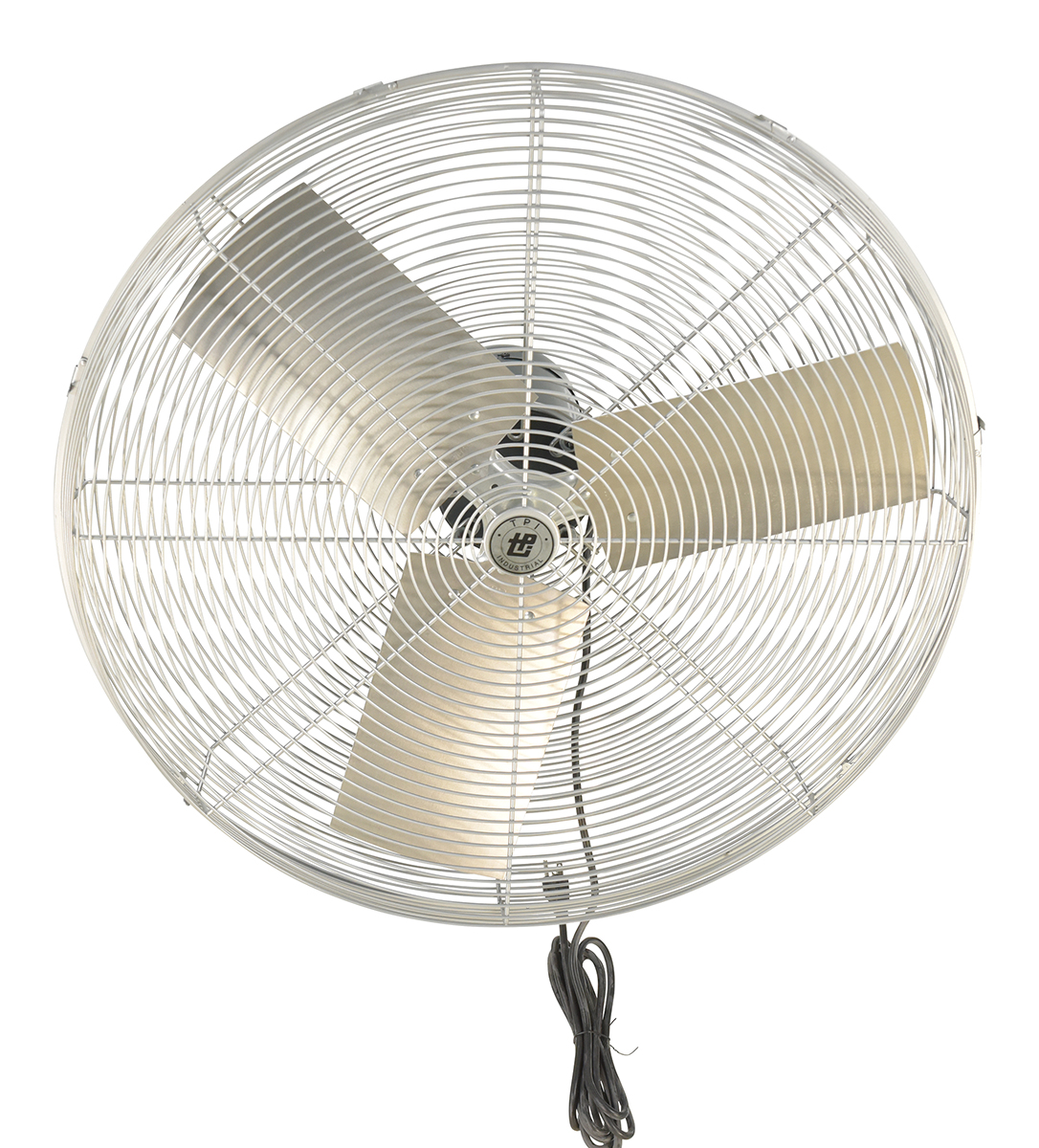

Steel Wall Circulatory Fan 27 In. Height Silver

The two speed, ball bearing, industrial duty circulatory fan. Totally enclosed and permanently lubricated. 1/4 HP electric motor.

12' cord length
Pull chain switch
Meets OSHA standards and is et C/US listed
SJT type 3 conductor cord type

Total Ship Wt.(lbs.): 48 (only 1 package) Size: 27"W x 14.5"L x 27"H Color: Silver

Cord Length (in.): 144	Conductor Cord: SJT type 3	Electric Motor Horsepower: 1/4
Blade Diameter (in.): 30	Mounting Style: Wall	Amps High: 2.7
CFM High: 7900	CFM Low: 6000	Voltage/Phase: 115V/1PH
OSHA: 1910.212(a)(5)	Lowered Height (in.): 72	Raised Height (in.): 108

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: ICRF-30-W

Steel Wall Circulatory Fan 27 In. Height Silver

The two speed, ball bearing, industrial duty circulatory fan. Totally enclosed and permanently lubricated. 1/4 HP electric motor.

12' cord length
Pull chain switch
Meets OSHA standards and is et C/US listed
SJT type 3 conductor cord type

Dimensions: 27"W x 14.5"L x 27"H	Sell UOM: EA-Each	Color: Silver
Material: Steel	UPC: 691215024556	GTIN: 00691215024556
Warranty: --	Shipping Weight: 48	Quickship Item? --
Can It Ship UPS? --	Option? N	Origin: United States
Assembly: Assembled	Packaging: BASE_UNIT_OR_EACH	Drawing Required? N
Cord Length (in.): 144	Conductor Cord: SJT type 3	Electric Motor Horsepower: 1/4
Blade Diameter (in.): 30	Mounting Style: Wall	Amps High: 2.7
CFM High: 7900	CFM Low: 6000	Voltage/Phase: 115V/1PH
OSHA: 1910.212(a)(5)	Lowered Height (in.): 72	Raised Height (in.): 108
