Model Details

JIB-CB-50-10-10-BC

Printer Friendly
JIB-CB-50-10-10-BC

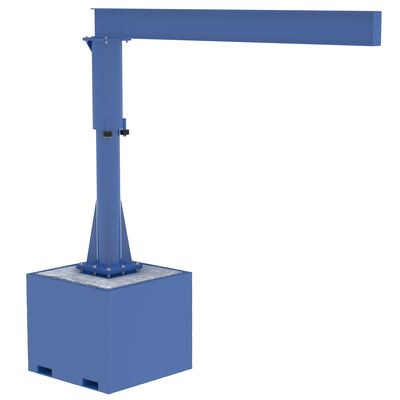

Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Total Ship Wt.(lbs.): 5782 (Multiple Packages: P1: 562 lbs + P2: 5220 lbs) Size: 42.1875"W x 135.125"L x 130.25"H Color: Blue

Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 Usable I-Beam Length (in): 107-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Fillable Base Height (in.): 36
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 120-3/16 Operation Mode: Manual

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-CB-50-10-10-BC
JIB-CB-50-10-10-BC

Steel Portable Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Dimensions: 42.1875"W x 135.125"L x 130.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215127189 GTIN: 00691215127189
Warranty: -- Shipping Weight: 562 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 Usable I-Beam Length (in): 107-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Fillable Base Height (in.): 36
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 120-3/16 Operation Mode: Manual
