Model Details

JIB-CBX-50-10-10

Printer Friendly
JIB-CBX-50-10-10

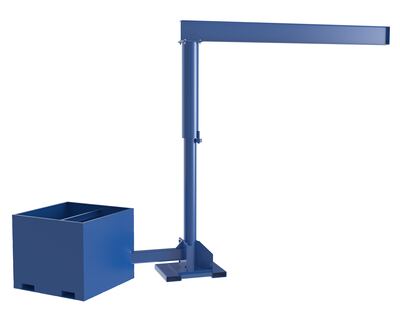

Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity Blue

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base with jib crane includes instructions for proper filling with concrete. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam.

  • Includes built-in fork tubes
  • Fill standard base with concrete for proper use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Total Ship Wt.(lbs.): 2772 (Multiple Packages: P1: 2102 lbs + P2: 670 lbs) Size: 59.6875"W x 205.3125"L x 130.3125"H Color: Blue

Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 Usable I-Beam Length (in): 109-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Base Height (in.): 36
Rotation (degrees): 360 Offset Base Length (in.): 42-3/16 Offset Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-1/2 Fork Tube Height (in.): 2-1/2 Fork Centers (in.): 24
Under I-Beam Height (in): 120-1/4 Operation Mode: Manual Requires 60 Pound Bags Sakrete Mix (quantity): 82

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-CBX-50-10-10
JIB-CBX-50-10-10

Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity Blue

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base with jib crane includes instructions for proper filling with concrete. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10' under I-beam.

  • Includes built-in fork tubes
  • Fill standard base with concrete for proper use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Dimensions: 59.6875"W x 205.3125"L x 130.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215088398 GTIN: 00691215088398
Warranty: -- Shipping Weight: 2102 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Overall I-Beam Length (in): 120 Usable I-Beam Length (in): 109-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Base Height (in.): 36
Rotation (degrees): 360 Offset Base Length (in.): 42-3/16 Offset Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-1/2 Fork Tube Height (in.): 2-1/2 Fork Centers (in.): 24
Under I-Beam Height (in): 120-1/4 Operation Mode: Manual Requires 60 Pound Bags Sakrete Mix (quantity): 82
