Model Details

L-220-HD

Printer Friendly
L-220-HD

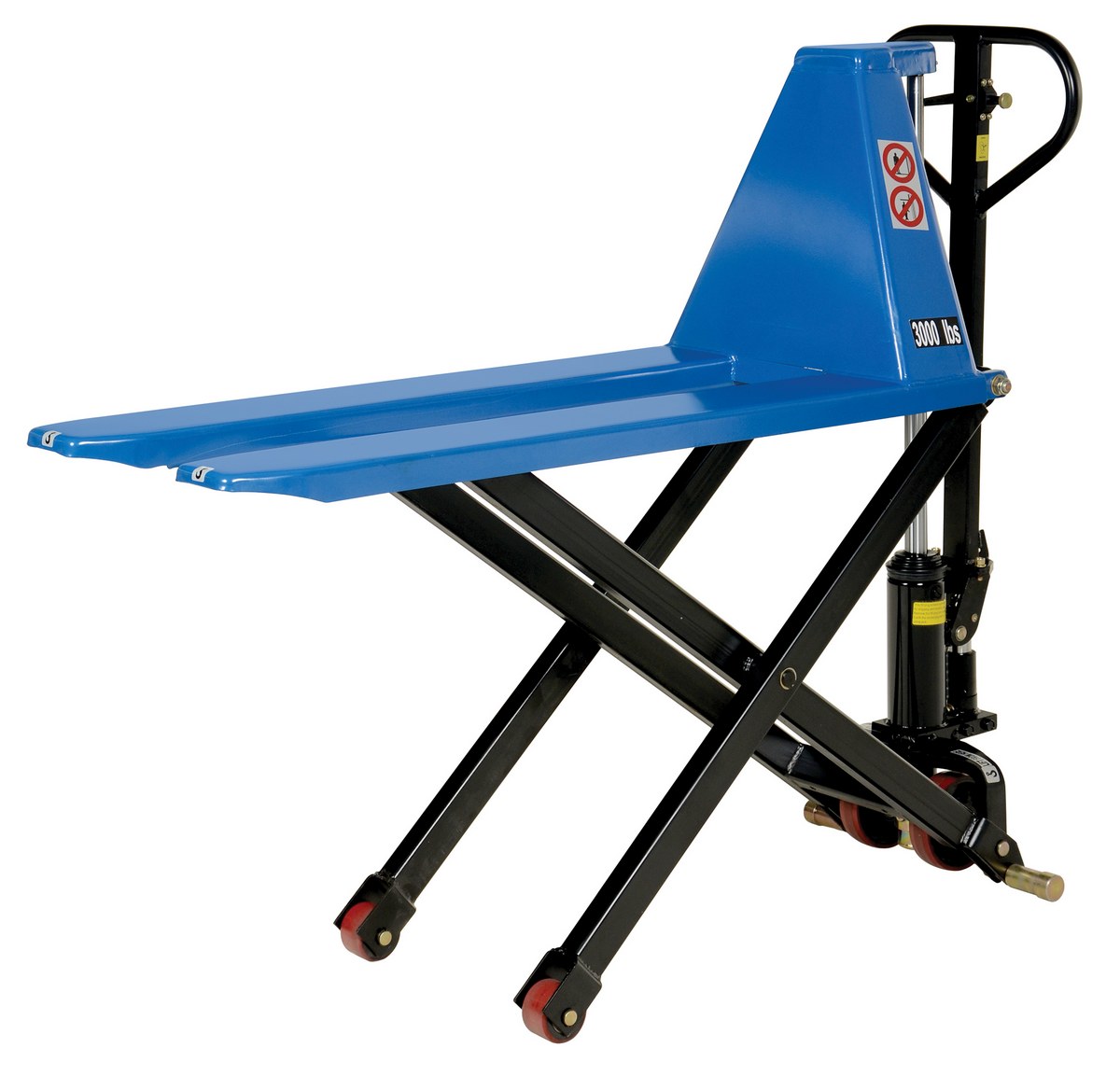

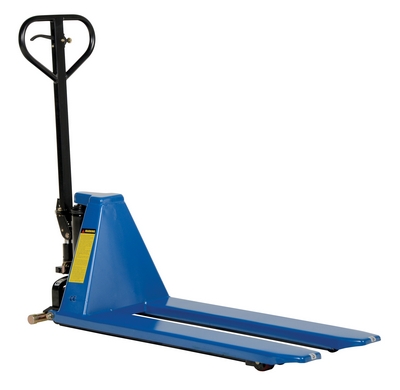

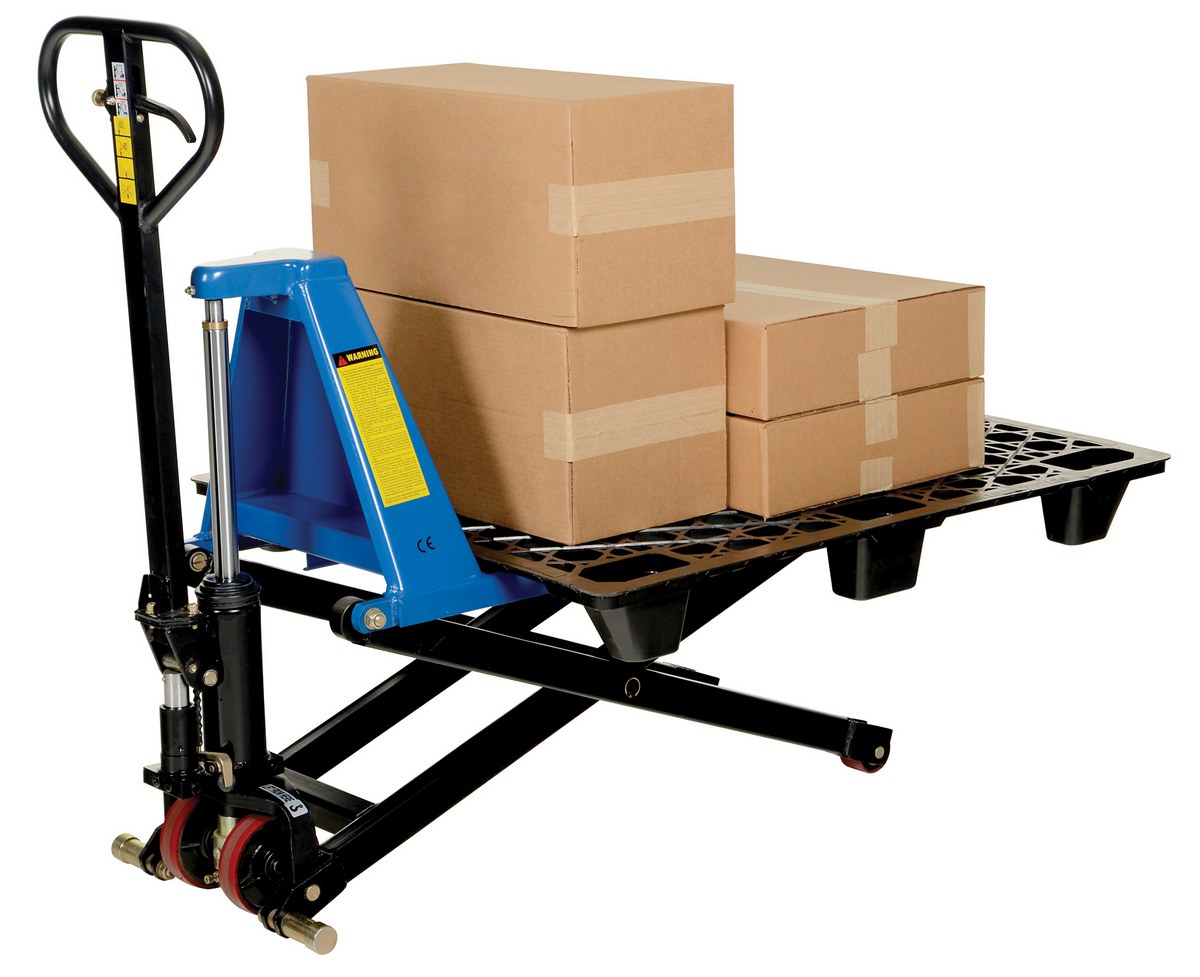

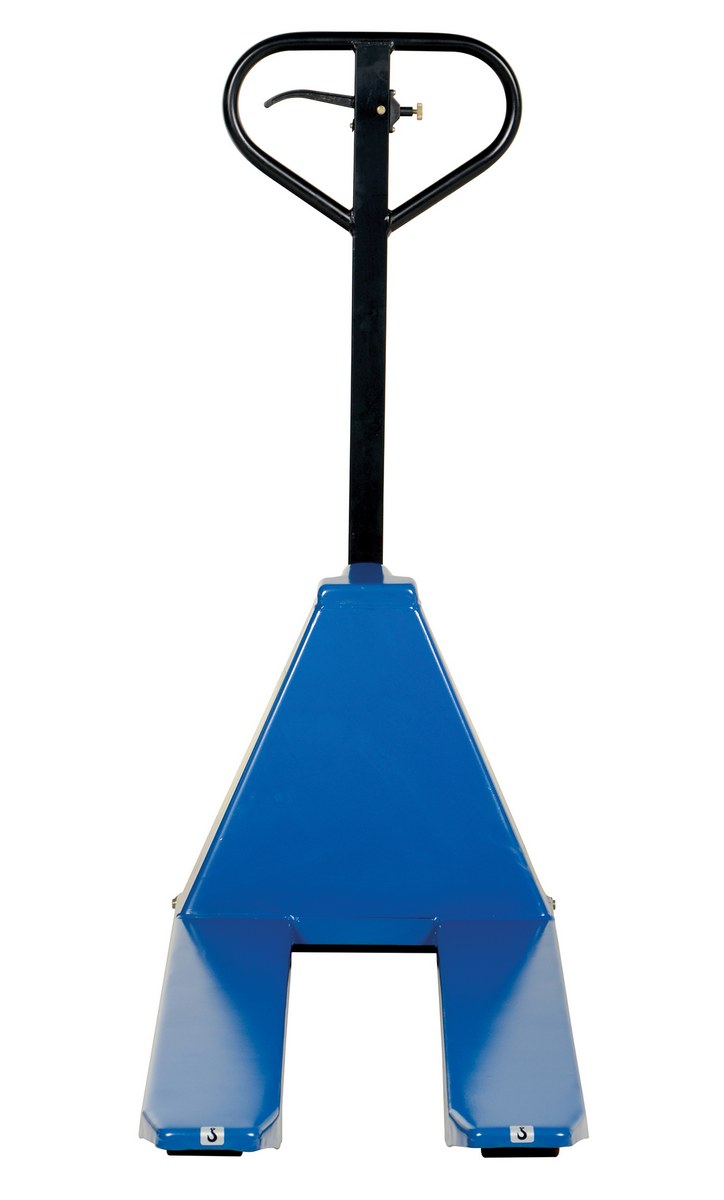

Steel Hand Pump Tote Lift 58 In. x 21 In. x 50 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. This lifter has the hand pump to raise or lower. The hand pump design features an ergonomic pump handle with two (2) lifting speeds to accommodate for light or heavy loads. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Total Ship Wt.(lbs.): 275 (only 1 package) Size: 21"W x 58"L x 50"H Color: Blue

Uniform Capacity (lb.): 3000 Operation: Hand Pump Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 20-1/2 Fork Length (in.): 43 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/8 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: L-220-HD
L-220-HD

Steel Hand Pump Tote Lift 58 In. x 21 In. x 50 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. This lifter has the hand pump to raise or lower. The hand pump design features an ergonomic pump handle with two (2) lifting speeds to accommodate for light or heavy loads. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Dimensions: 21"W x 58"L x 50"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215025010 GTIN: 00691215025010
Warranty: -- Shipping Weight: 275 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Operation: Hand Pump Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 20-1/2 Fork Length (in.): 43 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/8 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic
