Model Details

L-270-DC-HD

Printer Friendly
L-270-DC-HD

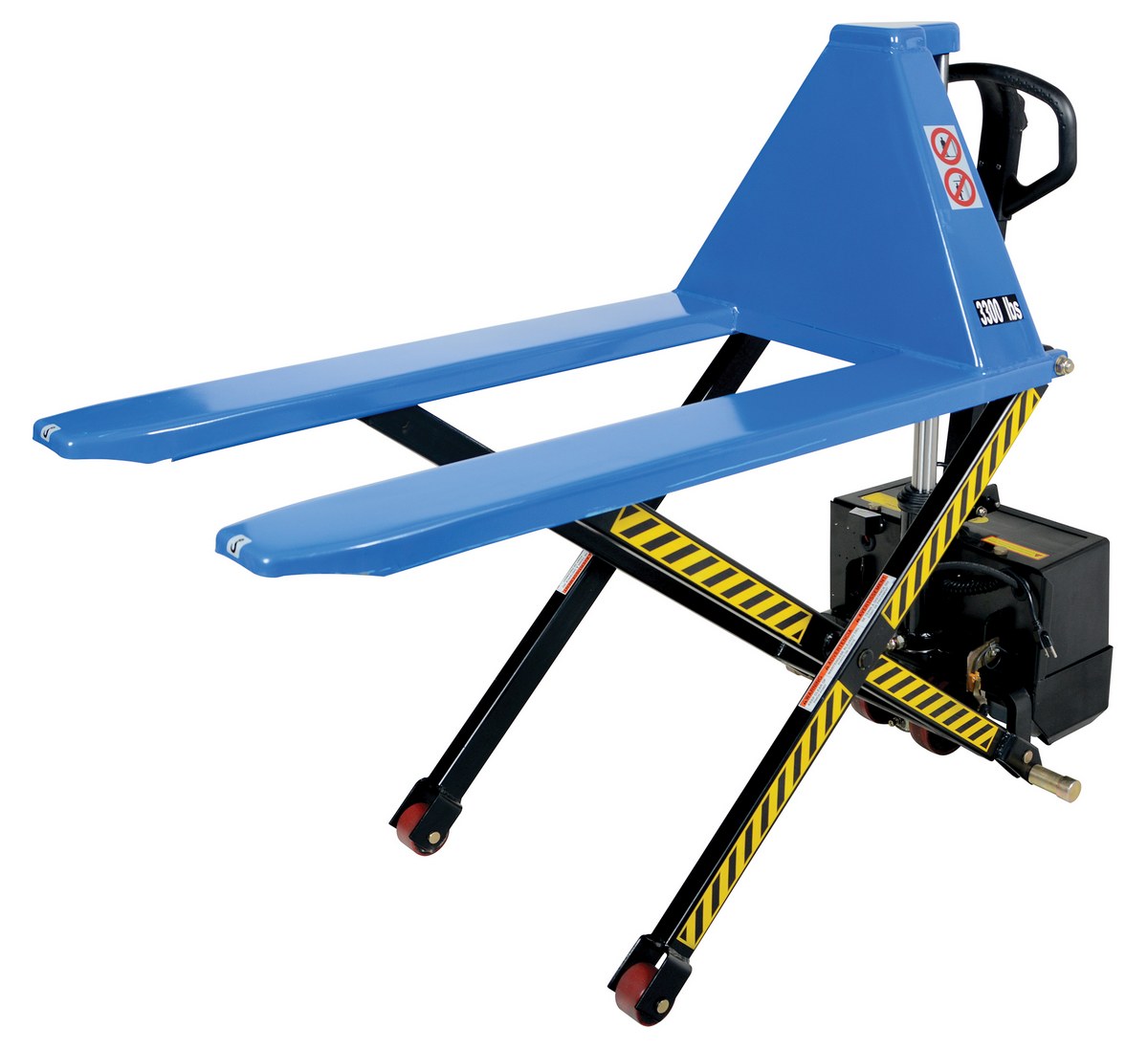

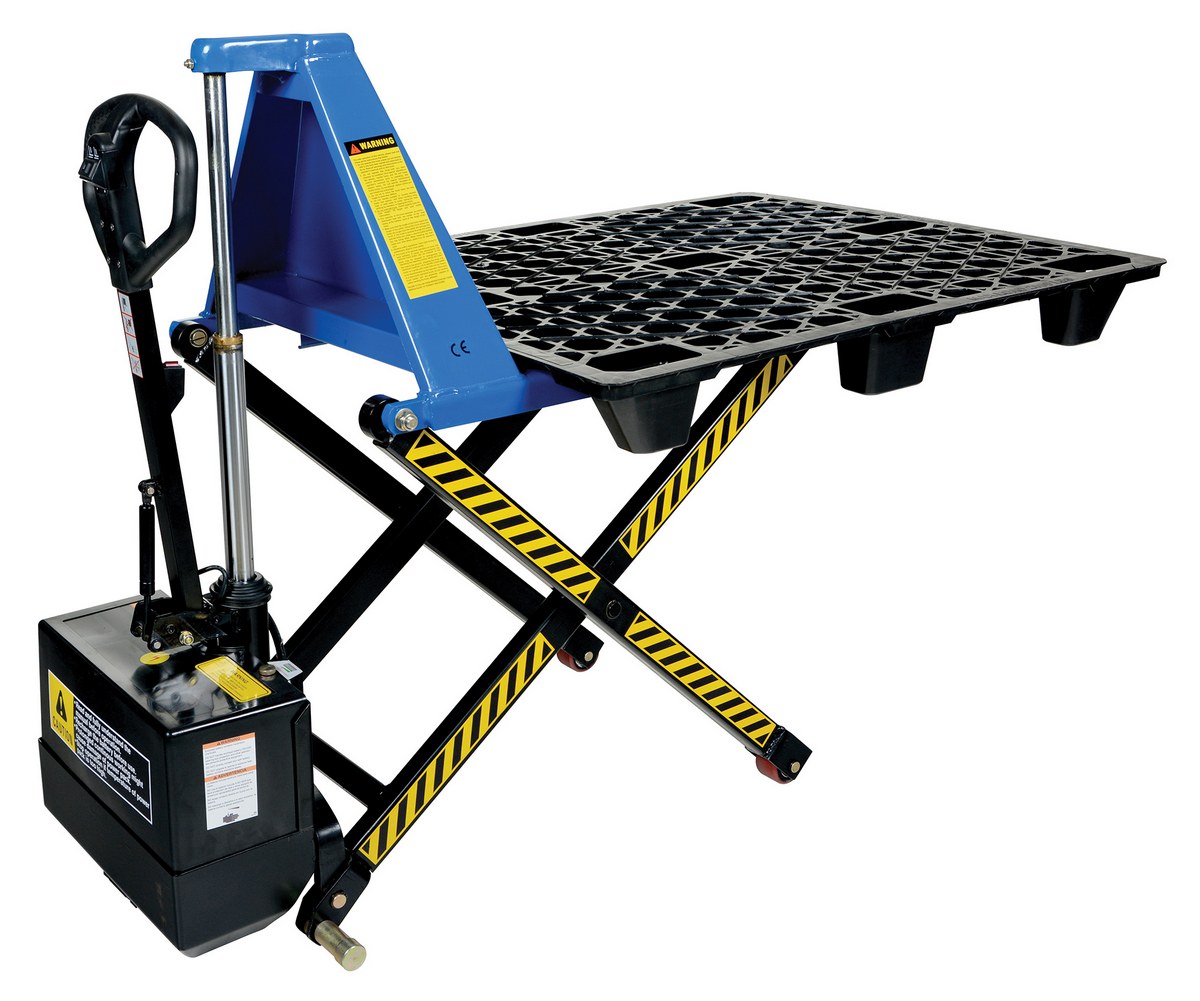

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Total Ship Wt.(lbs.): 346 (only 1 package) Size: 26.75"W x 63"L x 46.5"H Color: Blue

Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: L-270-DC-HD
L-270-DC-HD

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Dimensions: 26.75"W x 63"L x 46.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215025027 GTIN: 00691215025027
Warranty: -- Shipping Weight: 346 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140
