LAD-16-14-G-EZ

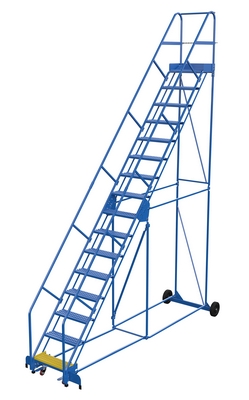

Steel Rolling Warehouse Ladder 50 Degree 16 Grip Strut 23-9/16 In. Step Width 350 Lb. Capacity Blue

The rolling warehouse ladder is a great addition to material handling and shipping facilities. The powder coated steel construction maintains a strong, durable design throughout a lifetime of use. The steps include a perforated design and a 50 degrees climb angle that promotes stability while climbing and/or descending the ladder. The bottom step is colored yellow for additional safety and minimization of injuries when traversing the ladder with heavy loads.

  • Steel construction for lasting durability
  • Grip Strut steps for safe traversing
  • Rolling design for maneuvering in condensed areas
  • Bottom step is colored yellow for utmost safety
Total Ship Wt.(lbs.): 527 (only 1 package) Size: 42.25"W x 144.8125"L x 196"H Color: Blue

Uniform Capacity (lb.): 350 Number of Steps (qty.): 16 Step Angle (degrees): 50
Top Step Height (in.): 160 Top Step Depth (in.): 14 Step Depth (in.): 7
Usable Width (in.): 23-9/16 Usable Length (in.): 141-3/4 Step Type: Grip Strut
Step Spacing (in.): 10 Front Swivel Poly Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Rear Rigid Hard Rubber Caster Quantity/Diameter/Width (in.): (2) 10x2-1/2
OSHA: 1910.29 ANSI: A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-16-14-G-EZ
LAD-16-14-G-EZ

Steel Rolling Warehouse Ladder 50 Degree 16 Grip Strut 23-9/16 In. Step Width 350 Lb. Capacity Blue

The rolling warehouse ladder is a great addition to material handling and shipping facilities. The powder coated steel construction maintains a strong, durable design throughout a lifetime of use. The steps include a perforated design and a 50 degrees climb angle that promotes stability while climbing and/or descending the ladder. The bottom step is colored yellow for additional safety and minimization of injuries when traversing the ladder with heavy loads.

  • Steel construction for lasting durability
  • Grip Strut steps for safe traversing
  • Rolling design for maneuvering in condensed areas
  • Bottom step is colored yellow for utmost safety
Dimensions: 42.25"W x 144.8125"L x 196"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215121903 GTIN: 00691215121903
Warranty: -- Shipping Weight: 527 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Number of Steps (qty.): 16 Step Angle (degrees): 50
Top Step Height (in.): 160 Top Step Depth (in.): 14 Step Depth (in.): 7
Usable Width (in.): 23-9/16 Usable Length (in.): 141-3/4 Step Type: Grip Strut
Step Spacing (in.): 10 Front Swivel Poly Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Rear Rigid Hard Rubber Caster Quantity/Diameter/Width (in.): (2) 10x2-1/2
OSHA: 1910.29 ANSI: A14.7
