Model Details

LAD-FM-96-PSO

Printer Friendly
LAD-FM-96-PSO

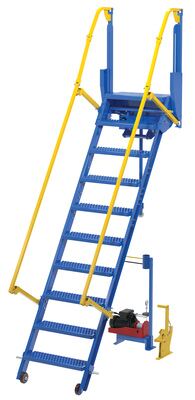

Steel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue

The powered mezzanine ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in powder coat blue finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail
Total Ship Wt.(lbs.): 465 (only 1 package) Size: 35.1875"W x 64.9375"L x 144.875"H Color: Yellow Non-Returnable

Base Length (in): 67.75 Base Width (in): 32.25 ANSI Ladder Rating: Type IA
Climbing Angle (degree): 58 Steps: 10 Distance Between Rung/Steps (in): 10
Rung/Step Width (in): 23.63 Rung/Step Depth (in): 7 Top Step Height From Ground (in): 96
Rung/Step Material: Serrated Steel Number of Casters / Wheels: 2 Caster / Wheel Material: Poly on Poly
Front Wheel Width (in): 1.25 Front Wheel Diameter (in): 4 Handrail Included: Yes
Handrail Height (in): 31.625 Spring Loaded: No OSHA Approved: Yes
ANSI Approved: Yes Additional Contents: AC Powered Mezzanine Ladder 115 Volts

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-FM-96-PSO
LAD-FM-96-PSO

Steel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue

The powered mezzanine ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in powder coat blue finish for added toughness.

  • Great for condensed work areas
  • Treaded step design for sure footing
  • Attached casters provide simple maneuvering
  • Collapsible handrail
Dimensions: 35.1875"W x 64.9375"L x 144.875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215336789 GTIN: 00691215336789
Warranty: -- Shipping Weight: 465 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Base Length (in): 67.75 Base Width (in): 32.25 ANSI Ladder Rating: Type IA
Climbing Angle (degree): 58 Steps: 10 Distance Between Rung/Steps (in): 10
Rung/Step Width (in): 23.63 Rung/Step Depth (in): 7 Top Step Height From Ground (in): 96
Rung/Step Material: Serrated Steel Number of Casters / Wheels: 2 Caster / Wheel Material: Poly on Poly
Front Wheel Width (in): 1.25 Front Wheel Diameter (in): 4 Handrail Included: Yes
Handrail Height (in): 31.625 Spring Loaded: No OSHA Approved: Yes
ANSI Approved: Yes Additional Contents: AC Powered Mezzanine Ladder 115 Volts
