Model Details

LAD-PW-18-4-G

Printer Friendly
LAD-PW-18-4-G

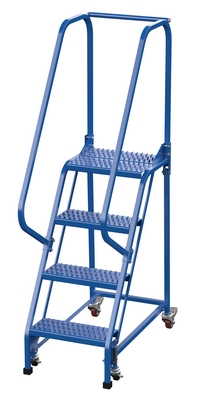

Steel Standard Slope Ladder 58 Degree 4 Grip Strut 16-13/16 In. Step Width 350 Lb. Capacity Blue

The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, handrail included and welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has (2) two all directional spring-loaded swivel casters and (2) swivel casters with total locks. Ships fully assembled and ready to use.

  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength
Total Ship Wt.(lbs.): 134 (only 1 package) Size: 20.875"W x 40.4375"L x 70"H Color: Blue

Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step Depth (in.): 7
Top Step Depth (in.): 14 Step Width (in.): 16-13/16 Step (qty.): 4
Rear Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Rear Caster Material: Poly-on-Poly Rear Caster Type: Swivel Lock
Front Caster Quantity/Diameter/Width (in.): (2) 2x1 Front Caster Material: Poly-on-Poly Front Caster Type: All directional spring-loaded swivel
Handrail: Yes Step Type: Grip Strut OSHA: 1910.29
ANSI: A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-PW-18-4-G
LAD-PW-18-4-G

Steel Standard Slope Ladder 58 Degree 4 Grip Strut 16-13/16 In. Step Width 350 Lb. Capacity Blue

The standard slope ladder is a portable warehouse ladder for every-day use applications. Grip strut steps, handrail included and welded square tubular steel construction with powder-coat blue finish. Rubber feet provided for floor protection. Unit has (2) two all directional spring-loaded swivel casters and (2) swivel casters with total locks. Ships fully assembled and ready to use.

  • Portable design easily moves through the warehouse
  • Top tread design provides a safe non-slip grip
  • Bottom step caster lock provides added safety when climbing
  • Heavy-duty formed steel construction offers maximum strength
Dimensions: 20.875"W x 40.4375"L x 70"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215125505 GTIN: 00691215125505
Warranty: -- Shipping Weight: 134 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step Depth (in.): 7
Top Step Depth (in.): 14 Step Width (in.): 16-13/16 Step (qty.): 4
Rear Caster Quantity/Diameter/Width (in.): (2) 3x1-1/4 Rear Caster Material: Poly-on-Poly Rear Caster Type: Swivel Lock
Front Caster Quantity/Diameter/Width (in.): (2) 2x1 Front Caster Material: Poly-on-Poly Front Caster Type: All directional spring-loaded swivel
Handrail: Yes Step Type: Grip Strut OSHA: 1910.29
ANSI: A14.7
