LAD-TRS-50-2-P

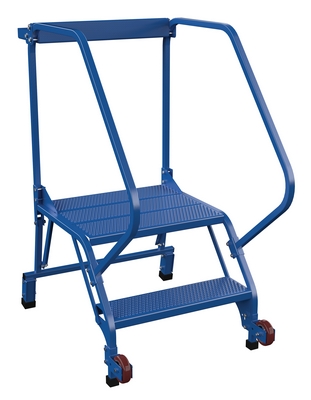

Steel Tip-N-Roll Ladder 50 Degree 2 Straddle Perforated 24 In. Step Width 50 Degree 350 Lb. Capacity Blue

This Tip-N-Roll mobile ladder has the straddle base for areas with permanent obstructions. When tilted, ladder rolls smoothly on wheels. Straddle base ladders include a removable tool tray. This ladder has perforated steps. Powder coat blue finish.

  • Tilt back wheel design provides easy ladder portability
  • Top tread design provides a safe non-slip grip
  • Rubber feet provide added floor protection
  • Heavy-duty formed steel construction offers maximum strength
Total Ship Wt.(lbs.): 120 (only 1 package) Size: 29.5"W x 44.8125"L x 50"H Color: Blue

Uniform Capacity (lb.): 350 Number of Steps: 2 Step Angle (degrees): 50
Step Width (in.): 24 Step Depth (in.): 7 Top Step Depth (in.): 21
Top Step Height (in.): 20 Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Wheel Type: Rigid Poly-on-Poly
Step Style: Perforated OSHA: 1910.29 ANSI: A14.7
Usable Tool Tray Length (in.): 10 Usable Tool Tray Width (in.): 23-9/16 Usable Tool Tray Height (in.): 3-1/8
Ground Clearance Height (in.): 5-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-TRS-50-2-P
LAD-TRS-50-2-P

Steel Tip-N-Roll Ladder 50 Degree 2 Straddle Perforated 24 In. Step Width 50 Degree 350 Lb. Capacity Blue

This Tip-N-Roll mobile ladder has the straddle base for areas with permanent obstructions. When tilted, ladder rolls smoothly on wheels. Straddle base ladders include a removable tool tray. This ladder has perforated steps. Powder coat blue finish.

  • Tilt back wheel design provides easy ladder portability
  • Top tread design provides a safe non-slip grip
  • Rubber feet provide added floor protection
  • Heavy-duty formed steel construction offers maximum strength
Dimensions: 29.5"W x 44.8125"L x 50"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215126472 GTIN: 00691215126472
Warranty: -- Shipping Weight: 120 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Number of Steps: 2 Step Angle (degrees): 50
Step Width (in.): 24 Step Depth (in.): 7 Top Step Depth (in.): 21
Top Step Height (in.): 20 Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Wheel Type: Rigid Poly-on-Poly
Step Style: Perforated OSHA: 1910.29 ANSI: A14.7
Usable Tool Tray Length (in.): 10 Usable Tool Tray Width (in.): 23-9/16 Usable Tool Tray Height (in.): 3-1/8
Ground Clearance Height (in.): 5-1/2
