LJ-21-SS

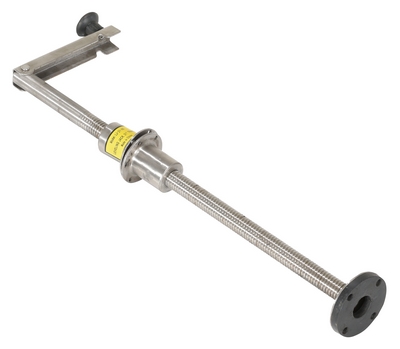

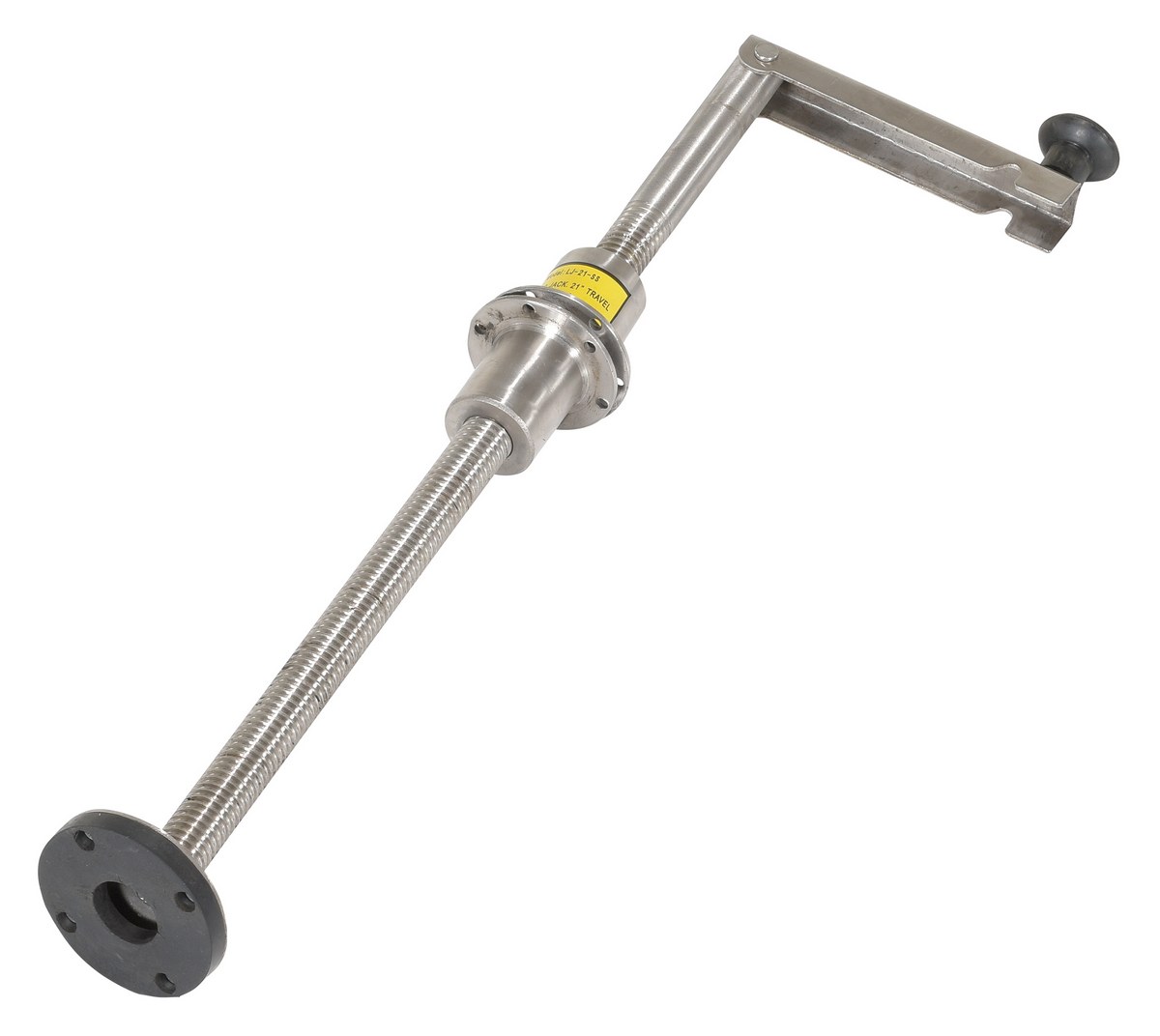

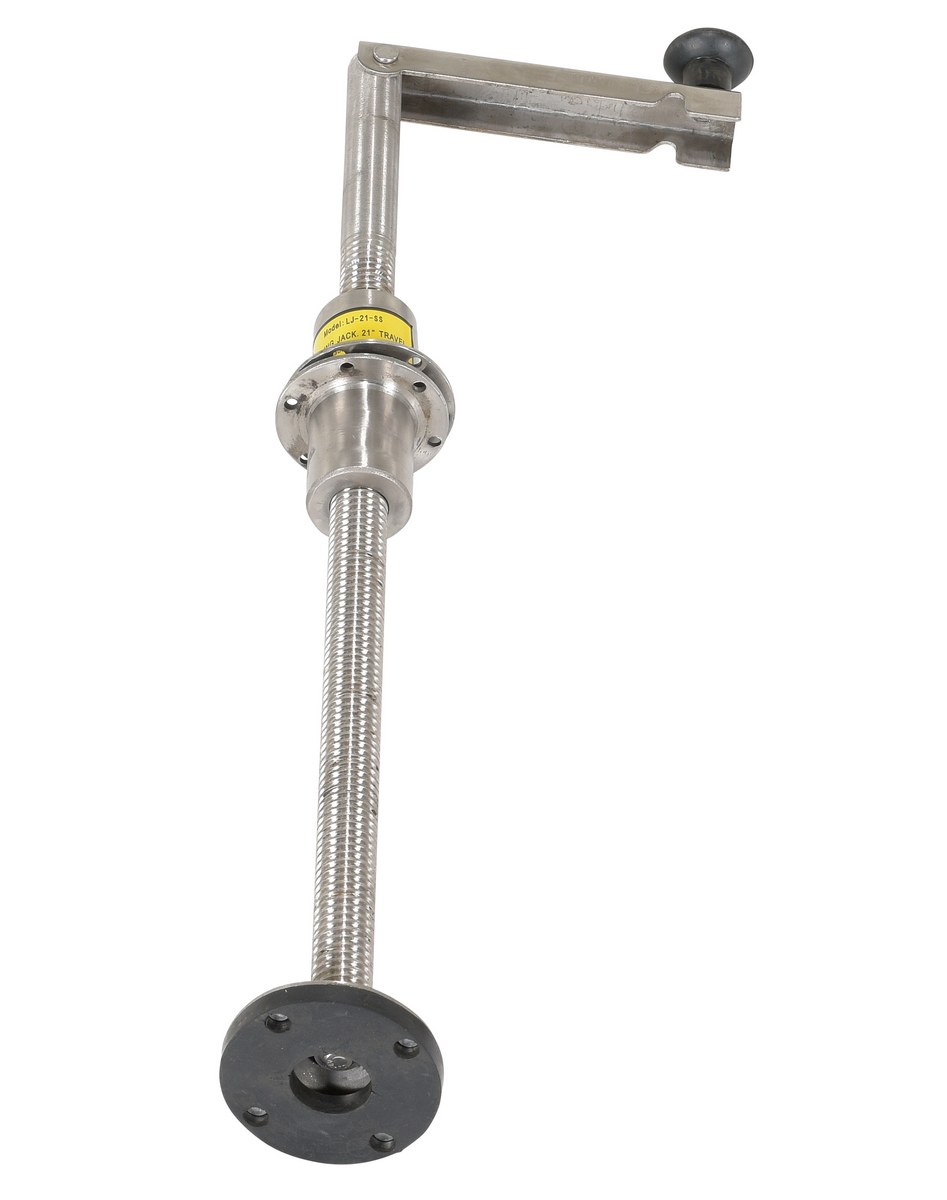

Stainless Steel Leveling Jack 30 In. 5000 Lb. Capacity Silver

This leveling jack is designed for permanent installation, screw-style jack hold platforms and other equipment in place and stabilize them at the required height. Drill a one and one quarter inch (1-1/4") diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Jack has a handle that folds down when not in use. Swivel base has a slip-resistant rubber pad on the bottom (replacement pads available).

  • Lifting design raises, levels and stabilizes portable equipment
  • Rubber bottom pad provides extra grip
  • Jack handle design folds down when not in use
  • Designed for permanent installation
Total Ship Wt.(lbs.): 14 (only 1 package) Size: 9"W x 4.5"L x 30"H Color: Silver

Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2 Swivel Base Diameter (in.): 3-7/8
Screw Diameter (in.): 1-1/4 Lift Rate Per Crank Revolution (in.): 1/4 Minimum Extended Height (in.): 4-1/2
Maximum Extended Height (in.): 25-1/2 Screw Travel (in.): 21 Thread Size (millimeter): 4
Holding Capacity (pounds): 10,000 Jaw Opening (in.): 15-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LJ-21-SS
LJ-21-SS

Stainless Steel Leveling Jack 30 In. 5000 Lb. Capacity Silver

This leveling jack is designed for permanent installation, screw-style jack hold platforms and other equipment in place and stabilize them at the required height. Drill a one and one quarter inch (1-1/4") diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Jack has a handle that folds down when not in use. Swivel base has a slip-resistant rubber pad on the bottom (replacement pads available).

  • Lifting design raises, levels and stabilizes portable equipment
  • Rubber bottom pad provides extra grip
  • Jack handle design folds down when not in use
  • Designed for permanent installation
Dimensions: 9"W x 4.5"L x 30"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215077378 GTIN: 00691215077378
Warranty: -- Shipping Weight: 14 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5,000 Handle Length (in.): 8-1/2 Swivel Base Diameter (in.): 3-7/8
Screw Diameter (in.): 1-1/4 Lift Rate Per Crank Revolution (in.): 1/4 Minimum Extended Height (in.): 4-1/2
Maximum Extended Height (in.): 25-1/2 Screw Travel (in.): 21 Thread Size (millimeter): 4
Holding Capacity (pounds): 10,000 Jaw Opening (in.): 15-1/4
