LLPH-500-4SFL

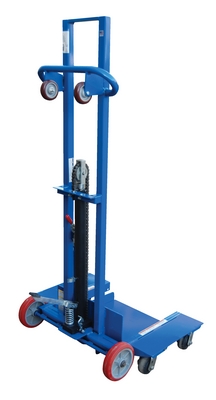

Steel Low Profile Lite Load Lift With Foot Pump, Swivel Casters and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This lift is easy to operate with a foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Total Ship Wt.(lbs.): 249 (only 1 package) Size: 37.4375"W x 29.8125"L x 69.625"H Color: Blue

Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 48-1/4 Per Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter/Width (in.): (4) 4 x2 Front Caster Material: Mold on Rubber
Front Caster Type: Swivel Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LLPH-500-4SFL
LLPH-500-4SFL

Steel Low Profile Lite Load Lift With Foot Pump, Swivel Casters and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This lift is easy to operate with a foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 37.4375"W x 29.8125"L x 69.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215026864 GTIN: 00691215026864
Warranty: -- Shipping Weight: 249 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 48-1/4 Per Foot Pump Lift (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Foot Pump Rear Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter/Width (in.): (4) 4 x2 Front Caster Material: Mold on Rubber
Front Caster Type: Swivel Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4 Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid
