LLPW-500-FWFL

Printer Friendly
LLPW-500-FWFL

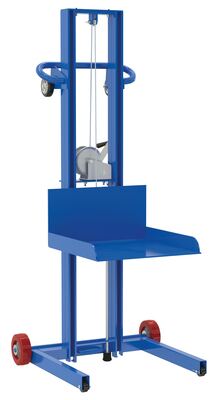

Steel Low Profile Lite Load Lift With Winch, Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. Easy to operate with foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks. Unit also includes a wheel lock for steadiness when not in motion.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Wheel lock capabilities for stability and control
  • Two rollers on handle provide easy unit loading into delivery trucks
Total Ship Wt.(lbs.): 134 (only 1 package) Size: 30.5"W x 33.1875"L x 66.5"H Color: Blue

Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 55 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Hand Winch Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LLPW-500-FWFL
LLPW-500-FWFL

Steel Low Profile Lite Load Lift With Winch, Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. Easy to operate with foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks. Unit also includes a wheel lock for steadiness when not in motion.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Wheel lock capabilities for stability and control
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 30.5"W x 33.1875"L x 66.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215336147 GTIN: 00691215336147
Warranty: -- Shipping Weight: 134 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 55 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Hand Winch Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
