LLW-202058-FWWL

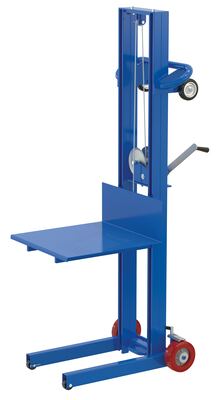

Steel Lite Load Lift With Winch, Fixed Wheels and Wheel Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. Easy to operate with foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks. Unit also includes a wheel lock for steadiness when not in motion.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Wheel lock capabilities for stability and control
  • Two rollers on handle provide easy unit loading into delivery trucks
Total Ship Wt.(lbs.): 107 (only 1 package) Size: 20.0625"W x 33.125"L x 66.5"H Color: Blue

Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation Type: Hand Winch Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2
Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2
Front Caster Material: Semi Steel Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LLW-202058-FWWL
LLW-202058-FWWL

Steel Lite Load Lift With Winch, Fixed Wheels and Wheel Lock 20 In. x 20 In. Platform 400 Lb. Capacity Blue

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. Easy to operate with foot pump and a steel construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two (2) rollers to ease loading into delivery trucks. Unit also includes a wheel lock for steadiness when not in motion.

  • Solid steel construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Wheel lock capabilities for stability and control
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 20.0625"W x 33.125"L x 66.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215336093 GTIN: 00691215336093
Warranty: -- Shipping Weight: 107 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation Type: Hand Winch Rear Wheel Quantity/Diameter/Width (in.): (2) 6 x 2
Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid Front Caster Quantity/Diameter (in.): (2) 2
Front Caster Material: Semi Steel Front Caster Type: Rigid Handle Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid
