Model Details

LM-1T-6-11

Printer Friendly
LM-1T-6-11

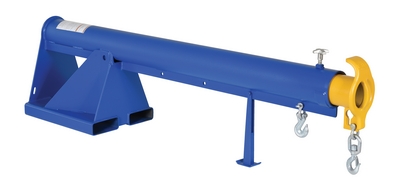

Steel Telescoping Lift Boom 11 In. Fork Pocket Center 6,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Total Ship Wt.(lbs.): 479 (only 1 package) Size: 19"W x 86"L x 25.875"H Color: Blue (Base Frame)/Yellow (Extension)

Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 6000 Single-Hook Capacity at 48" (lb.): 5000 Single-Hook Capacity at 60" (lb.): 4500
Single-Hook Capacity at 72" (lb.): 4000 Single-Hook Capacity at 84" (lb.): 3500 Single-Hook Capacity at 96" (lb.): 3000
Single-Hook Capacity at 108" (lb.): 2600 Single-Hook Capacity at 120" (lb.): 2300 Single-Hook Capacity at 132" (lb.): 2000
Single-Hook Capacity at 144" (lb.): 1800 Overall Extended Length (in.): 151-1/4 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-1T-6-11
LM-1T-6-11

Steel Telescoping Lift Boom 11 In. Fork Pocket Center 6,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 19"W x 86"L x 25.875"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215027212 GTIN: 00691215027212
Warranty: -- Shipping Weight: 479 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 6000 Single-Hook Capacity at 48" (lb.): 5000 Single-Hook Capacity at 60" (lb.): 4500
Single-Hook Capacity at 72" (lb.): 4000 Single-Hook Capacity at 84" (lb.): 3500 Single-Hook Capacity at 96" (lb.): 3000
Single-Hook Capacity at 108" (lb.): 2600 Single-Hook Capacity at 120" (lb.): 2300 Single-Hook Capacity at 132" (lb.): 2000
Single-Hook Capacity at 144" (lb.): 1800 Overall Extended Length (in.): 151-1/4 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)
