Model Details

LM-1T-8-24-HBE-TP

Printer Friendly
LM-1T-8-24-HBE-TP

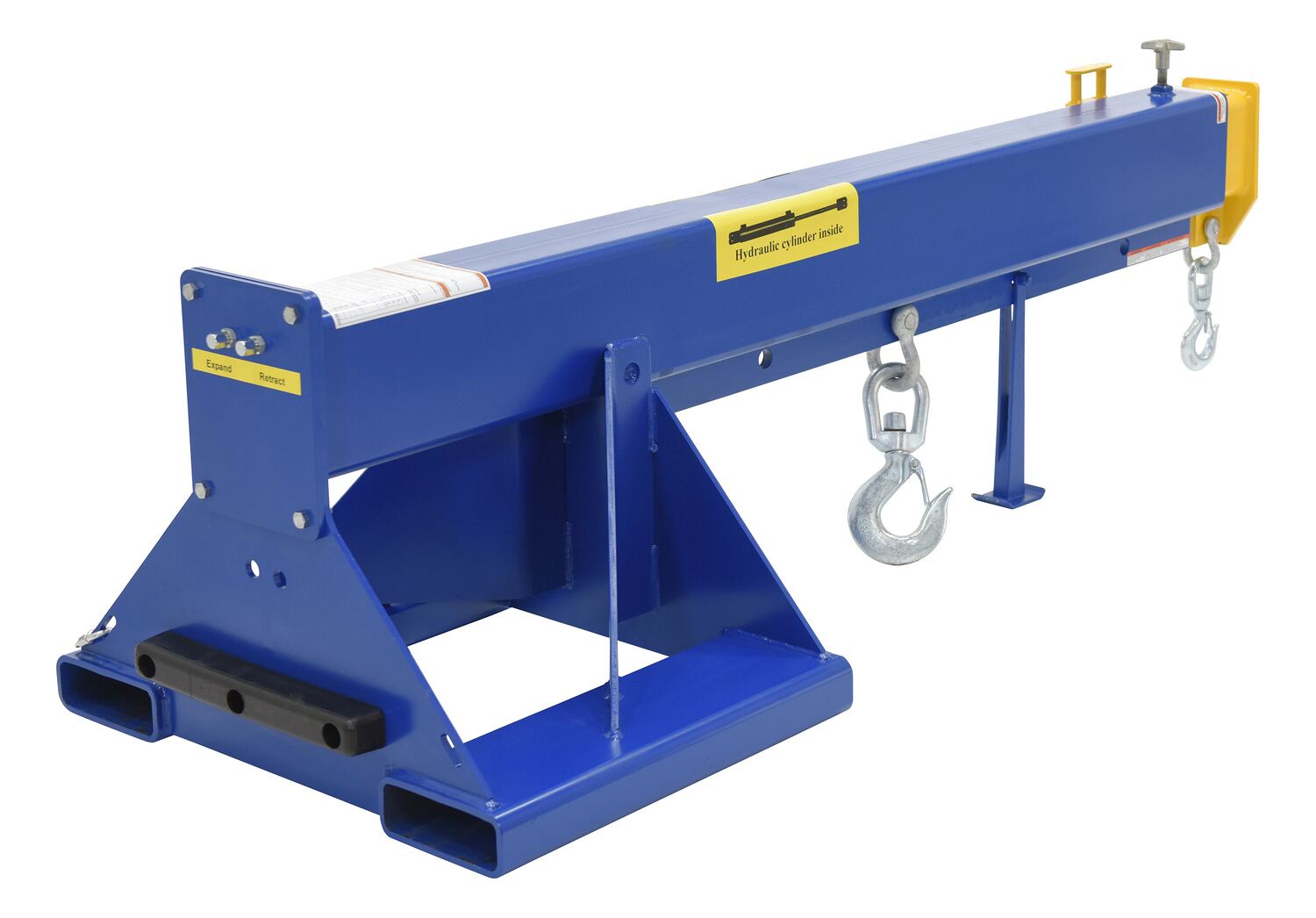

Steel Hydraulic Telescoping Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity

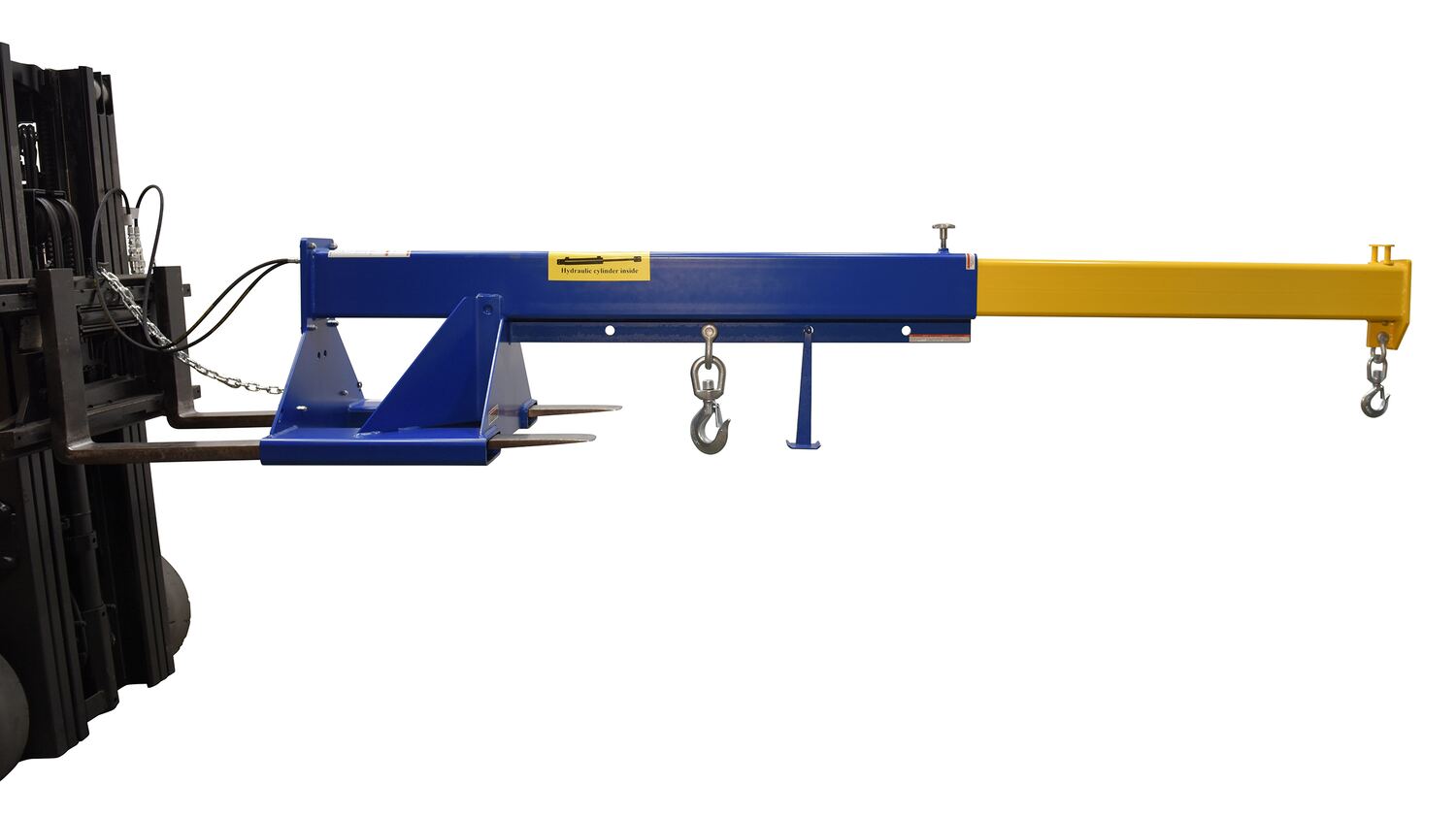

The fork truck powered telescoping boom has all the benefits of the standard lifting boom, except now its powered. The powered telescoping feature allows the personnel to maneuver the length of the boom automatically, reducing manual labor. The unit is powered by the fork trucks hydraulic system into the forklift to utilize the powered function. Includes two (2) lifting hooks and a painted finish.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Total Ship Wt.(lbs.): 720 (only 1 package) Size: 32"W x 83.75"L x 24.5"H Color: Blue (Base Frame)/Yellow (Extension) Non-Returnable

Movable Load (lbs.): 2000 Lost Load (lbs.): 715 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Usable Fork Pockets (in.): 7-1/4 x 2-1/4 Fork Pocket Center (in.): 24
Fork Truck Required Rating (lbs): 8000

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-1T-8-24-HBE-TP
LM-1T-8-24-HBE-TP

Steel Hydraulic Telescoping Boom 24 In. Fork Pocket Center 8,000 Lb. Capacity

The fork truck powered telescoping boom has all the benefits of the standard lifting boom, except now its powered. The powered telescoping feature allows the personnel to maneuver the length of the boom automatically, reducing manual labor. The unit is powered by the fork trucks hydraulic system into the forklift to utilize the powered function. Includes two (2) lifting hooks and a painted finish.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Promotes workplace efficiency
Dimensions: 32"W x 83.75"L x 24.5"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215325646 GTIN: 00691215325646
Warranty: -- Shipping Weight: 720 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Movable Load (lbs.): 2000 Lost Load (lbs.): 715 Extended Length (in.): 144-3/4
Min/Max Hook Point (in.): 36 - 142 Usable Fork Pockets (in.): 7-1/4 x 2-1/4 Fork Pocket Center (in.): 24
Fork Truck Required Rating (lbs): 8000
