Model Details

LM-HRT-6-24

Printer Friendly

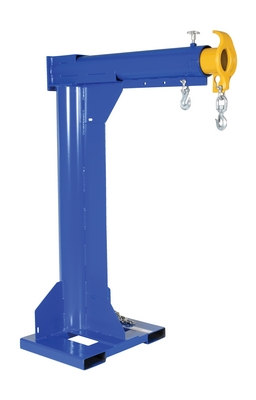

LM-HRT-6-24

Steel High Rise Telescoping Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Total Ship Wt.(lbs.): 880 (only 1 package) Size: 32"W x 54.875"L x 79.8125"H Color: Blue (Base Frame)/Yellow (Extension)

Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 24 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 30/90
Single-Hook Capacity at 30" (lb.): 6000 Single-Hook Capacity at 36" (lb.): 5000 Single-Hook Capacity at 42" (lb.): 4500
Single-Hook Capacity at 48" (lb.): 4000 Single-Hook Capacity at 54" (lb.): 3500 Single-Hook Capacity at 60" (lbs.): 3000
Single-Hook Capacity at 66" (lbs.): 2600 Single-Hook Capacity at 72" (lbs.): 2300 Single-Hook Capacity at 78" (lbs.): 2000
Single-Hook Capacity at 84" (lbs.): 1800 Single-Hook Capacity at 90" (lbs.): 1550 Overall Extended Length (in.): 92-5/8
Boom Type: High Rise Boom OSHA: 1910.178(a)(4)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-HRT-6-24
LM-HRT-6-24

Steel High Rise Telescoping Boom 24 In. Fork Pocket Center 6,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit come with an infinitely adjustable locking screw. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 32"W x 54.875"L x 79.8125"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215089173 GTIN: 00691215089173
Warranty: -- Shipping Weight: 880 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 24 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 30/90
Single-Hook Capacity at 30" (lb.): 6000 Single-Hook Capacity at 36" (lb.): 5000 Single-Hook Capacity at 42" (lb.): 4500
Single-Hook Capacity at 48" (lb.): 4000 Single-Hook Capacity at 54" (lb.): 3500 Single-Hook Capacity at 60" (lbs.): 3000
Single-Hook Capacity at 66" (lbs.): 2600 Single-Hook Capacity at 72" (lbs.): 2300 Single-Hook Capacity at 78" (lbs.): 2000
Single-Hook Capacity at 84" (lbs.): 1800 Single-Hook Capacity at 90" (lbs.): 1550 Overall Extended Length (in.): 92-5/8
Boom Type: High Rise Boom OSHA: 1910.178(a)(4)
