Model Details

LO-DC-MR

Printer Friendly
LO-DC-MR

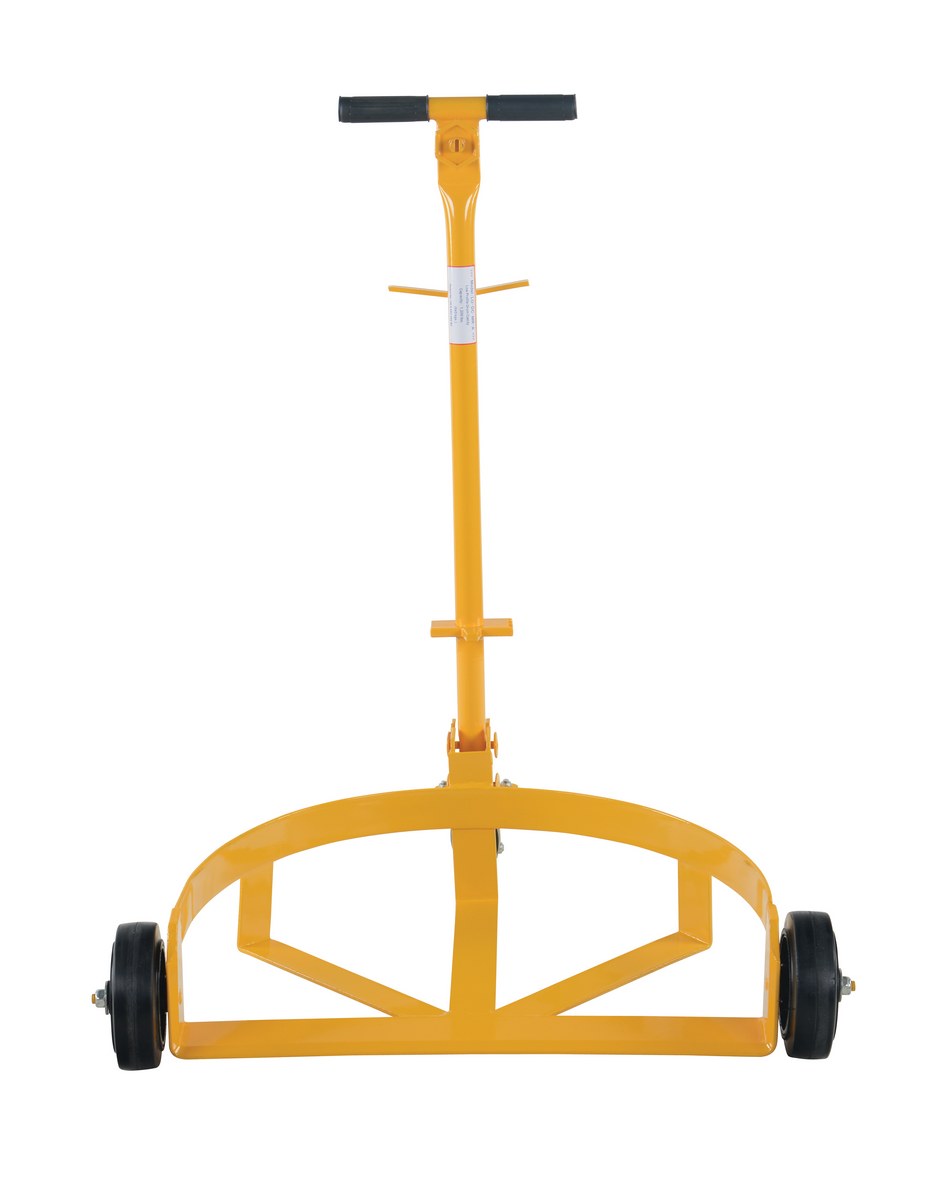

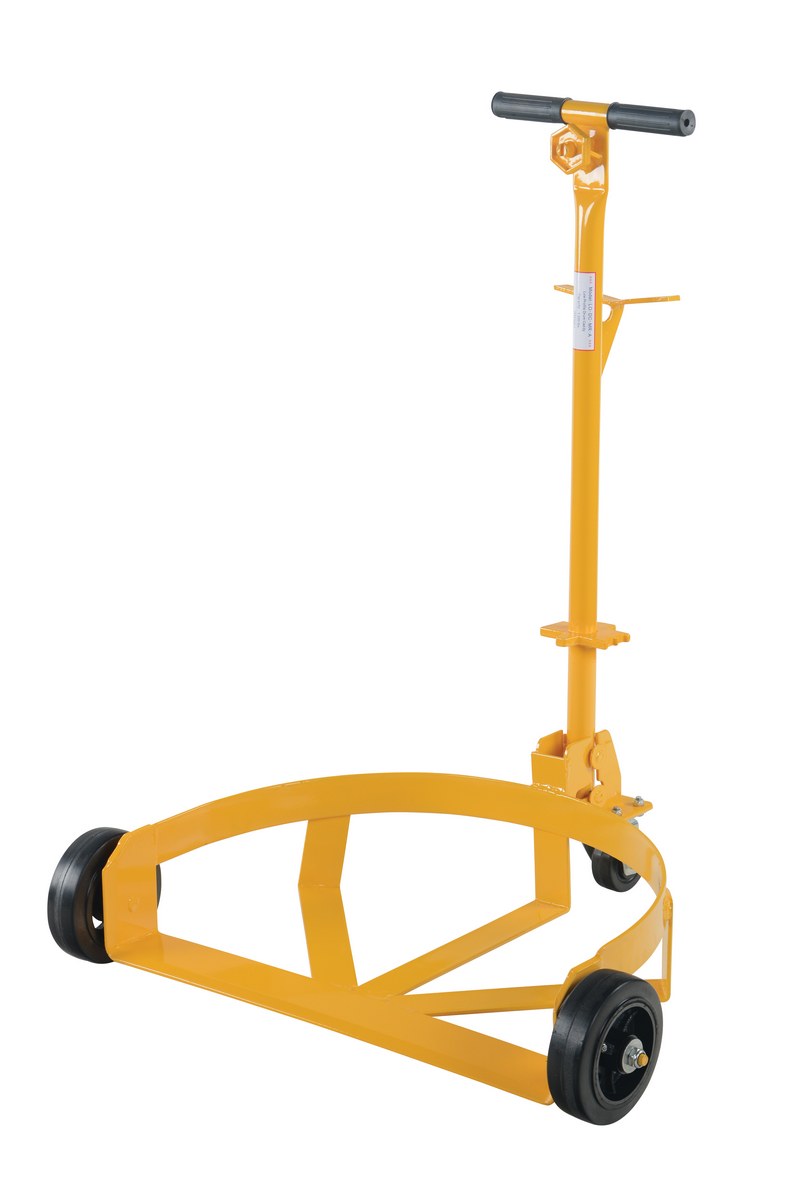

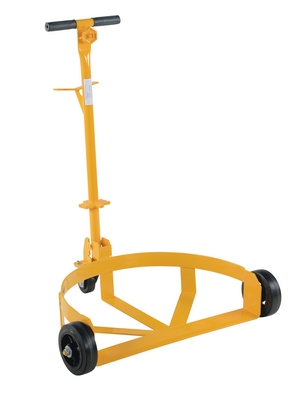

Steel Low Profile Drum Dolly with Mold On Rubber Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1000 Lb. Capacity Yellow

Reduce injuries caused by manually lifting and moving drums. Transport drums or pails with the low-profile drum caddy. To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Caddy rolls easily on casters. The removable handle doubles as a bung nut wrench and seal remover.

  • High strength steel construction offers long lasting rugged use
  • Removable pivoting handle can be used as a drum tool
  • Beveled front edge makes loading drum simple
  • Additional platform supports can handle smaller diameter drums
Total Ship Wt.(lbs.): 41 (only 1 package) Size: 31.625"W x 21.625"L x 37.625"H Color: Yellow

Uniform Capacity (lb.): 1,000 Transports (qty./type): (1) 55 gallon drum Transports (qty./type): (1) 30 gallon drum
Transports (qty./type): (2) 5 gallon pails Type Drum/Pail: Steel, Plastic, Fiber Rigid Caster Diameter (in.): 6
Rigid Caster Width (in.): 2 Rigid Caster (qty.): 2 Swivel Caster Diameter (in.): 3
Swivel Caster Width (in.): 1-1/4 Swivel Caster (quantity): 1 Caster Material: Mold-on-Rubber
Cradle Height (in.): 1/2 Inside Cradle Length (in.): 23-1/2 Straddle Width (in.): 24
Straddle Length (in.): 16-1/4 Handle: Bung Wrench Handle Width (in.): 10-1/2
Handle Length unattached (in.): 33 Handle Length on Unit (in.): 37-5/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LO-DC-MR
LO-DC-MR

Steel Low Profile Drum Dolly with Mold On Rubber Casters 21-5/8 In. x 31-5/8 In. x 37-5/8 In. 1000 Lb. Capacity Yellow

Reduce injuries caused by manually lifting and moving drums. Transport drums or pails with the low-profile drum caddy. To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Caddy rolls easily on casters. The removable handle doubles as a bung nut wrench and seal remover.

  • High strength steel construction offers long lasting rugged use
  • Removable pivoting handle can be used as a drum tool
  • Beveled front edge makes loading drum simple
  • Additional platform supports can handle smaller diameter drums
Dimensions: 31.625"W x 21.625"L x 37.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215000086 GTIN: 00691215000086
Warranty: -- Shipping Weight: 41 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Transports (qty./type): (1) 55 gallon drum Transports (qty./type): (1) 30 gallon drum
Transports (qty./type): (2) 5 gallon pails Type Drum/Pail: Steel, Plastic, Fiber Rigid Caster Diameter (in.): 6
Rigid Caster Width (in.): 2 Rigid Caster (qty.): 2 Swivel Caster Diameter (in.): 3
Swivel Caster Width (in.): 1-1/4 Swivel Caster (quantity): 1 Caster Material: Mold-on-Rubber
Cradle Height (in.): 1/2 Inside Cradle Length (in.): 23-1/2 Straddle Width (in.): 24
Straddle Length (in.): 16-1/4 Handle: Bung Wrench Handle Width (in.): 10-1/2
Handle Length unattached (in.): 33 Handle Length on Unit (in.): 37-5/8
