LPC-60

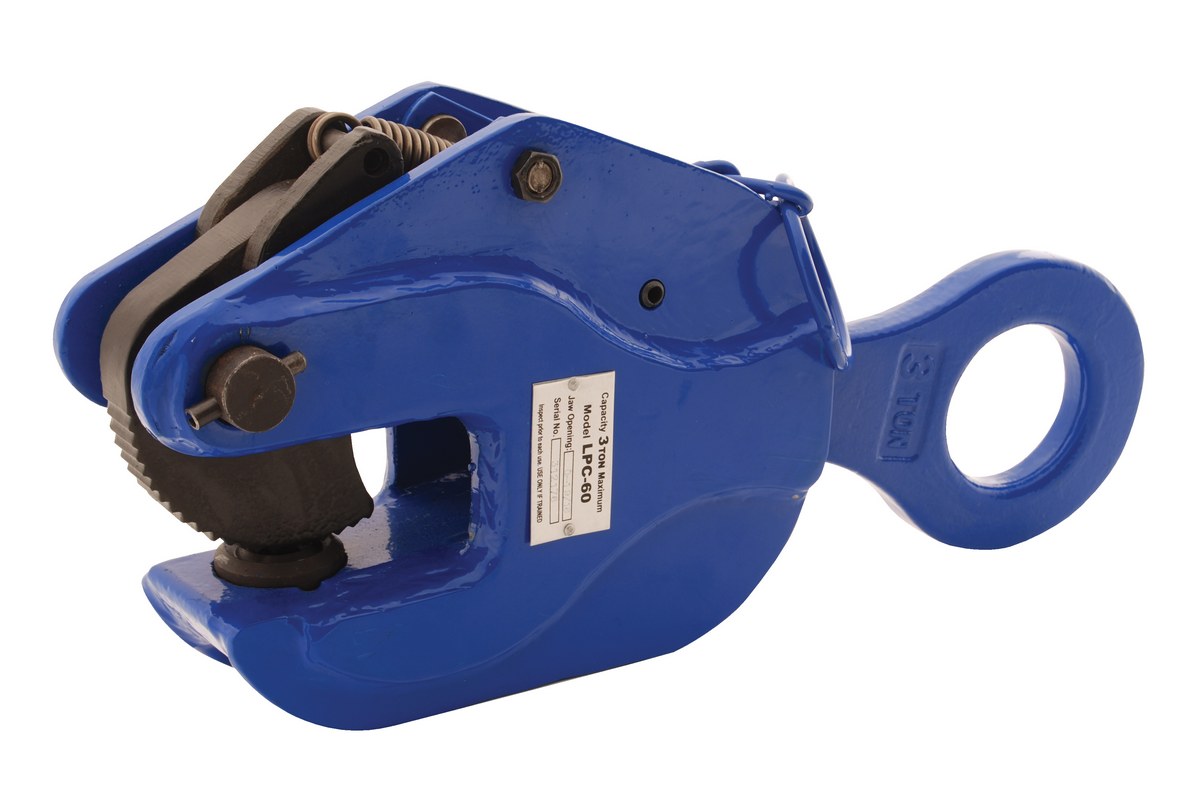

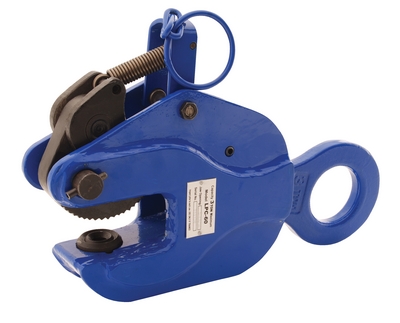

Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

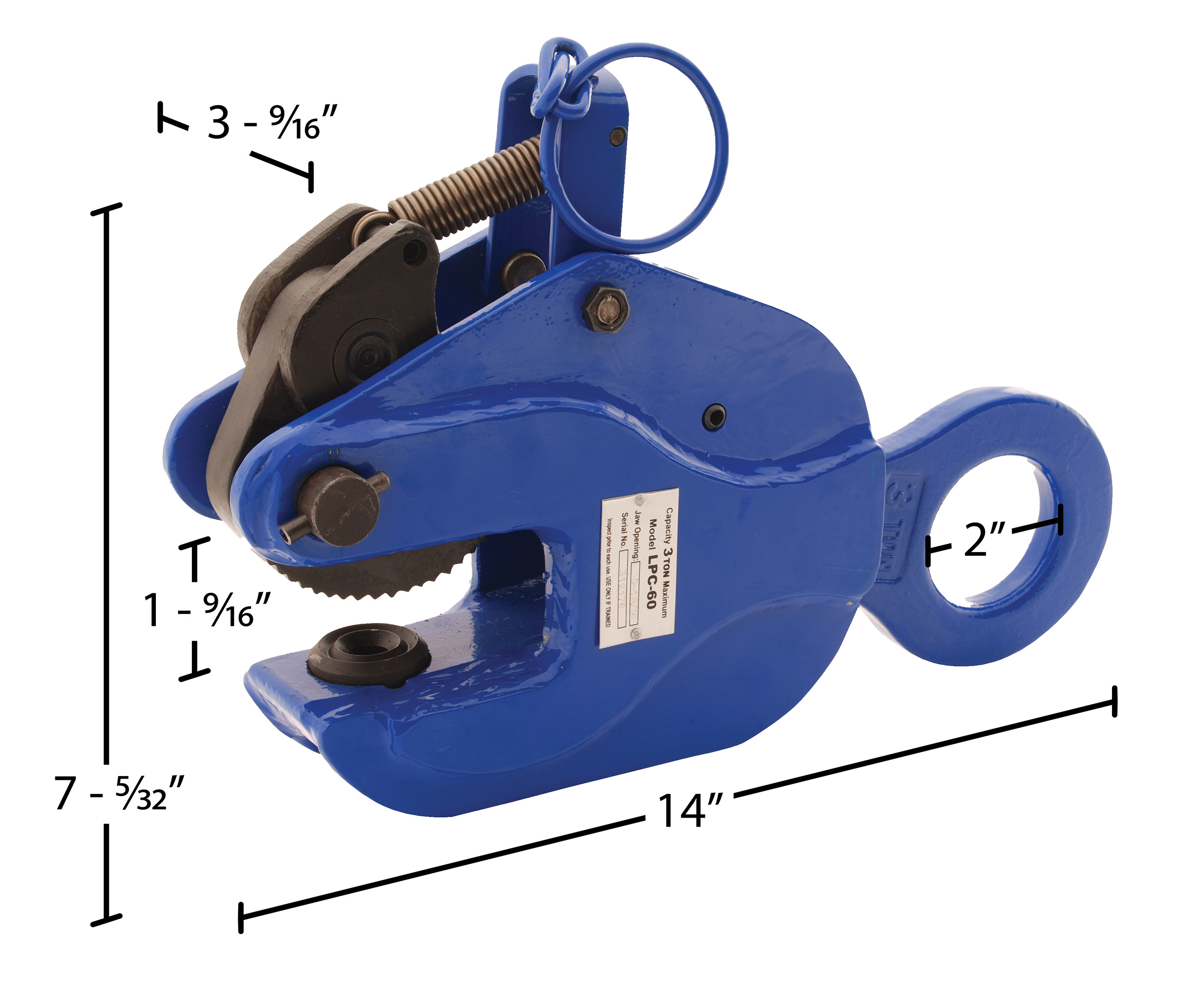

Total Ship Wt.(lbs.): 21 (only 1 package) Size: 4"W x 15"L x 8"H Color: Blue

Uniform Working Load Limit (lb.): 6,000 Min Uniform Plate Weight (lb.): 1,200 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 1.5625 Throat Depth (in.): 3.34 Bale Opening (in.): 1.9

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LPC-60
LPC-60

Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Dimensions: 4"W x 15"L x 8"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054577 GTIN: 00691215054577
Warranty: -- Shipping Weight: 21 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 6,000 Min Uniform Plate Weight (lb.): 1,200 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 1.5625 Throat Depth (in.): 3.34 Bale Opening (in.): 1.9
