Model Details

LPRO-RF-48-16-4

Printer Friendly
LPRO-RF-48-16-4

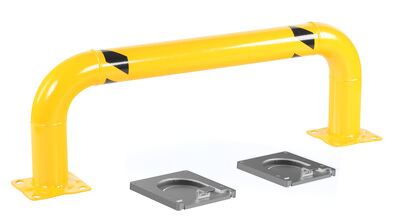

Steel Low Profile Removable Rack Guard 8 In. x 51-1/2 In. x 16 In. Yellow

The surface-mounted steel base plates allow for quick and easy removal of this Low Profile Rack Guard. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then locked into place. Base plate includes four (4) pre-drilled mounting holes.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Total Ship Wt.(lbs.): 77 (only 1 package) Size: 51.5"W x 8"L x 16"H Color: Yellow

Base Plate Width (in.): 8 Base Plate Length (in.): 8 Guard Diameter (in.): 4-1/2
Bolt Hole (qty.): 8 Inside Diameter (in.): 4-1/4 Outside Diameter (in.): 4-1/2
Plate Thickness (in.): 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LPRO-RF-48-16-4
LPRO-RF-48-16-4

Steel Low Profile Removable Rack Guard 8 In. x 51-1/2 In. x 16 In. Yellow

The surface-mounted steel base plates allow for quick and easy removal of this Low Profile Rack Guard. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then locked into place. Base plate includes four (4) pre-drilled mounting holes.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Dimensions: 51.5"W x 8"L x 16"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215067928 GTIN: 00691215067928
Warranty: -- Shipping Weight: 77 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Base Plate Width (in.): 8 Base Plate Length (in.): 8 Guard Diameter (in.): 4-1/2
Bolt Hole (qty.): 8 Inside Diameter (in.): 4-1/4 Outside Diameter (in.): 4-1/2
Plate Thickness (in.): 1/4
