Model Details

MINI-4

Printer Friendly
MINI-4

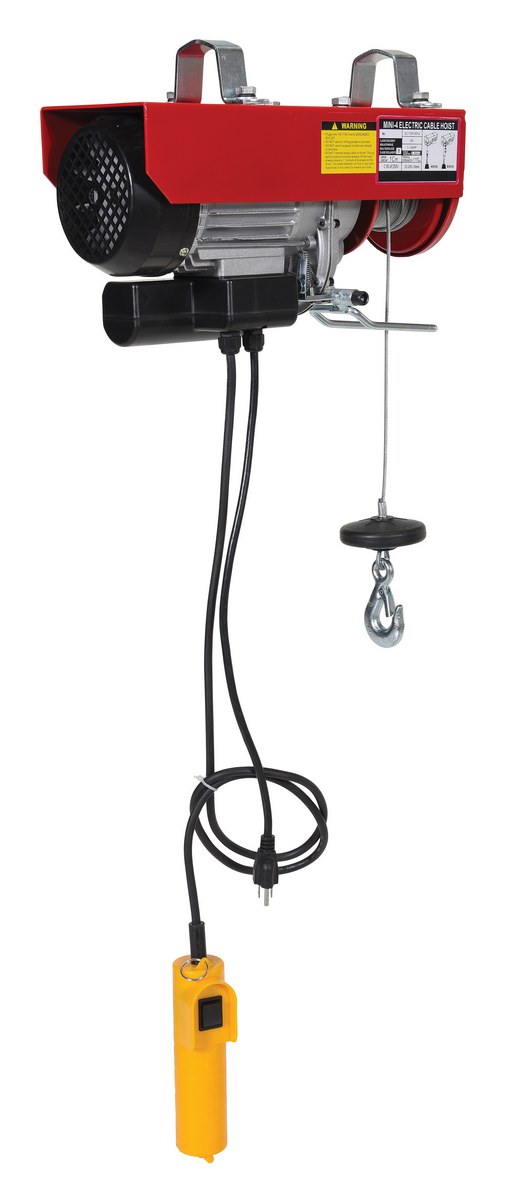

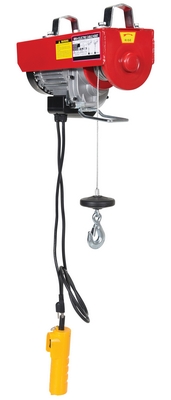

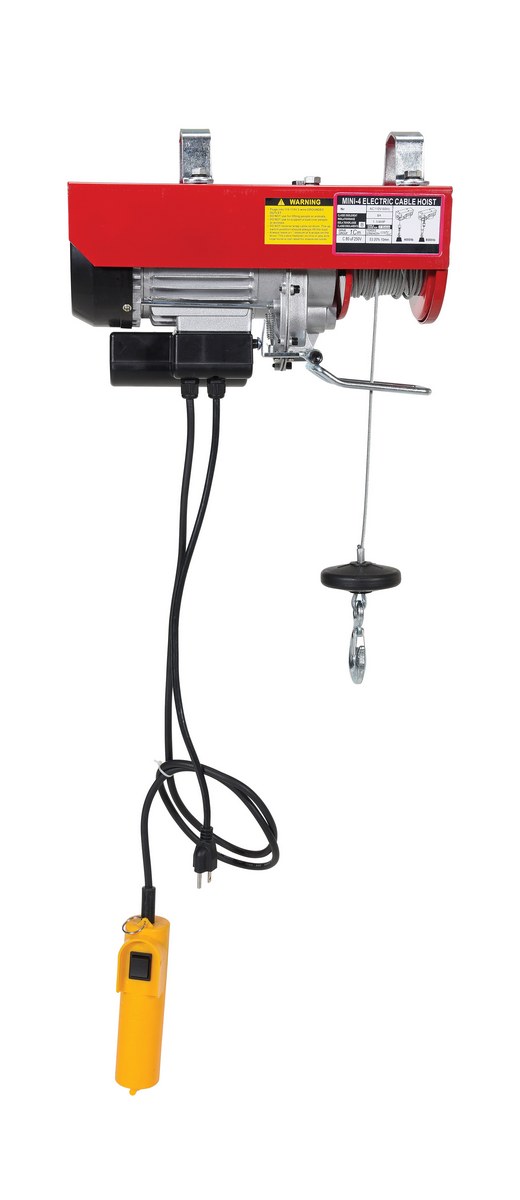

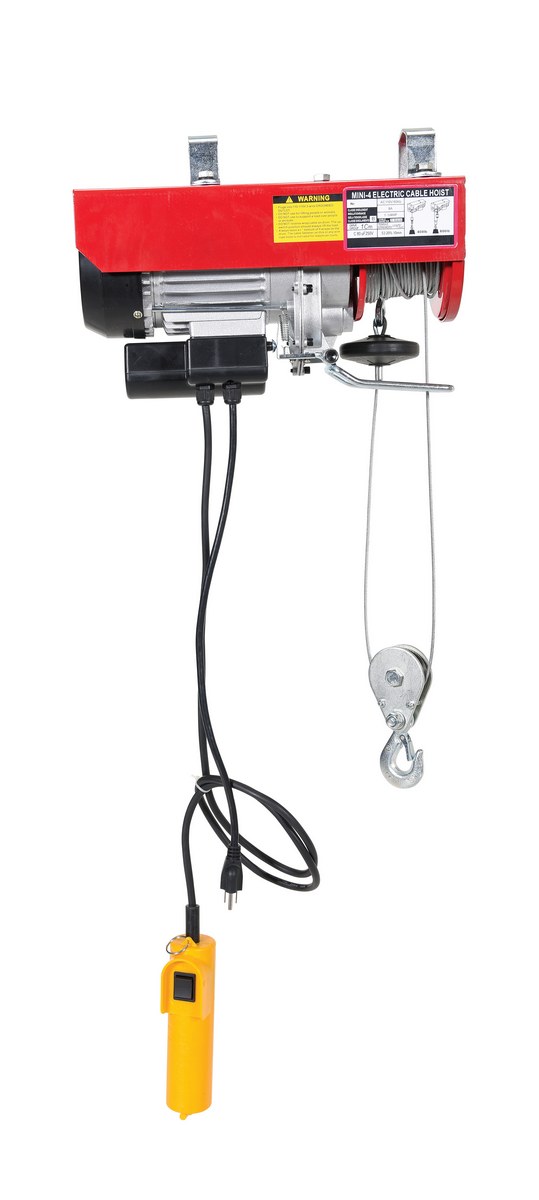

Steel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity Red

This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation
Total Ship Wt.(lbs.): 38 (only 1 package) Size: 5.75"W x 15.125"L x 8.875"H Color: Red

Single-Line Uniform Capacity (lb.): 400 Double-Line Uniform Capacity (lb.): 800 Lifting Speed (ft. per minute): 30
Single-Line Cable Length (ft,): 36 Double-Line Cable Length (ft.): 18 Voltage: 115
Phase: 1 Control Pendant Cable Length (in.): 58

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: MINI-4
MINI-4

Steel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity Red

This mini cable hoist can be used in both single-line and double-line lifting applications. Includes electric motor and hand-held push button controls. Optional swivel hook plate must be ordered for attaching hoist to trolley, (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long
  • Requires 115V AC power source for operation
Dimensions: 5.75"W x 15.125"L x 8.875"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215028394 GTIN: 00691215028394
Warranty: -- Shipping Weight: 38 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Single-Line Uniform Capacity (lb.): 400 Double-Line Uniform Capacity (lb.): 800 Lifting Speed (ft. per minute): 30
Single-Line Cable Length (ft,): 36 Double-Line Cable Length (ft.): 18 Voltage: 115
Phase: 1 Control Pendant Cable Length (in.): 58
