Model Details

MT-3042-LP

Printer Friendly
MT-3042-LP

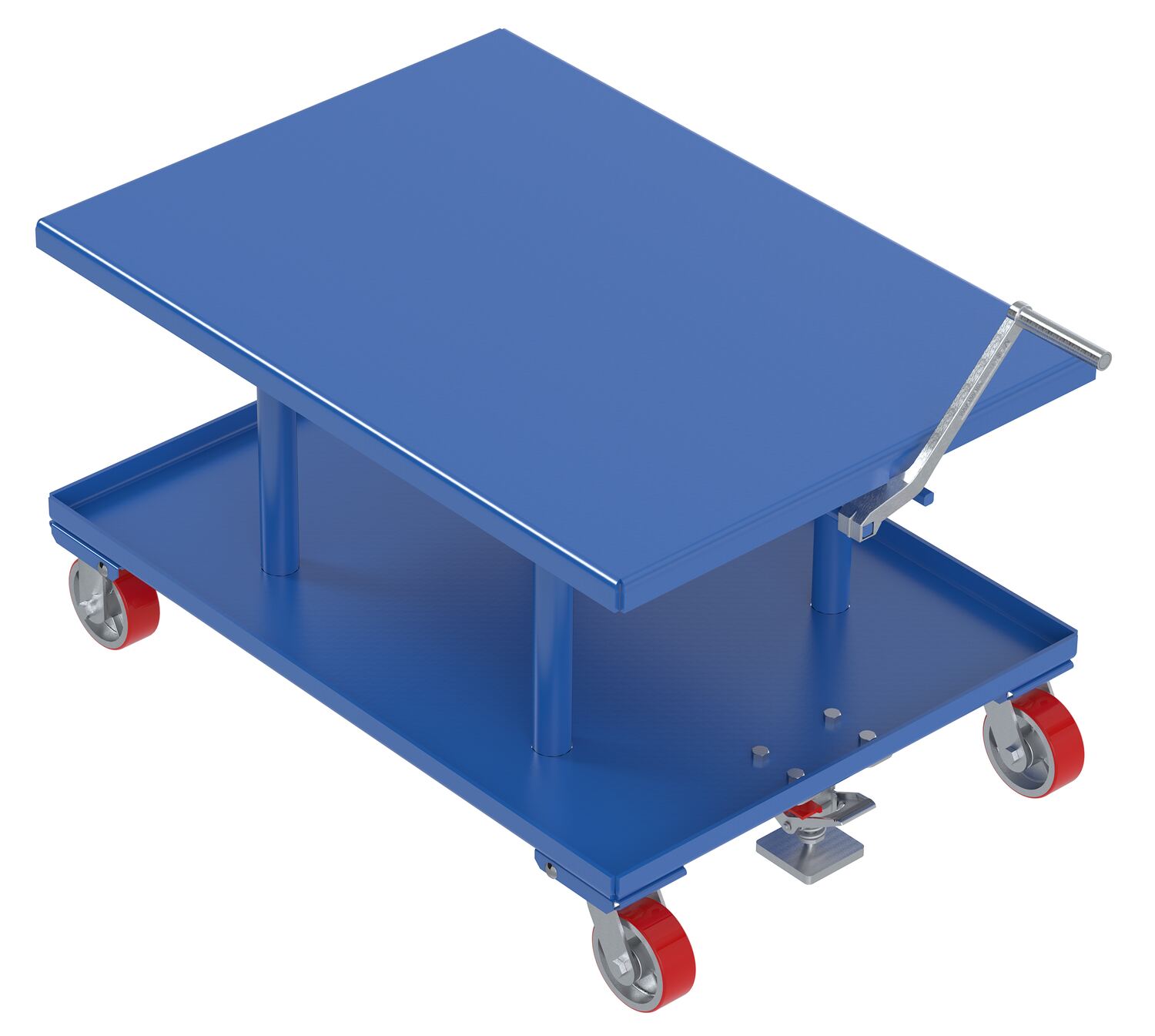

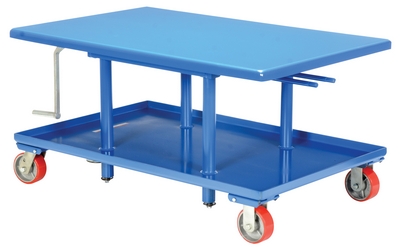

Steel Low Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue

The mechanical post table is an adjustable portable table that is well suited for a wide variety of material handling applications. It moves smoothly on two rigid and two swivel poly-on-steel casters. Includes bolted on adjustable floor lock. Provides positive height adjustment without a downward shift. It features a two-speed manual gear mechanism to move heavy loads.

  • Mechanical screw operation allows precise positioning of platform
  • Manual two-speed hand crank operation makes lifting and lowering quick and easy
  • Two rigid and two swivel casters with floor lock allow the unit to roll smoothly
  • Provides positive height adjustment without the downward shift
Total Ship Wt.(lbs.): 365 (only 1 package) Size: 30"W x 43.875"L x 23.9375"H Color: Blue

Uniform Capacity (lb.): 2000 Platform Width (in.): 30 Platform Length (in.): 42
Lowered Height (in.): 23-15/16 Raised Height (in.): 42-3/16 Operation: Manual
Deck Thickness (in.): 1/4 Lift per Rotation with Heavy Load (in.): 1/8 Lift per Rotation with Light Load (in.): 5/16
Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Type: (2) Rigid (2) Swivel Caster Material: Poly-on-Steel
Max. Travel Distance (in.): 18-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MT-3042-LP
MT-3042-LP

Steel Low Profile Post Table 30 In. x 42 In. 2000 Lb. Capacity Blue

The mechanical post table is an adjustable portable table that is well suited for a wide variety of material handling applications. It moves smoothly on two rigid and two swivel poly-on-steel casters. Includes bolted on adjustable floor lock. Provides positive height adjustment without a downward shift. It features a two-speed manual gear mechanism to move heavy loads.

  • Mechanical screw operation allows precise positioning of platform
  • Manual two-speed hand crank operation makes lifting and lowering quick and easy
  • Two rigid and two swivel casters with floor lock allow the unit to roll smoothly
  • Provides positive height adjustment without the downward shift
Dimensions: 30"W x 43.875"L x 23.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215028721 GTIN: 00691215028721
Warranty: -- Shipping Weight: 365 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Platform Width (in.): 30 Platform Length (in.): 42
Lowered Height (in.): 23-15/16 Raised Height (in.): 42-3/16 Operation: Manual
Deck Thickness (in.): 1/4 Lift per Rotation with Heavy Load (in.): 1/8 Lift per Rotation with Light Load (in.): 5/16
Caster Quantity/Diameter/Width (in.): (4) 5 x 2 Caster Type: (2) Rigid (2) Swivel Caster Material: Poly-on-Steel
Max. Travel Distance (in.): 18-1/4
