Model Details

P-JIB-4

P-JIB-4

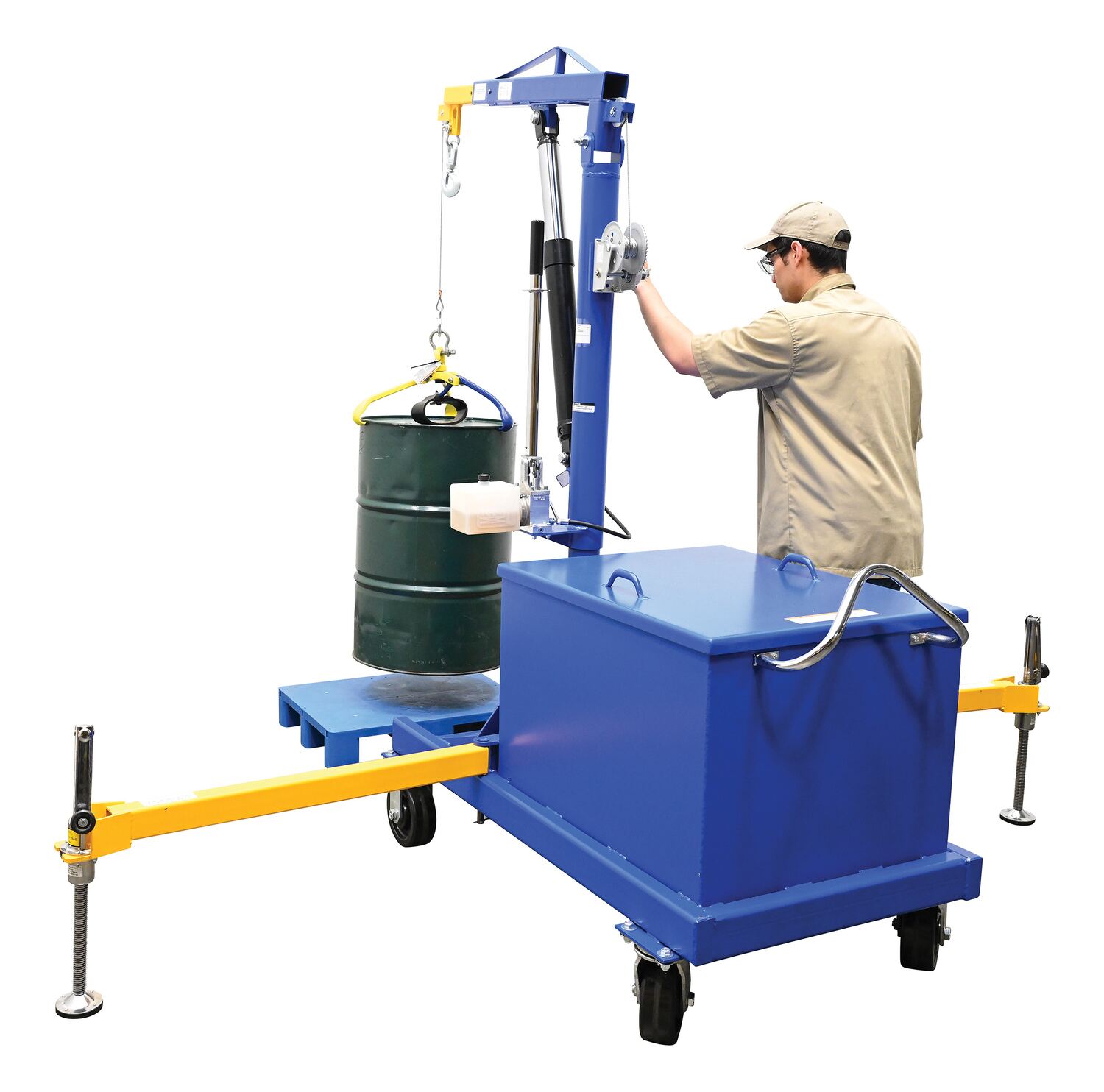

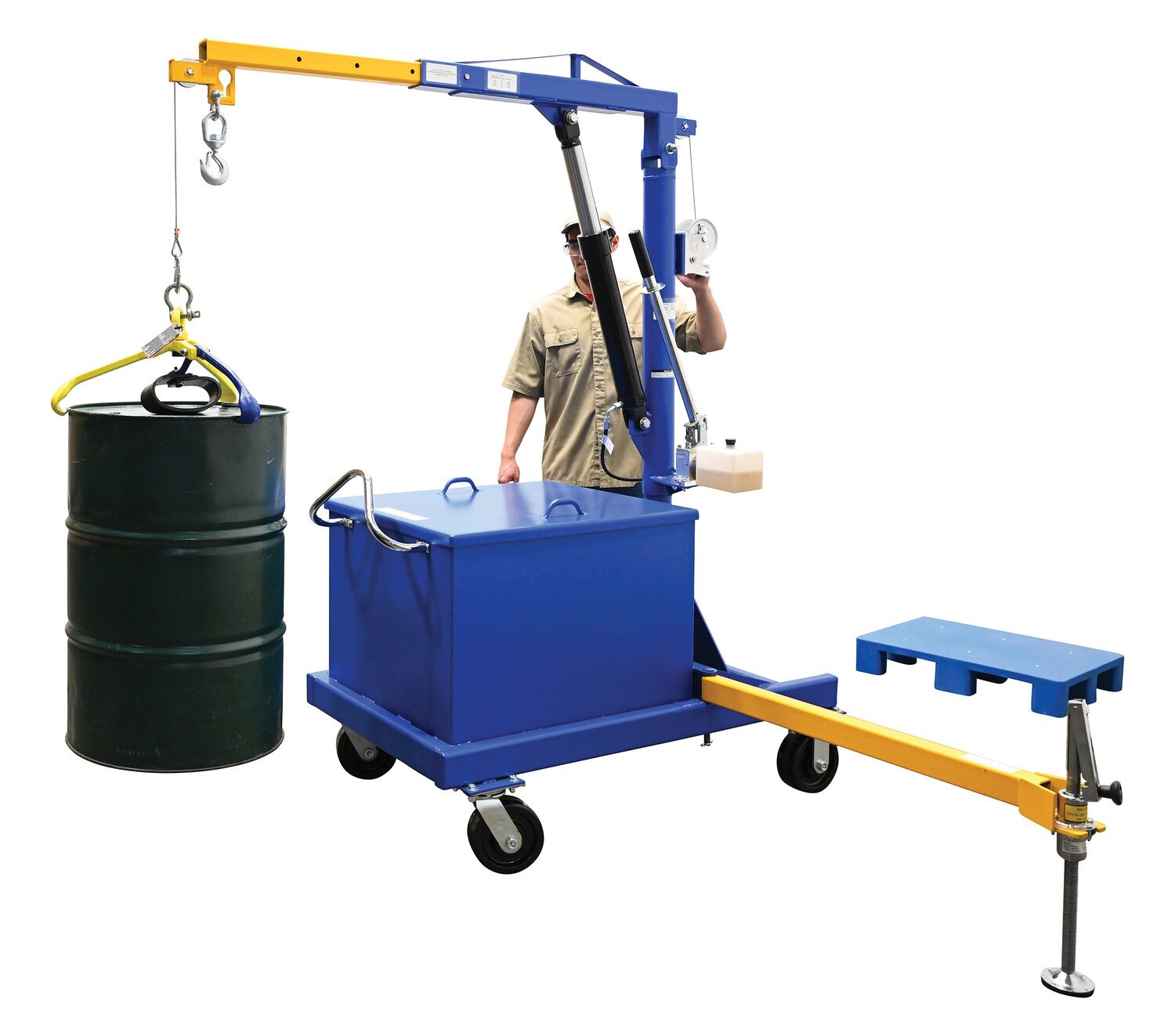

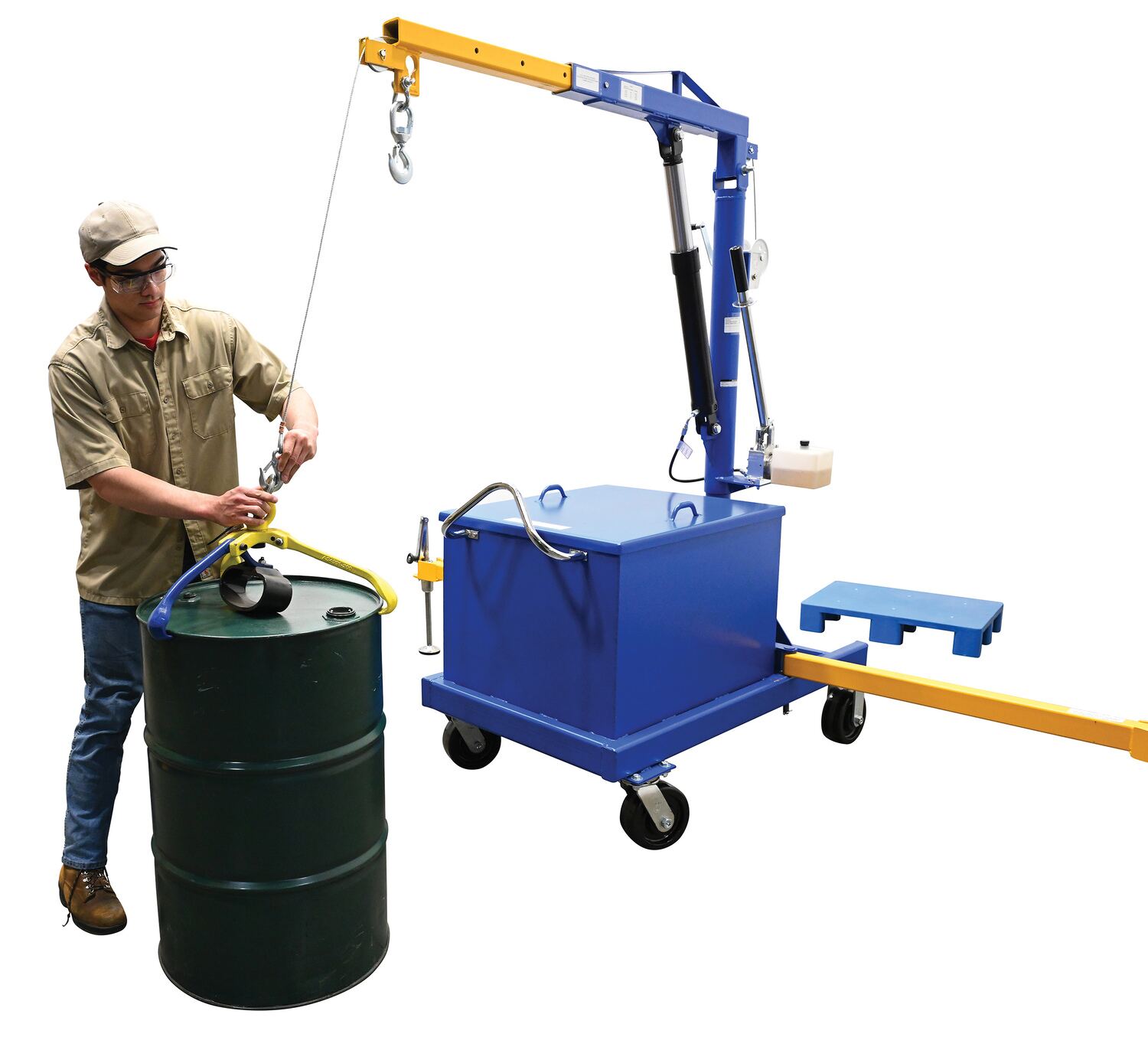

Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity Blue

The portable Cantilever hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond the frame is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

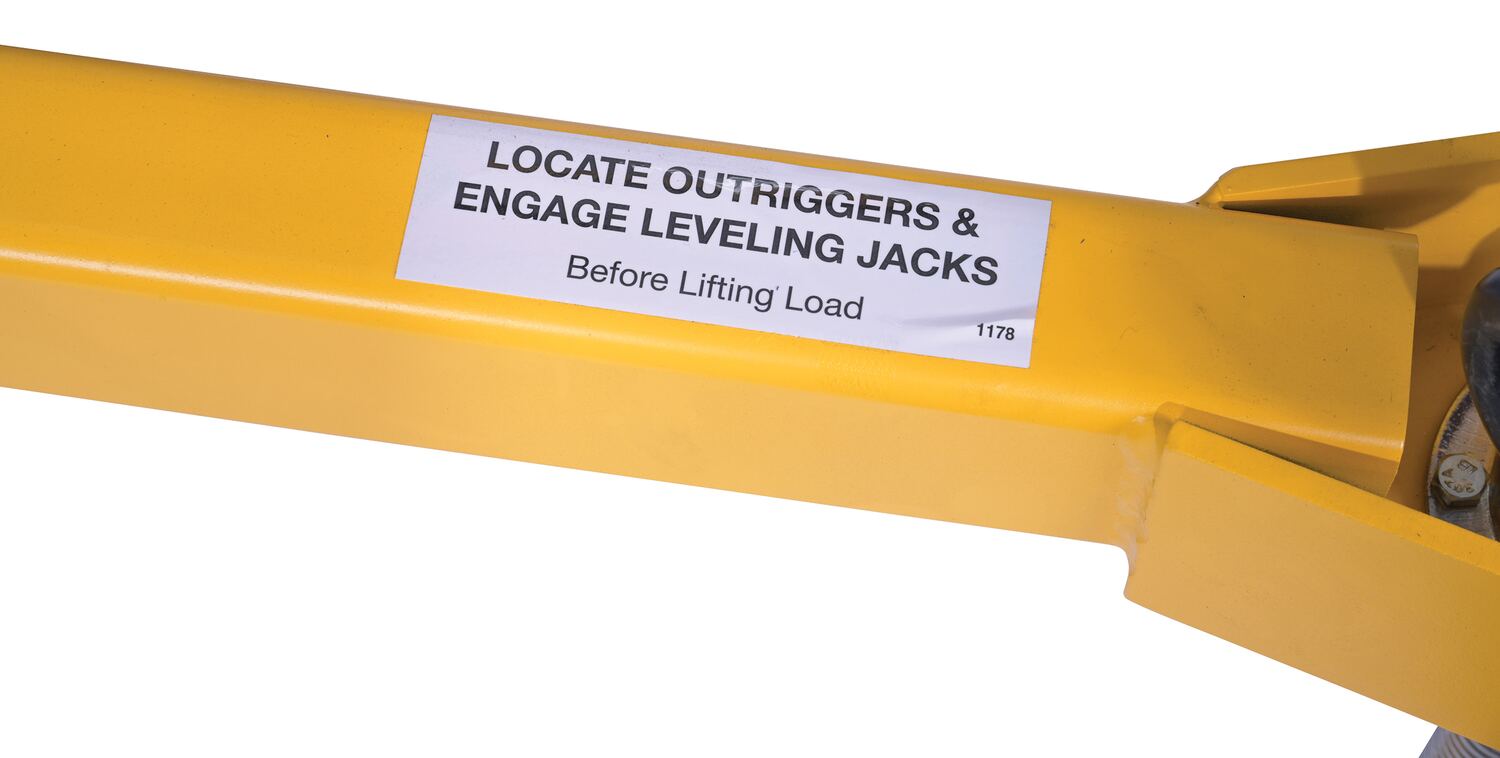

  • Outriggers increase stability with counter-balanced/cantilever design

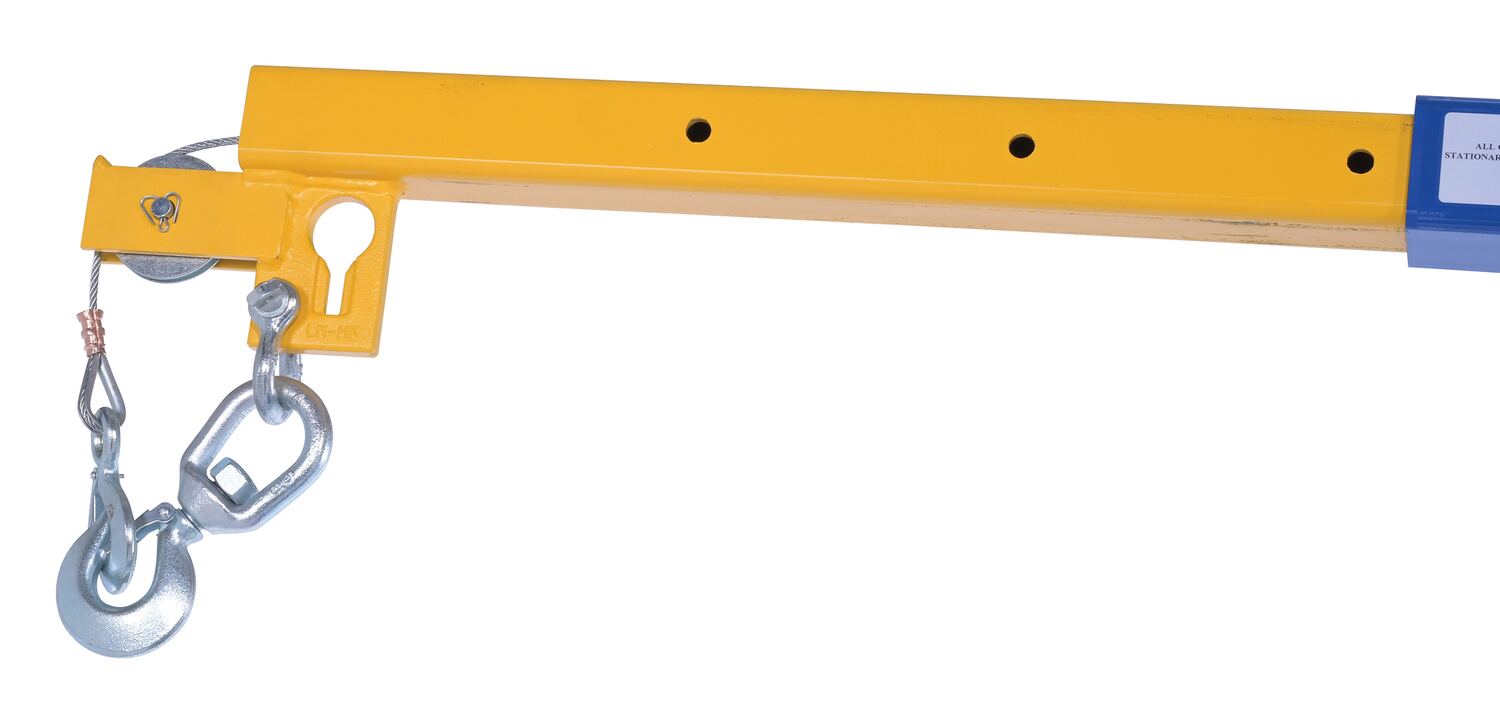

  • Adjustable and extendable boom
  • Double acting hydraulic hand pump for simple use
  • Boom swivels 360 degrees
Total Ship Wt.(lbs.): 950 (only 1 package) Size: 35.6875"W x 113.375"L x 89"H Color: Blue

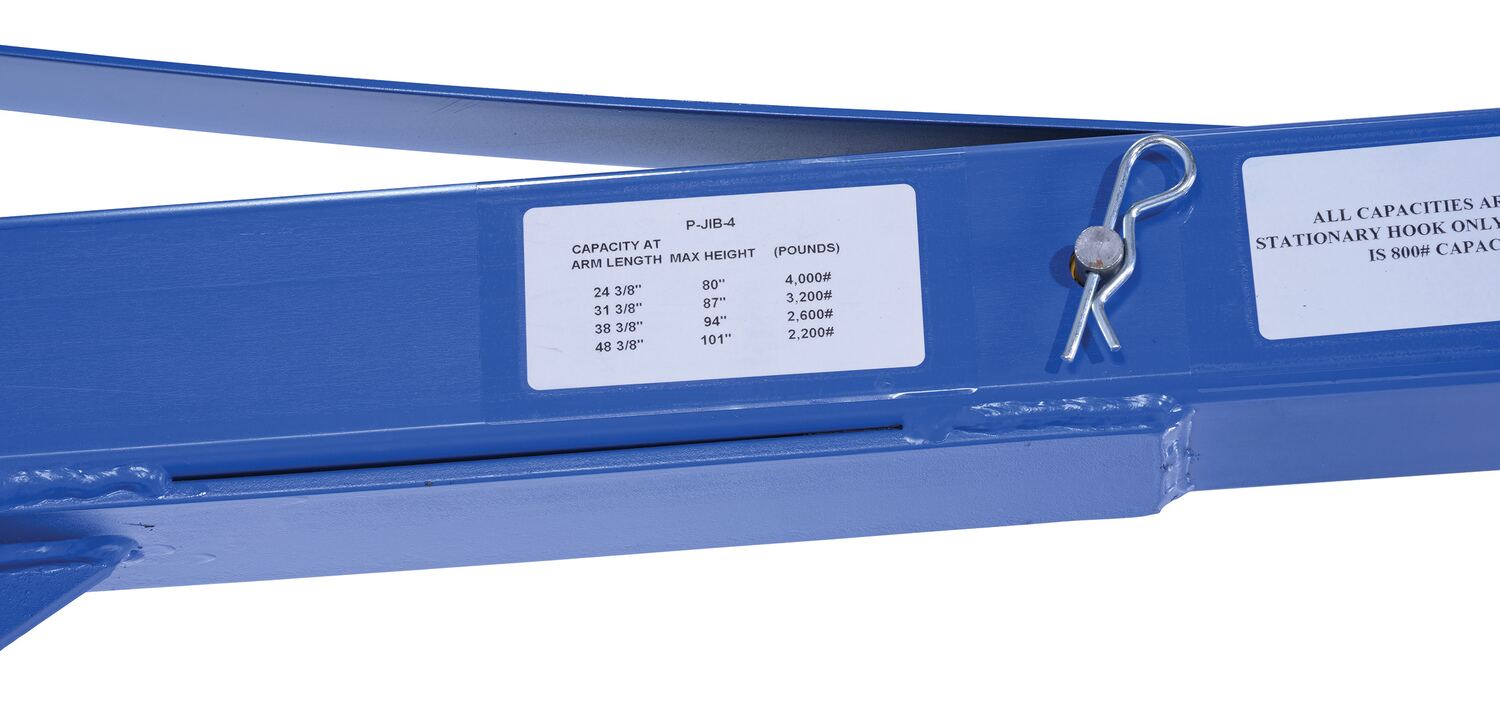

Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000 Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200 Uniform Capacity - Arm Length 38-3/8 inches (lb.): 2,600
Uniform Capacity - Arm Length 45 3/8 inches (lb.): 2200 Overall Length Retracted (in.): 92-3/8 Caster Quantity/Diameter/Width (in.): (4) 8 x 3

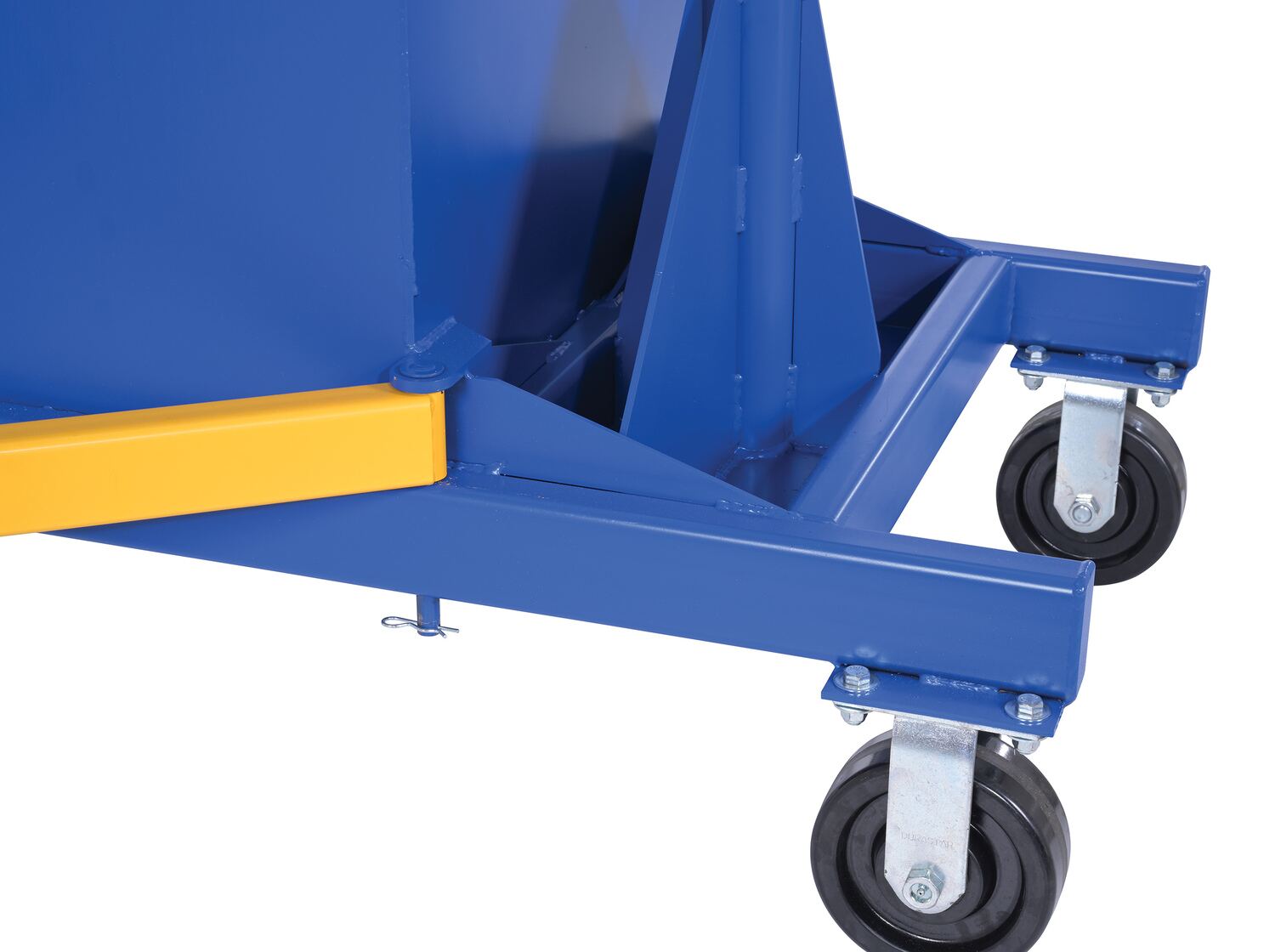

Caster Type: (2) Rigid (2) Swivel Caster Material: Phenolic Maximum Arm Length Beyond Frame (in): 50-3/8
Hand Winch Capacity (lbs.): 800 Boom Rotate Degree: 360

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: P-JIB-4


P-JIB-4

Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 4000 Lb. Capacity Blue

The portable Cantilever hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond the frame is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

  • Outriggers increase stability with counter-balanced/cantilever design
  • Adjustable and extendable boom
  • Double acting hydraulic hand pump for simple use
  • Boom swivels 360 degrees
Dimensions: 35.6875"W x 113.375"L x 89"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215029926 GTIN: 00691215029926
Warranty: -- Shipping Weight: 950 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity - Arm Length 24-3/8 inches (lb.): 4,000 Uniform Capacity - Arm Length 31-3/8 inches (lb.): 3200 Uniform Capacity - Arm Length 38-3/8 inches (lb.): 2,600
Uniform Capacity - Arm Length 45 3/8 inches (lb.): 2200 Overall Length Retracted (in.): 92-3/8 Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Caster Type: (2) Rigid (2) Swivel Caster Material: Phenolic Maximum Arm Length Beyond Frame (in): 50-3/8
Hand Winch Capacity (lbs.): 800 Boom Rotate Degree: 360
