Model Details

PALL-200

PALL-200

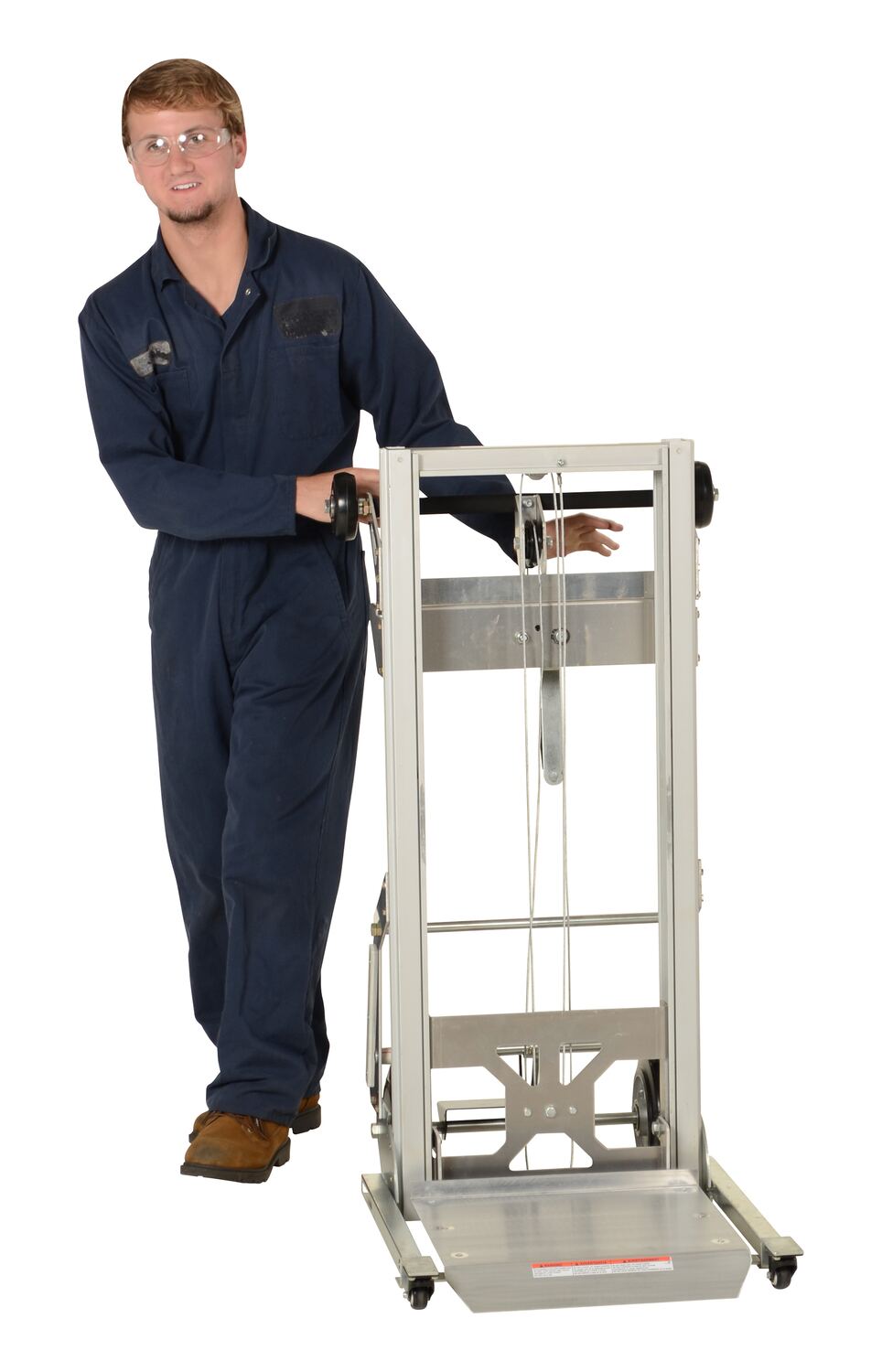

Aluminum Portable Load Lifter 32-7/16 In. x 12-1/8 In. x 44-15/16 In. 200 Lb. Capacity Silver

The portable Aluminum load lifter is durable, lightweight, and constructed of corrosion resistant aluminum. Ideal in shipping and receiving areas to load and unload pallet racking and to move parts. This unit folds up and down for compact storage and easy transportation. The ultra low profile design with ramp is great for appliance, office, and furniture stores. Features a foot actuated brake.

  • Durable, lightweight, and constructed of corrosion resistant aluminum
  • Ideal to load and unload pallet racking and to move parts
  • Folds up and down for compact storage and easy transportation
  • Low profile design with ramp is great for stores

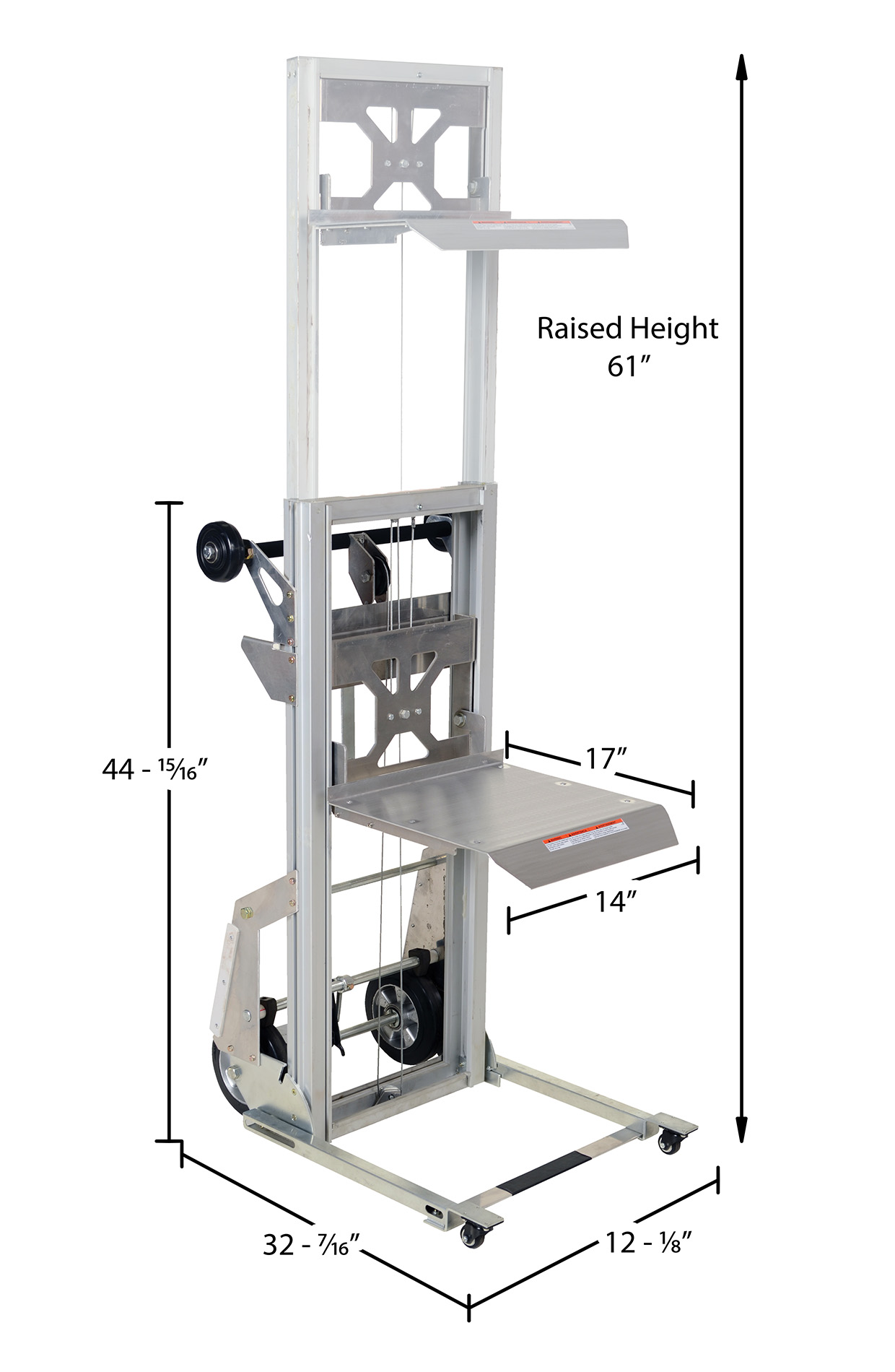

Total Ship Wt.(lbs.): 105 (only 1 package) Size: 12.125"W x 32.4375"L x 44.9375"H Color: Silver

Uniform Capacity (lb.): 200 Platform Width (in.): 17 Platform Length (in.): 14
Lowered Height (in.): zero Raised Height (in.): 61 Load Center (in.): 7
Straddle Width (in.): 17-1/2 Front Caster Diameter (in.): 1-3/4 Front Caster Width (in.): 7/8
Rear Caster Diameter (in.): 7-3/4 Rear Caster Width (in.): 2 Handle Height (in.): 42
Collapsed Width (in.): 21-1/8 Collapsed Length (in.): 16-3/8 Collapsed Height (in.): 44-5/16
Lift Per Crank (in.): 3/4 Caster Material: Mold on Rubber Platform Overall Size WxL Not Including Bent Lip (in.): 16-1/2 x 16-3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PALL-200


PALL-200

Aluminum Portable Load Lifter 32-7/16 In. x 12-1/8 In. x 44-15/16 In. 200 Lb. Capacity Silver

The portable Aluminum load lifter is durable, lightweight, and constructed of corrosion resistant aluminum. Ideal in shipping and receiving areas to load and unload pallet racking and to move parts. This unit folds up and down for compact storage and easy transportation. The ultra low profile design with ramp is great for appliance, office, and furniture stores. Features a foot actuated brake.

  • Durable, lightweight, and constructed of corrosion resistant aluminum
  • Ideal to load and unload pallet racking and to move parts
  • Folds up and down for compact storage and easy transportation
  • Low profile design with ramp is great for stores
Dimensions: 12.125"W x 32.4375"L x 44.9375"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215067461 GTIN: 00691215067461
Warranty: -- Shipping Weight: 105 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 200 Platform Width (in.): 17 Platform Length (in.): 14
Lowered Height (in.): zero Raised Height (in.): 61 Load Center (in.): 7
Straddle Width (in.): 17-1/2 Front Caster Diameter (in.): 1-3/4 Front Caster Width (in.): 7/8
Rear Caster Diameter (in.): 7-3/4 Rear Caster Width (in.): 2 Handle Height (in.): 42
Collapsed Width (in.): 21-1/8 Collapsed Length (in.): 16-3/8 Collapsed Height (in.): 44-5/16
Lift Per Crank (in.): 3/4 Caster Material: Mold on Rubber Platform Overall Size WxL Not Including Bent Lip (in.): 16-1/2 x 16-3/4
