Model Details

PEL-88A-D3

Printer Friendly
PEL-88A-D3

Aluminum Quick Lift DC Powered Lift 57 In. Raised Height 175 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning

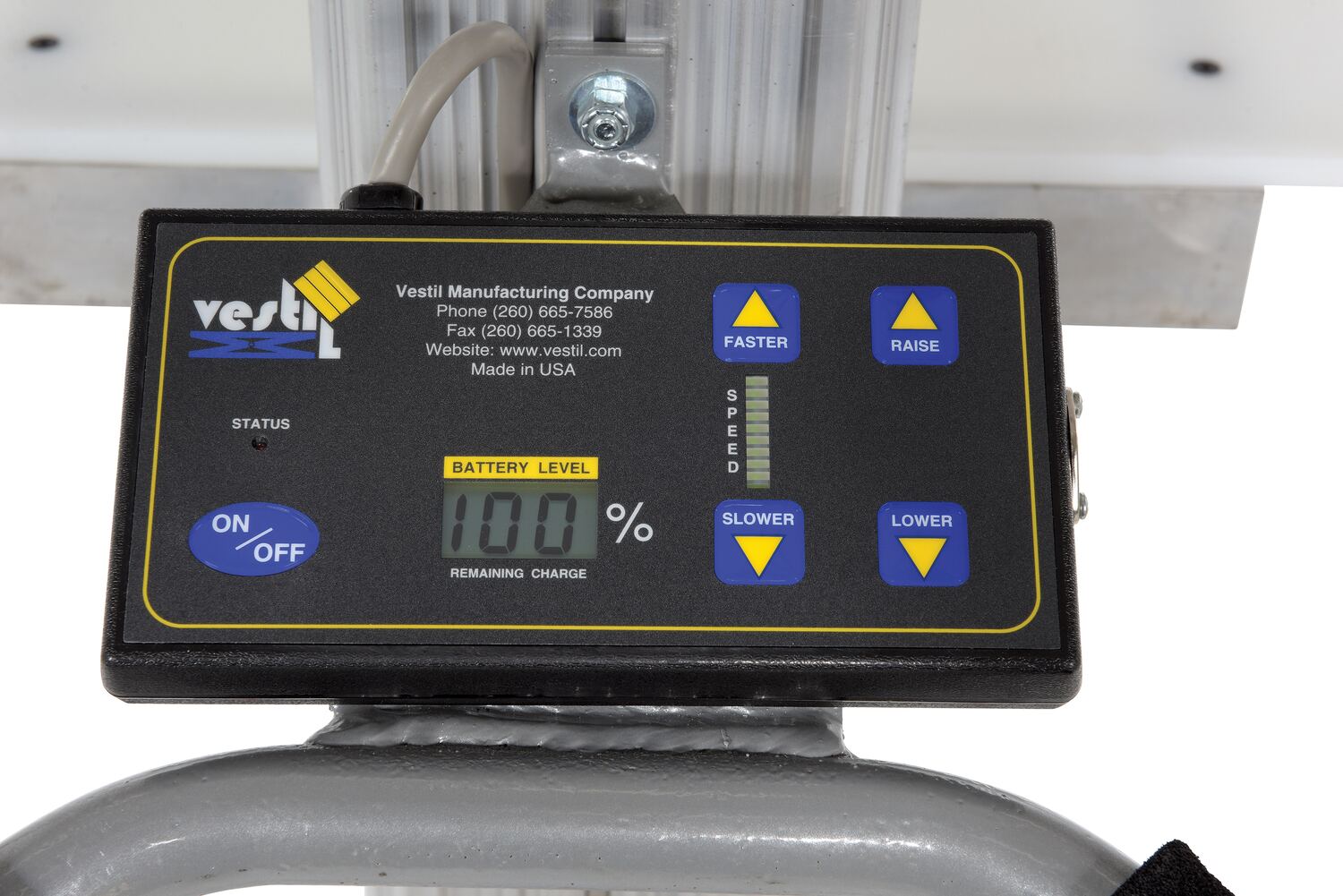

  • Touch-pad control allows for easy operation
Total Ship Wt.(lbs.): 205 (only 1 package) Size: 23.5"W x 36.125"L x 70.1875"H Color: Silver

Uniform Capacity (lb.): 175 Lowered Height (in.): 5-1/2 Raised Height (in.): 57
Caster Diameter (in.): 3 Caster Type: (2) Swivel (2) Swivel with Brake Caster Material: Poly-on-Poly
DC Voltage: 24 AC Charger Voltage: 115 Horizontal Load Center (in.): 9
Platform Width (in.): 23-1/2 Platform Length (in.): 18-1/2 Platform Thickness (in.): 1/2
Lift Speed (in./second) Loaded: 17 Lift Speed (in./second) Unloaded: 1

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PEL-88A-D3
PEL-88A-D3

Aluminum Quick Lift DC Powered Lift 57 In. Raised Height 175 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation
Dimensions: 23.5"W x 36.125"L x 70.1875"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215029636 GTIN: 00691215029636
Warranty: -- Shipping Weight: 205 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 175 Lowered Height (in.): 5-1/2 Raised Height (in.): 57
Caster Diameter (in.): 3 Caster Type: (2) Swivel (2) Swivel with Brake Caster Material: Poly-on-Poly
DC Voltage: 24 AC Charger Voltage: 115 Horizontal Load Center (in.): 9
Platform Width (in.): 23-1/2 Platform Length (in.): 18-1/2 Platform Thickness (in.): 1/2
Lift Speed (in./second) Loaded: 17 Lift Speed (in./second) Unloaded: 1
