Model Details

PLH-120-5

Printer Friendly
PLH-120-5

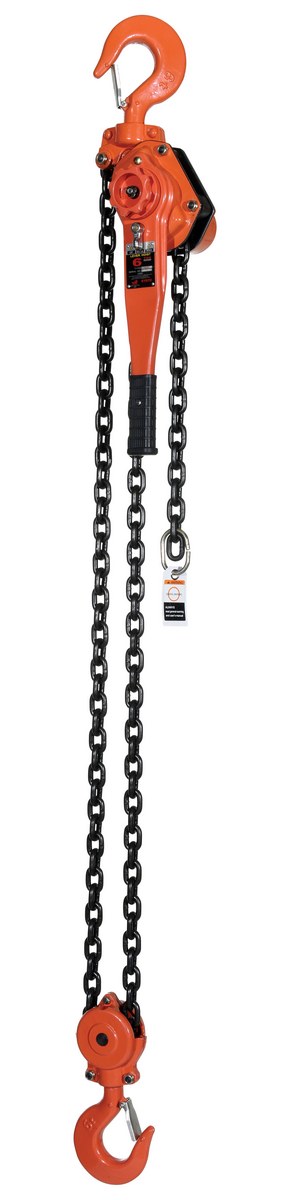

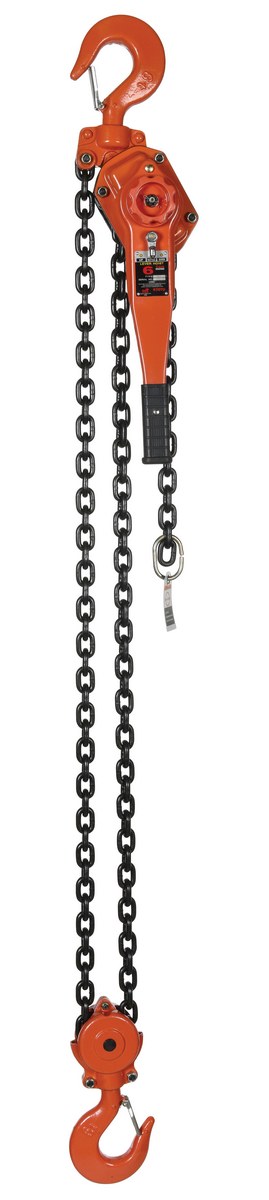

Steel Professional Lever Hoist 5 Ft. Lift Height 12,000 Lb. Capacity Orange

The professional lever hoist is ideal for manufacturing and industrial facilities. The hoists can be used at any angle during operation by utilizing the load system guide chain. The unit features a 50 fifty percent wider ratchet gear and brake cover.

  • Upper and lower swivel hooks
  • 5' chain length
  • High impact restraint gear case
  • Unit is tested to 150% of rated capacity
Total Ship Wt.(lbs.): 68 (only 1 package) Size: 5.5"W x 6"L x 19"H Color: Orange

Uniform Capacity (lb.): 12000 Handle Length (in.): 14" Chain Length (ft.): 5
Alloy Chain Grade: 100 Chain Length (in.): 5 Lever Resistance (lb.): 85
Chain Thickness (in.): .285

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PLH-120-5
PLH-120-5

Steel Professional Lever Hoist 5 Ft. Lift Height 12,000 Lb. Capacity Orange

The professional lever hoist is ideal for manufacturing and industrial facilities. The hoists can be used at any angle during operation by utilizing the load system guide chain. The unit features a 50 fifty percent wider ratchet gear and brake cover.

  • Upper and lower swivel hooks
  • 5' chain length
  • High impact restraint gear case
  • Unit is tested to 150% of rated capacity
Dimensions: 5.5"W x 6"L x 19"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215111140 GTIN: 00691215111140
Warranty: -- Shipping Weight: 68 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 12000 Handle Length (in.): 14" Chain Length (ft.): 5
Alloy Chain Grade: 100 Chain Length (in.): 5 Lever Resistance (lb.): 85
Chain Thickness (in.): .285
