Model Details

PLH-15-10

- Temporarily Unavailable - Please Contact Sales

Printer Friendly

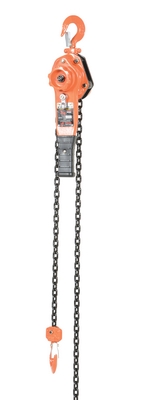

PLH-15-10

Steel Professional Lever Hoist 10 Ft. Lift Height 1,500 Lb. Capacity Orange

This versatile professional lever hoist is suitable for lifting, pulling, and lashing the load in many applications. Ideal for confined spaces and can be used at any angle. This lever hoist has a wider hardened ratchet gear, high impact restraint gear case and brake cover. Free wheeling in neutral position serves to quickly attach the load or pull the chain thru the hoist in both directions. With an alloy chain for more strength and less weight. Upper and lower swivel hooks with deformation indicators. Minimum braking load is four (4) times of rated capacity. Fully enclosed brake system. Issued with an individual test certificate.

  • Alloy steel chain grade 100 offers more strength and less weight
  • Tested to one-hundred and fifty (150) percent of the rated capacity
  • Manufactured to ISO-9002 quality standards
  • Rugged storage bag is included for easy transference from workplace to workplace
Total Ship Wt.(lbs.): 19 (only 1 package) Size: 7"W x 13.25"L x 5"H Color: Orange

Uniform Capacity (lb.): 1,500 Standard Lift (ft.): 10 Minimum Distance Between Hooks (in.): 11
Handle Length (in.): 11 Alloy Chain Grade: 100 Chain Length (in.): 10
Lever Resistance (lb.): 58 Chain Thickness (in.): .285

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PLH-15-10
PLH-15-10

Steel Professional Lever Hoist 10 Ft. Lift Height 1,500 Lb. Capacity Orange

This versatile professional lever hoist is suitable for lifting, pulling, and lashing the load in many applications. Ideal for confined spaces and can be used at any angle. This lever hoist has a wider hardened ratchet gear, high impact restraint gear case and brake cover. Free wheeling in neutral position serves to quickly attach the load or pull the chain thru the hoist in both directions. With an alloy chain for more strength and less weight. Upper and lower swivel hooks with deformation indicators. Minimum braking load is four (4) times of rated capacity. Fully enclosed brake system. Issued with an individual test certificate.

  • Alloy steel chain grade 100 offers more strength and less weight
  • Tested to one-hundred and fifty (150) percent of the rated capacity
  • Manufactured to ISO-9002 quality standards
  • Rugged storage bag is included for easy transference from workplace to workplace
Dimensions: 7"W x 13.25"L x 5"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215030137 GTIN: 00691215030137
Warranty: -- Shipping Weight: 19 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Standard Lift (ft.): 10 Minimum Distance Between Hooks (in.): 11
Handle Length (in.): 11 Alloy Chain Grade: 100 Chain Length (in.): 10
Lever Resistance (lb.): 58 Chain Thickness (in.): .285
