Model Details

PM1-1532-MINI-FD

PM1-1532-MINI-FD

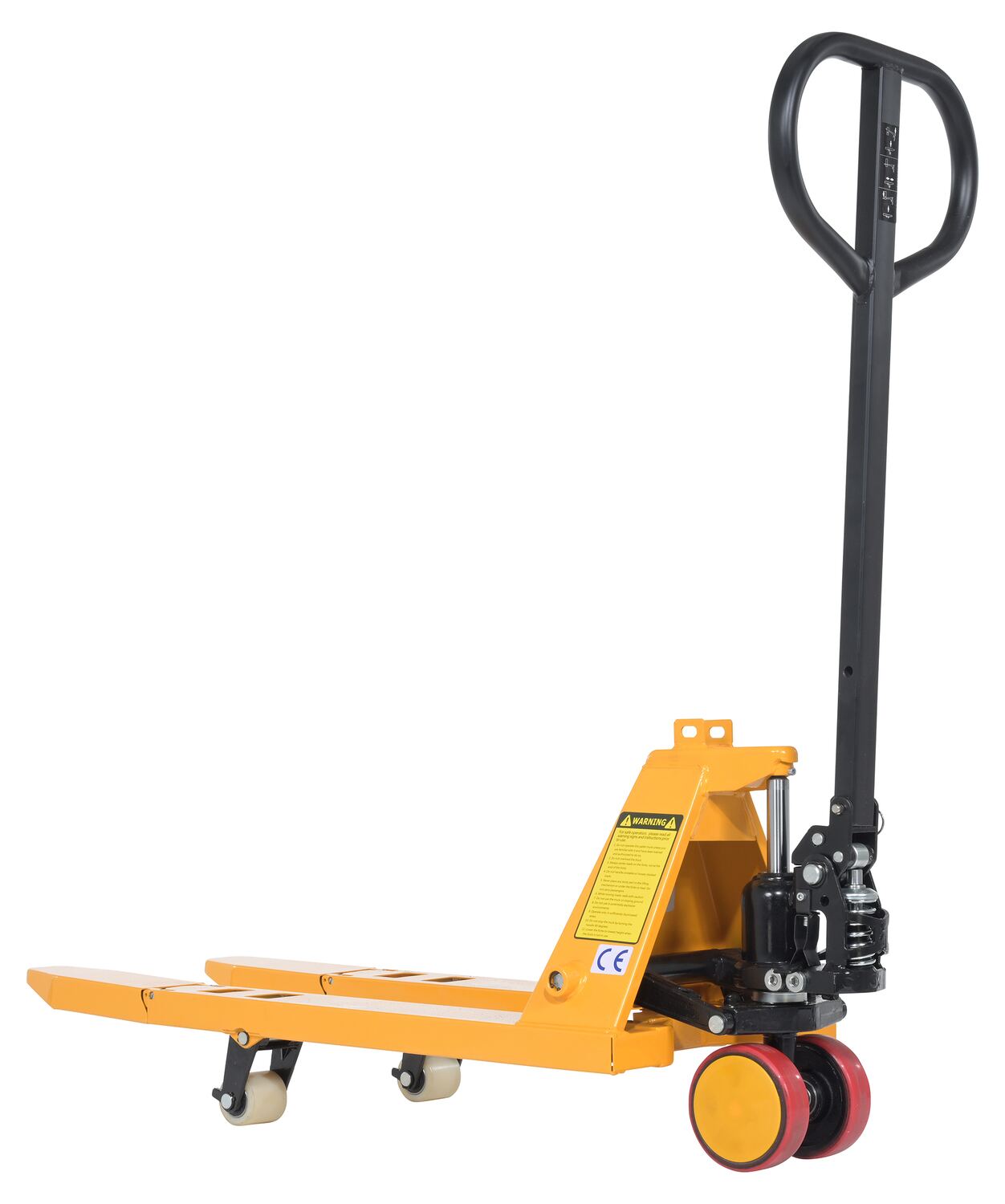

Steel Mini Hand Pallet Truck Fold Down 45 In. x 15 In. x 45 In. 1100 Lb. Capacity Yellow

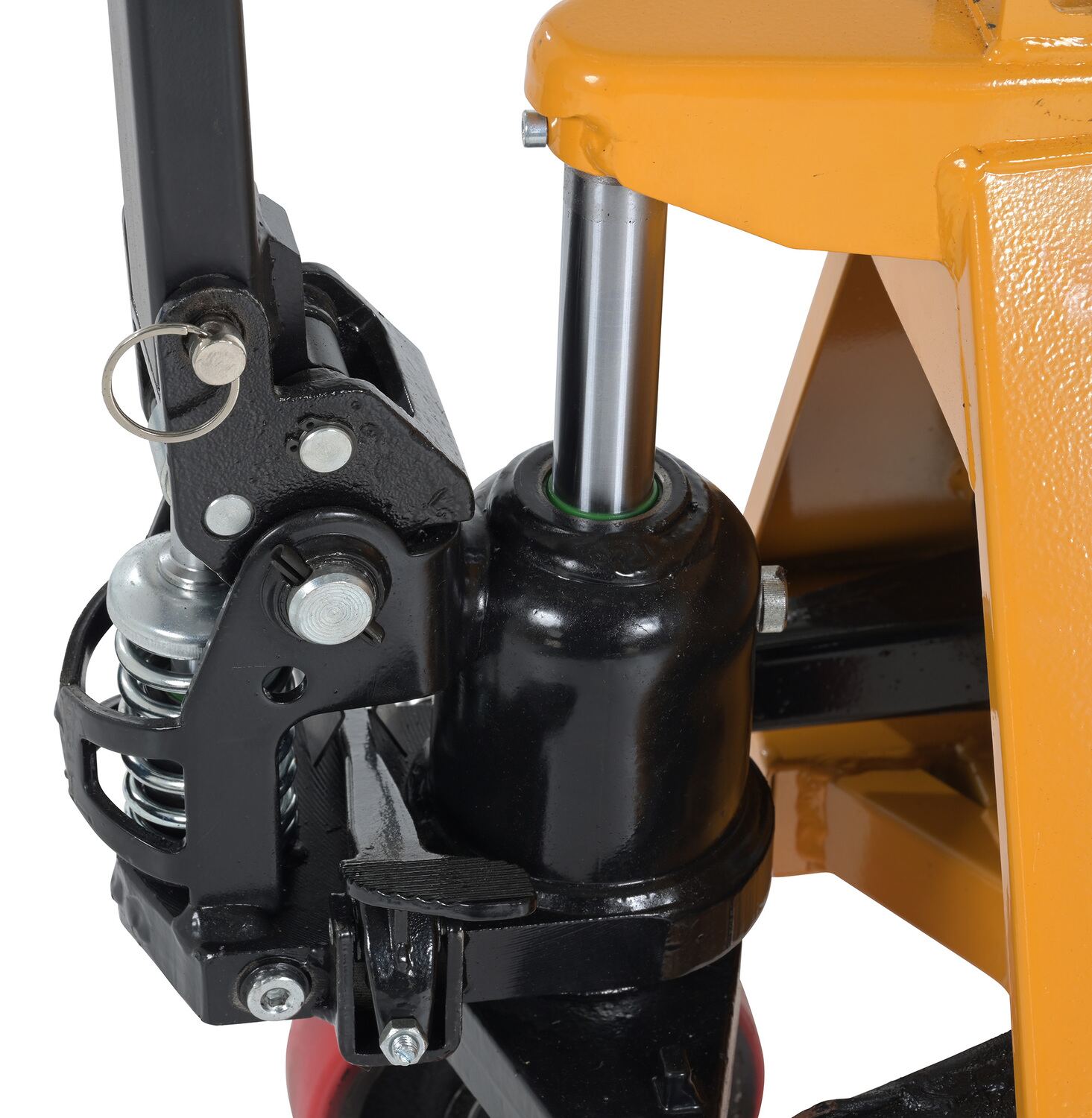

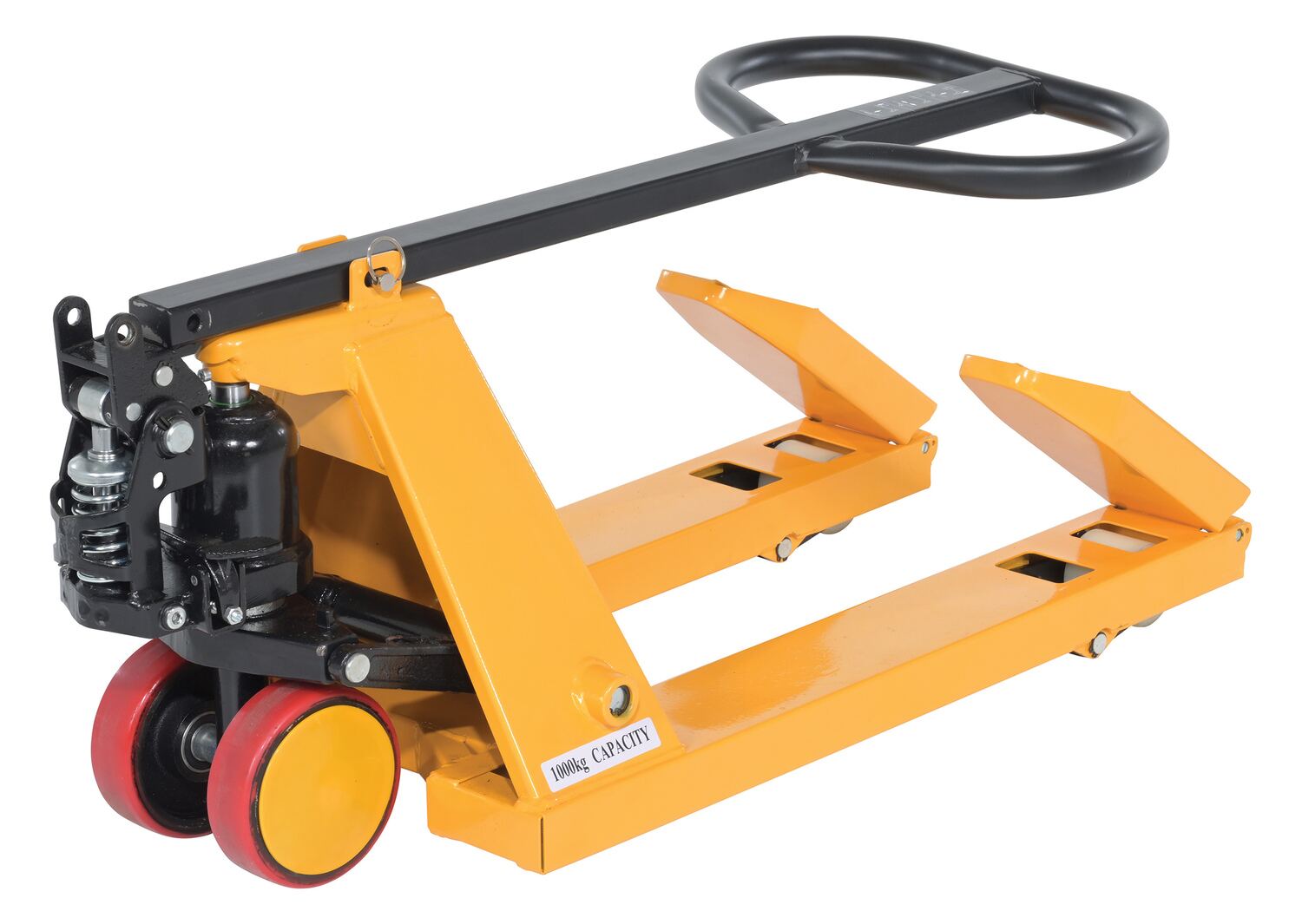

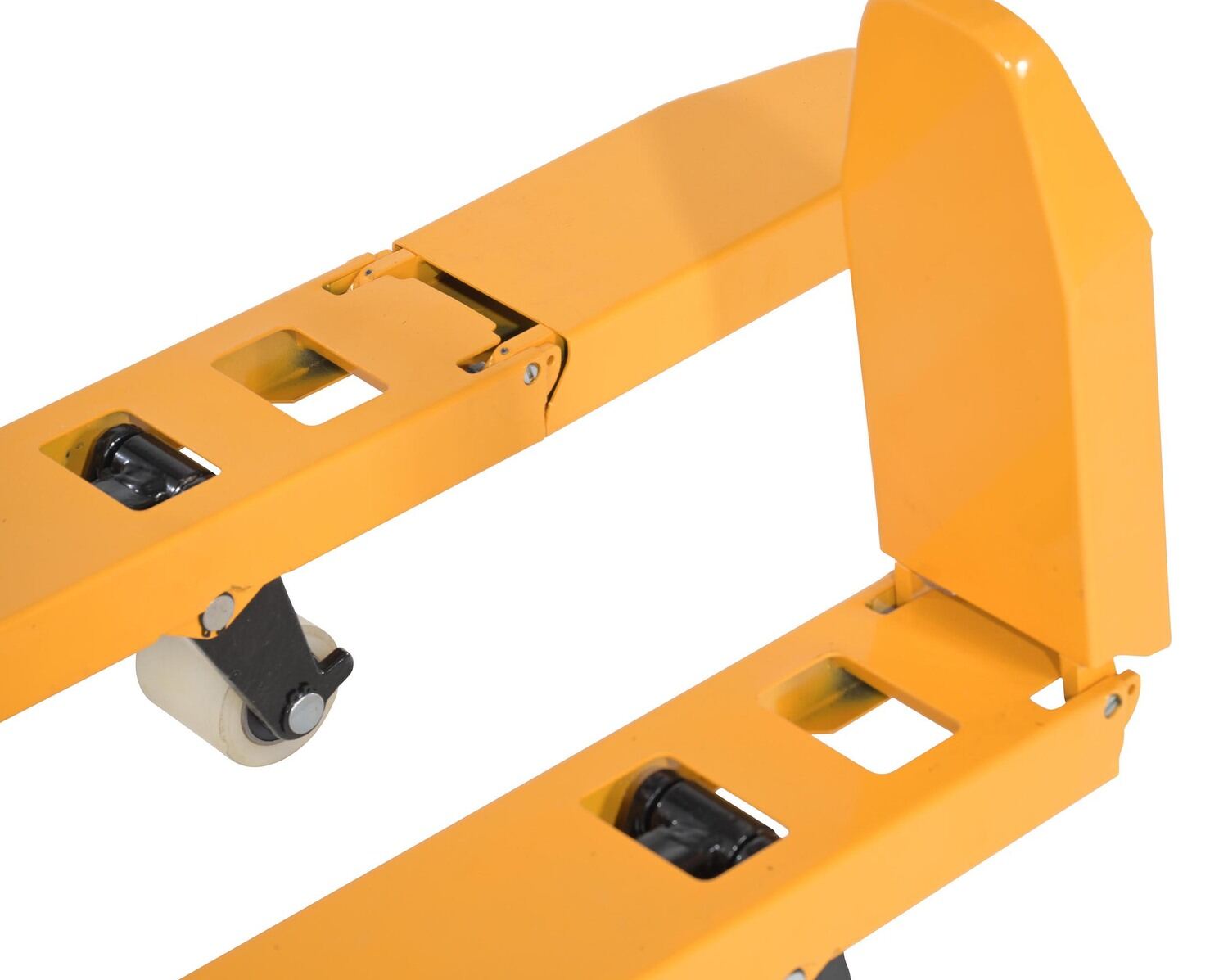

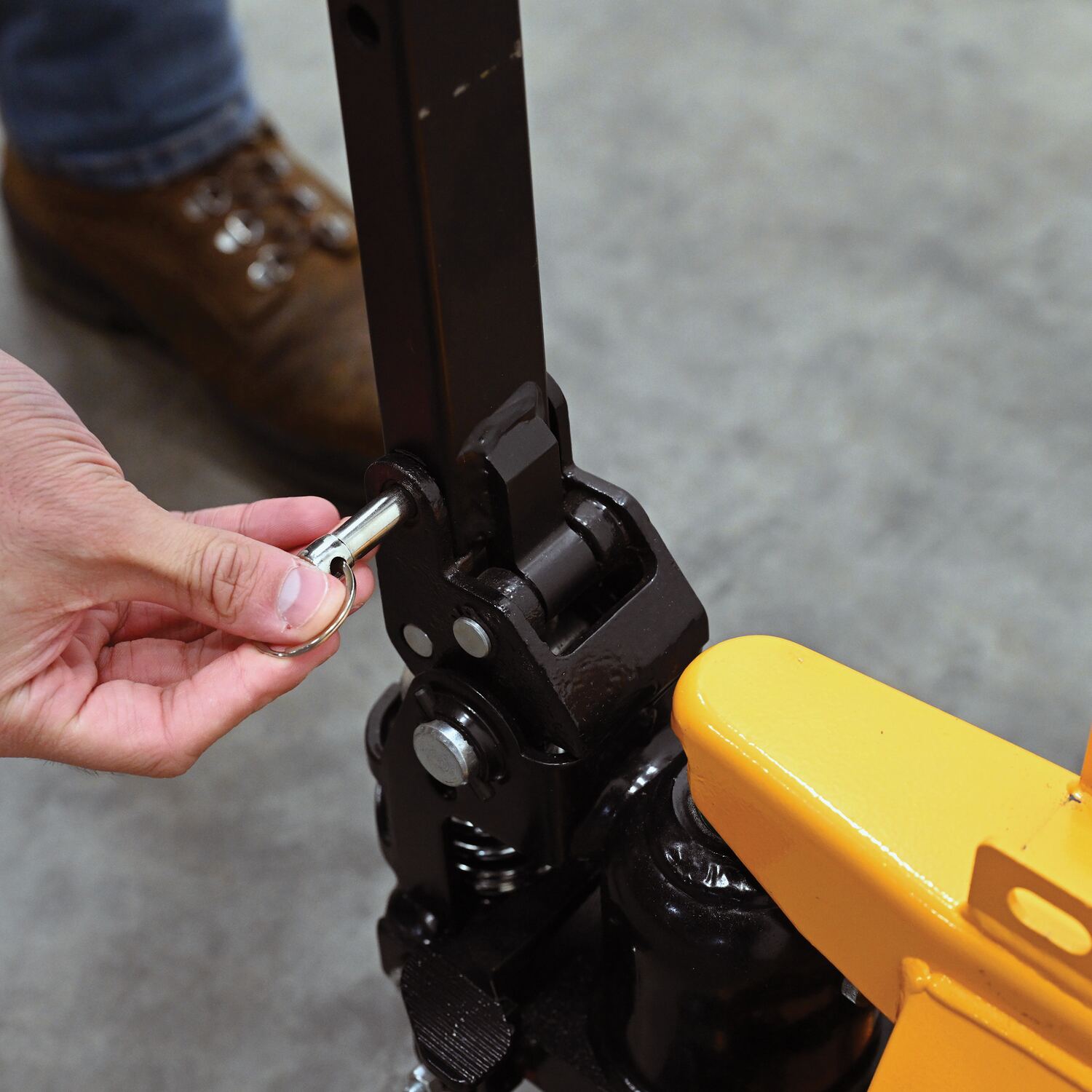

Just when it seemed the mini pallet truck couldn't get any smaller, they found a way to make it even more compact! At first glance the overall design may appear to be unchanged, but the features are hidden in plain sight. Not only does the handle now fold down, but the fork tips fold up and back. To better secure the handle in the down position, pre-drilled mounting holes are provided to connect the handle to a welded on bracket. While some things have changed, the always dependable powder coated steel construction has remained. With floor space continuously at a premium, the mini pallet truck is destined to be any facilities go-to pallet truck!

  • Hydraulic hand pump handle
  • Shorter than standard forks
  • Front and back nylon casters
  • Folding handle
Total Ship Wt.(lbs.): 115 (only 1 package) Size: 15"W x 45"L x 45"H Color: Yellow

Uniform Capacity (lb.): 1,100 Service Range (in.): 2-3/8 to 6 Fork Width (in.): 4
Overall Fork Width/Length (in.): 15 x 32 Rigid Caster Quantity/Diameter/Width (in.): (2) 2-1/4 x 2-1/8 Swivel Caster Quantity/Diameter/Width (in.): (2) 5 x 1-9/16
Caster Material: Nylon Finish: Powder Coat Lowered Height (in.): 2-3/8
Raised height (in.): 6 Power/Operation: Hydraulic Hand Pump Caster Color: Red
Fork Center: 11 Handle Height (in.): 44-3/8 Handle Diameter (in.): 1-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM1-1532-MINI-FD


PM1-1532-MINI-FD

Steel Mini Hand Pallet Truck Fold Down 45 In. x 15 In. x 45 In. 1100 Lb. Capacity Yellow

Just when it seemed the mini pallet truck couldn't get any smaller, they found a way to make it even more compact! At first glance the overall design may appear to be unchanged, but the features are hidden in plain sight. Not only does the handle now fold down, but the fork tips fold up and back. To better secure the handle in the down position, pre-drilled mounting holes are provided to connect the handle to a welded on bracket. While some things have changed, the always dependable powder coated steel construction has remained. With floor space continuously at a premium, the mini pallet truck is destined to be any facilities go-to pallet truck!

  • Hydraulic hand pump handle
  • Shorter than standard forks
  • Front and back nylon casters
  • Folding handle
Dimensions: 15"W x 45"L x 45"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215375894 GTIN: 00691215375894
Warranty: -- Shipping Weight: 115 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,100 Service Range (in.): 2-3/8 to 6 Fork Width (in.): 4
Overall Fork Width/Length (in.): 15 x 32 Rigid Caster Quantity/Diameter/Width (in.): (2) 2-1/4 x 2-1/8 Swivel Caster Quantity/Diameter/Width (in.): (2) 5 x 1-9/16
Caster Material: Nylon Finish: Powder Coat Lowered Height (in.): 2-3/8
Raised height (in.): 6 Power/Operation: Hydraulic Hand Pump Caster Color: Red
Fork Center: 11 Handle Height (in.): 44-3/8 Handle Diameter (in.): 1-1/2
