Model Details

PM10-2245

Printer Friendly
PM10-2245

Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity Yellow

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. This pallet truck is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life. Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.

  • Economical way for one person to move heavy pallet loads without the use of a fork truck
  • Steering wheels include bearing dust covers for added life
  • Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks
  • Hydraulic pump design facilitates easy-access seal replacement

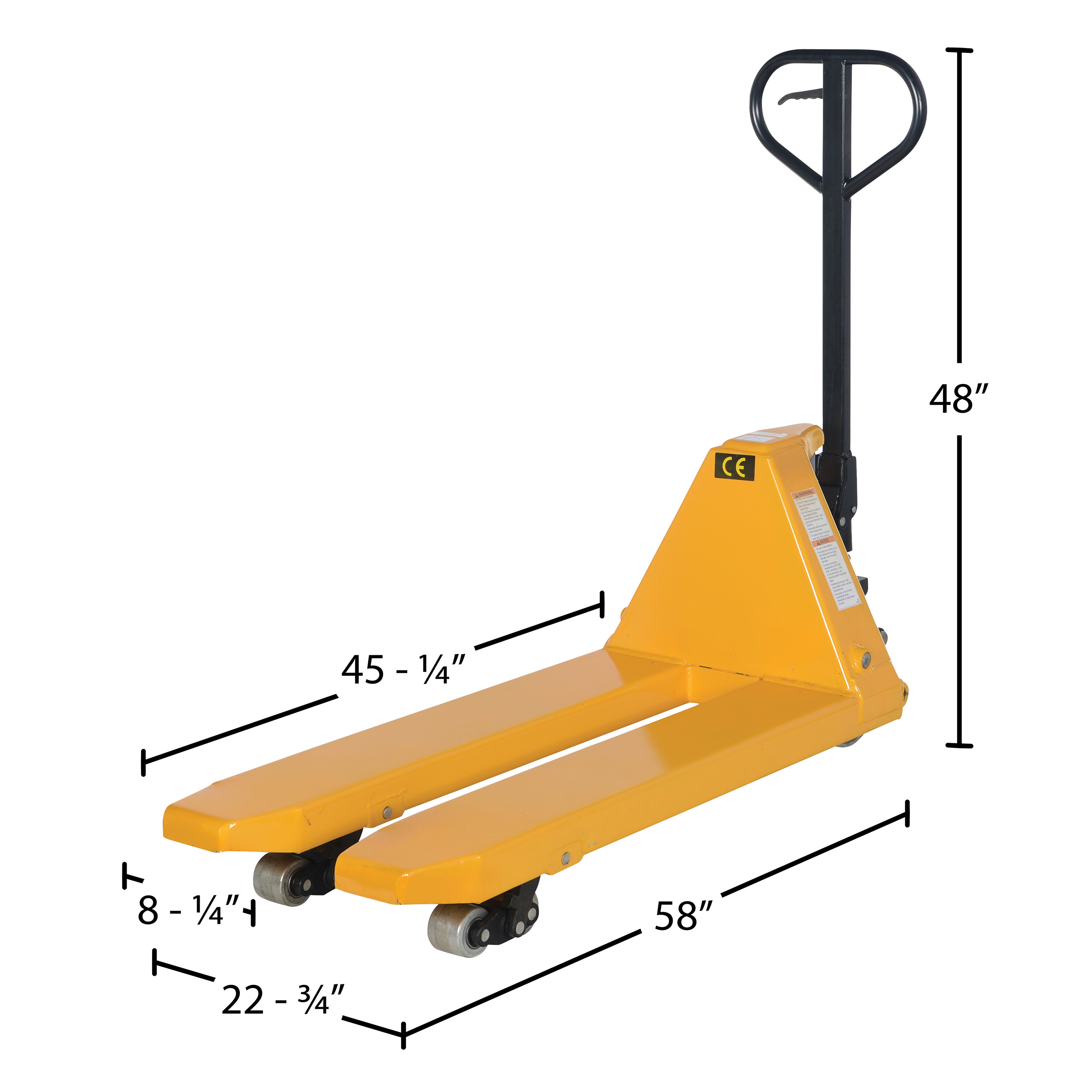

Total Ship Wt.(lbs.): 423 (only 1 package) Size: 22.75"W x 58"L x 48"H Color: Yellow

Uniform Capacity (lb.): 10000 Overall Fork Width (in.): 22-3/4 Overall Fork Length (in.): 45-1/4
Fork Range Minimum (in.): 3-1/2 Fork Range Maximum (in.): 7-7/8 Individual Fork Width (in.): 8-1/4
Steer Wheel Material: Steel Steer Wheel Diameter (in.): 6-1/4 Steer Wheel Width (in.): 2
Number of Wheels (qty.): 4 Load Wheel Diameter (in.): 1 Load Wheel Width (in.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM10-2245
PM10-2245

Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity Yellow

The full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. This pallet truck is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life. Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.

  • Economical way for one person to move heavy pallet loads without the use of a fork truck
  • Steering wheels include bearing dust covers for added life
  • Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks
  • Hydraulic pump design facilitates easy-access seal replacement
Dimensions: 22.75"W x 58"L x 48"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215062183 GTIN: 00691215062183
Warranty: -- Shipping Weight: 423 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Overall Fork Width (in.): 22-3/4 Overall Fork Length (in.): 45-1/4
Fork Range Minimum (in.): 3-1/2 Fork Range Maximum (in.): 7-7/8 Individual Fork Width (in.): 8-1/4
Steer Wheel Material: Steel Steer Wheel Diameter (in.): 6-1/4 Steer Wheel Width (in.): 2
Number of Wheels (qty.): 4 Load Wheel Diameter (in.): 1 Load Wheel Width (in.): 2
