Model Details

PM4-4048-RL

Printer Friendly
PM4-4048-RL

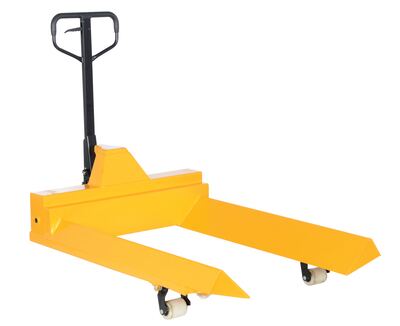

Steel Pallet Truck V-Shaped Center 78 In. x 40 In. x 43-13/16 In. 4000 Lb. Capacity Yellow

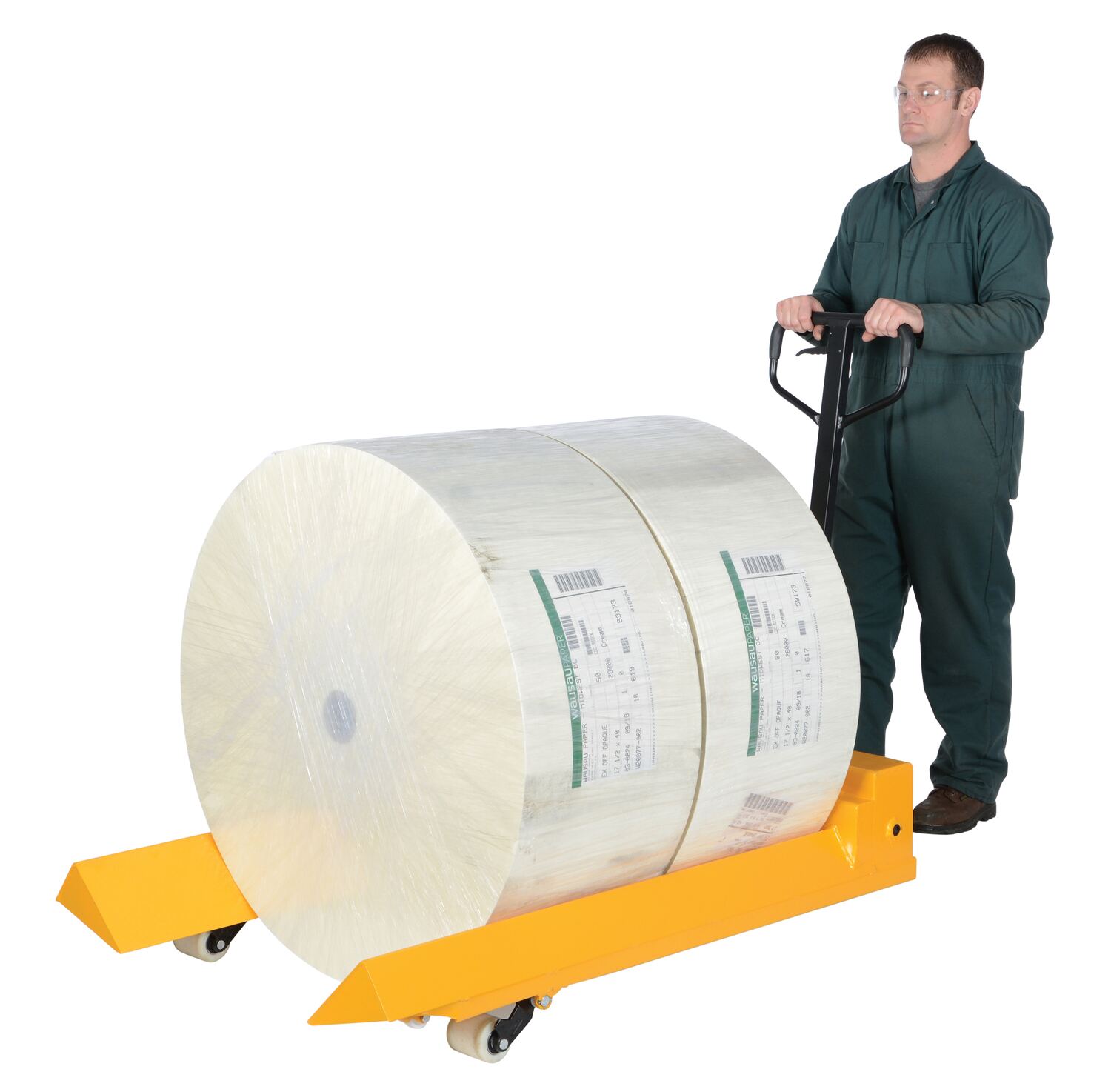

The roll pallet truck transports rolls of materials with standard pallet trucks. Sloped ends allow for manually rolling material into position. V-shaped center holds rolls into position.

  • V-shaped center holds rolls in needed position
  • Heavy-duty welded steel construction offers long lasting use
  • Yellow colored finish provides sustainable visibility
  • Sloped ends allow for manually rolling material into position
Total Ship Wt.(lbs.): 360 (only 1 package) Size: 40"W x 78"L x 43.8125"H Color: Yellow

Uniform Capacity (lb.): 4000 Overall Fork Width (in.): 40 Overall Fork Length (in.): 48
Service Range (in.): 0 to 7-3/4 Individual Fork Width (in.): 7-1/2 Steer Caster Material: Poly-On-Steel
Steer Caster Diameter/Width (in.): 7 x 2 Load Roller Material: Polyurethane Load Roller Diameter/Width (in.): 3-1/2 x 3
Minimum Roll Size Diameter Unit Accommodates (in.): 31-1/2 Maximum Roll Size Diameter Unit Accommodates (in.): 47-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM4-4048-RL
PM4-4048-RL

Steel Pallet Truck V-Shaped Center 78 In. x 40 In. x 43-13/16 In. 4000 Lb. Capacity Yellow

The roll pallet truck transports rolls of materials with standard pallet trucks. Sloped ends allow for manually rolling material into position. V-shaped center holds rolls into position.

  • V-shaped center holds rolls in needed position
  • Heavy-duty welded steel construction offers long lasting use
  • Yellow colored finish provides sustainable visibility
  • Sloped ends allow for manually rolling material into position
Dimensions: 40"W x 78"L x 43.8125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215077866 GTIN: 00691215077866
Warranty: -- Shipping Weight: 360 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Overall Fork Width (in.): 40 Overall Fork Length (in.): 48
Service Range (in.): 0 to 7-3/4 Individual Fork Width (in.): 7-1/2 Steer Caster Material: Poly-On-Steel
Steer Caster Diameter/Width (in.): 7 x 2 Load Roller Material: Polyurethane Load Roller Diameter/Width (in.): 3-1/2 x 3
Minimum Roll Size Diameter Unit Accommodates (in.): 31-1/2 Maximum Roll Size Diameter Unit Accommodates (in.): 47-1/4
