Model Details

PM5-2748-DMHB

PM5-2748-DMHB

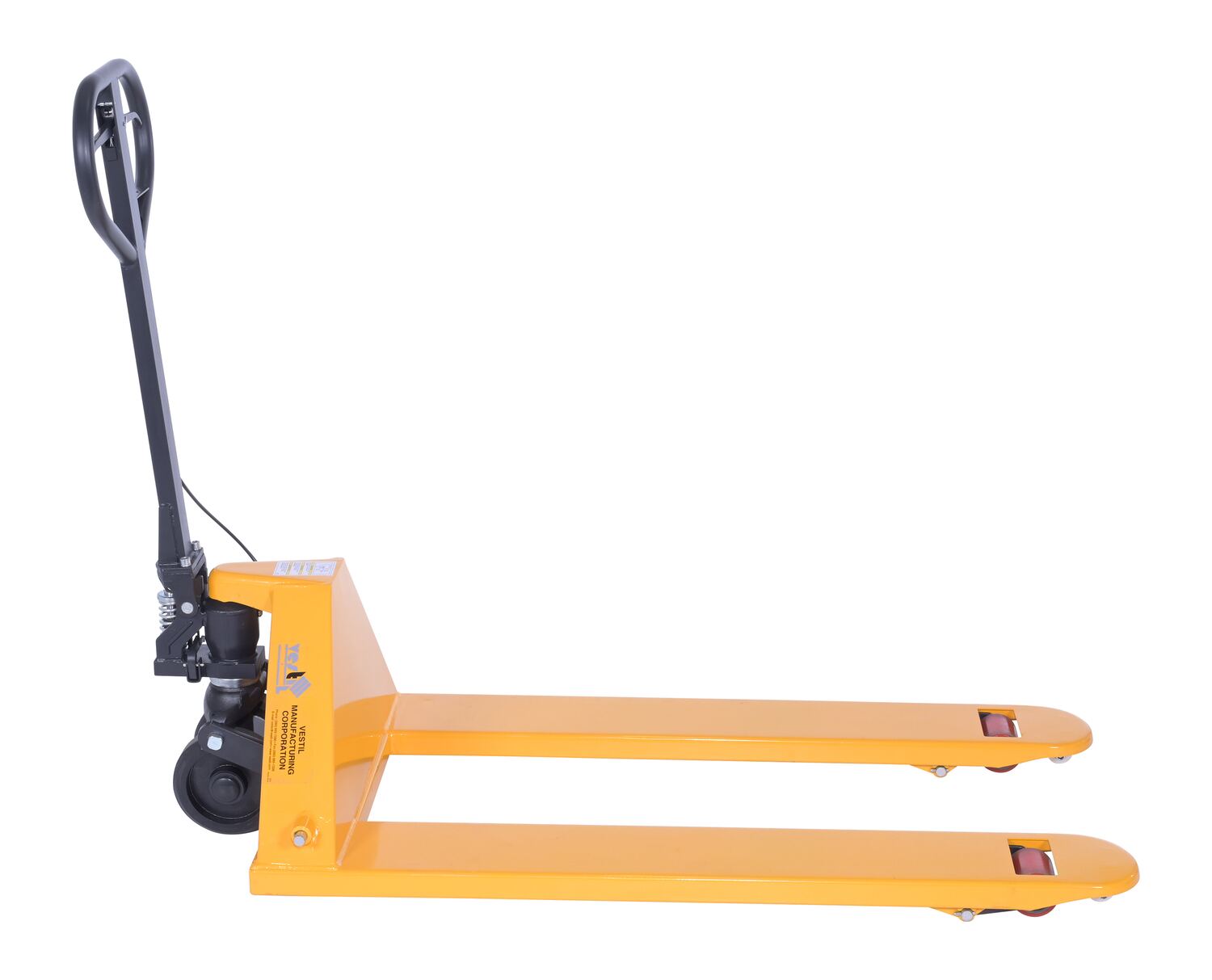

Pallet Truck with Dead Man Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

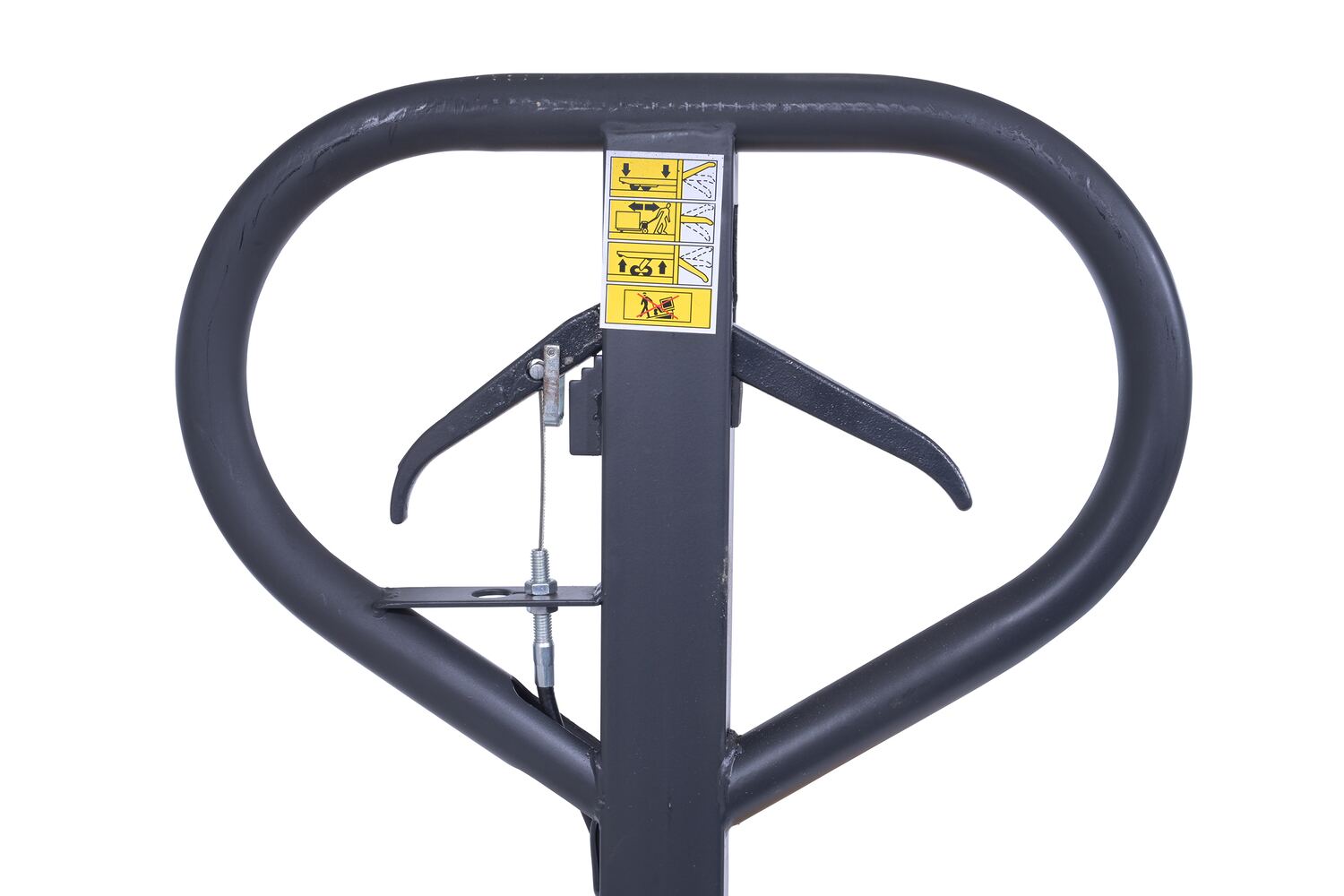

The pallet truck with hand brake option only moves when you depress the hand brake.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded

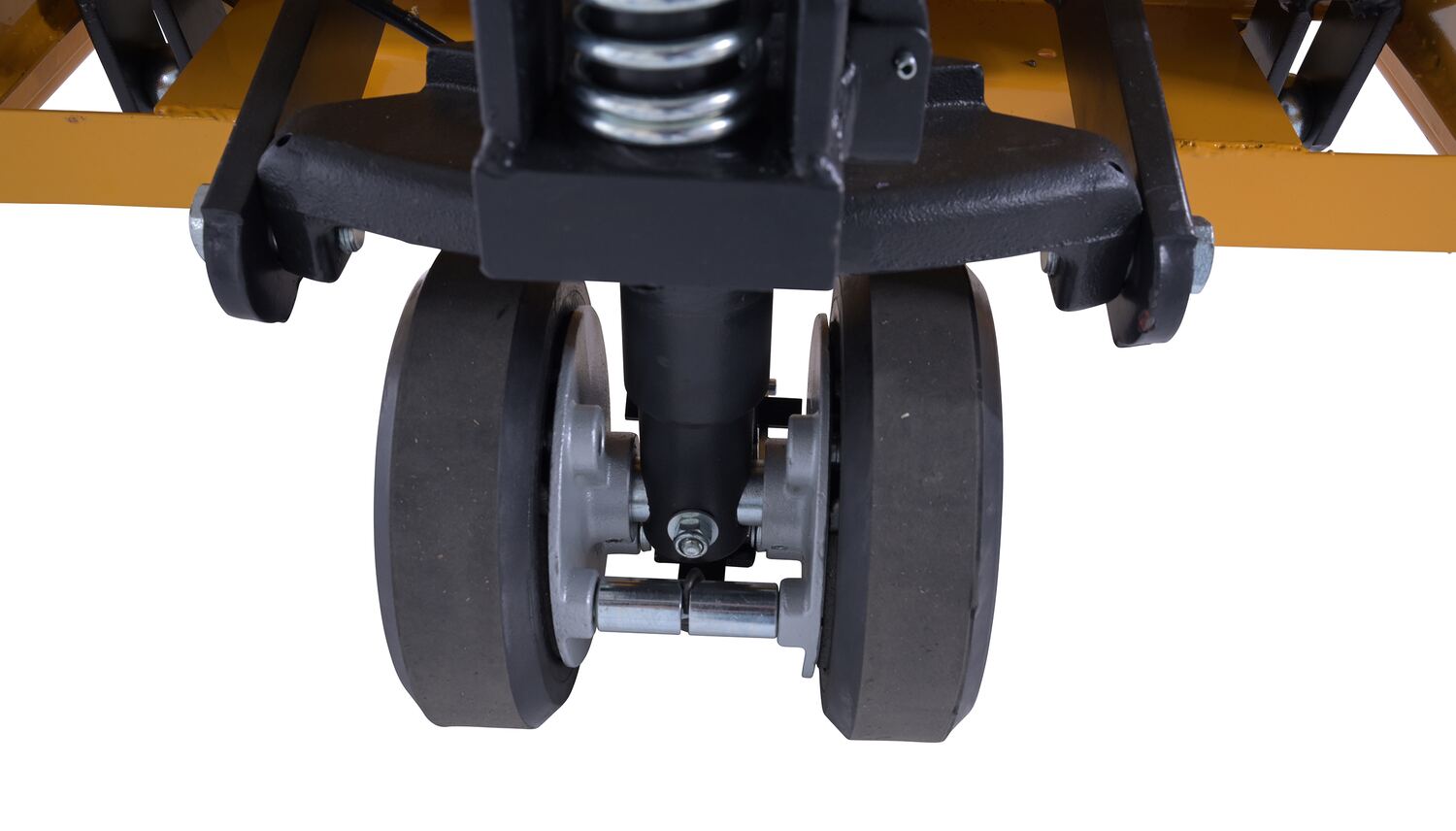

  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Total Ship Wt.(lbs.): 221 (only 1 package) Size: 27"W x 66"L x 49"H Color: Yellow

Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-DMHB


PM5-2748-DMHB

Pallet Truck with Dead Man Brake 66 In. x 27 In. x 49 In. 5500 Lb. Capacity Yellow

The pallet truck with hand brake option only moves when you depress the hand brake.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 27"W x 66"L x 49"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215077897 GTIN: 00691215077897
Warranty: -- Shipping Weight: 221 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 4
