Model Details

PMPS-60-AIR

Printer Friendly

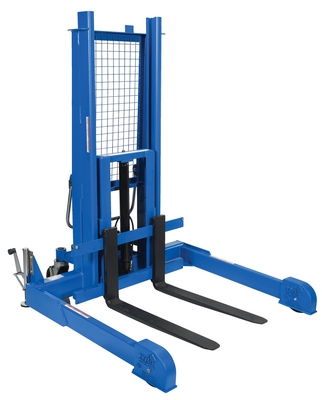

PMPS-60-AIR

Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Foot treadle control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.

  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Foot treadle control on an eight (8) foot coil cord standard
Total Ship Wt.(lbs.): 1029 (only 1 package) Size: 58"W x 66"L x 87"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Operation: Reciprocating Air/Oil Fork Width (in.): 4
Fork Length (in.): 36 Fork Raised Height (in.): 60 Fork Lowered Height (in.): 3
Handle Height (in.): 36 Coil Cord Length (in.): 96 Rear Swivel Caster Quantity/Diameter/Width (in.): (2) 8x3
Rear Caster Material: Phenolic Front Wheel Quantity/Diameter/Width (in.): (2) 8x2 Front Wheel Material: Glass Filled Nylon
Overall Width (in.): 58 Straddle Inner Dimension (in.): 49-1/2 Overall Length (in.): 6
Overall Raised Height (in.): 101 Overall Lowered Height (in.): 87 Maximum Fork Height Before Carriage Exceeds Height of Mast (in.): 42
Maximum Fork Spread OD (in.): 37 Steel Construction: ASTM A-36 Minimum Lifting Speed CFM/PSI: 15/100 (1/4 GPM)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PMPS-60-AIR
PMPS-60-AIR

Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Foot treadle control on an eight (8) foot coil cord standard. Floor lock standard. All welded steel construction.

  • Easily move fully loaded pallets enabled by one person
  • Straddle design works pallets and skids with or without an understructure
  • Ideal for loading and unloading semi-trailers without strenuous work
  • Foot treadle control on an eight (8) foot coil cord standard
Dimensions: 58"W x 66"L x 87"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215030946 GTIN: 00691215030946
Warranty: -- Shipping Weight: 1029 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Operation: Reciprocating Air/Oil Fork Width (in.): 4
Fork Length (in.): 36 Fork Raised Height (in.): 60 Fork Lowered Height (in.): 3
Handle Height (in.): 36 Coil Cord Length (in.): 96 Rear Swivel Caster Quantity/Diameter/Width (in.): (2) 8x3
Rear Caster Material: Phenolic Front Wheel Quantity/Diameter/Width (in.): (2) 8x2 Front Wheel Material: Glass Filled Nylon
Overall Width (in.): 58 Straddle Inner Dimension (in.): 49-1/2 Overall Length (in.): 6
Overall Raised Height (in.): 101 Overall Lowered Height (in.): 87 Maximum Fork Height Before Carriage Exceeds Height of Mast (in.): 42
Maximum Fork Spread OD (in.): 37 Steel Construction: ASTM A-36 Minimum Lifting Speed CFM/PSI: 15/100 (1/4 GPM)
