Model Details

PP-1572-36

Printer Friendly

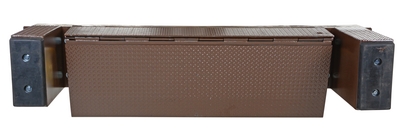

PP-1572-36

Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 15,000 Lb. Capacity Brown

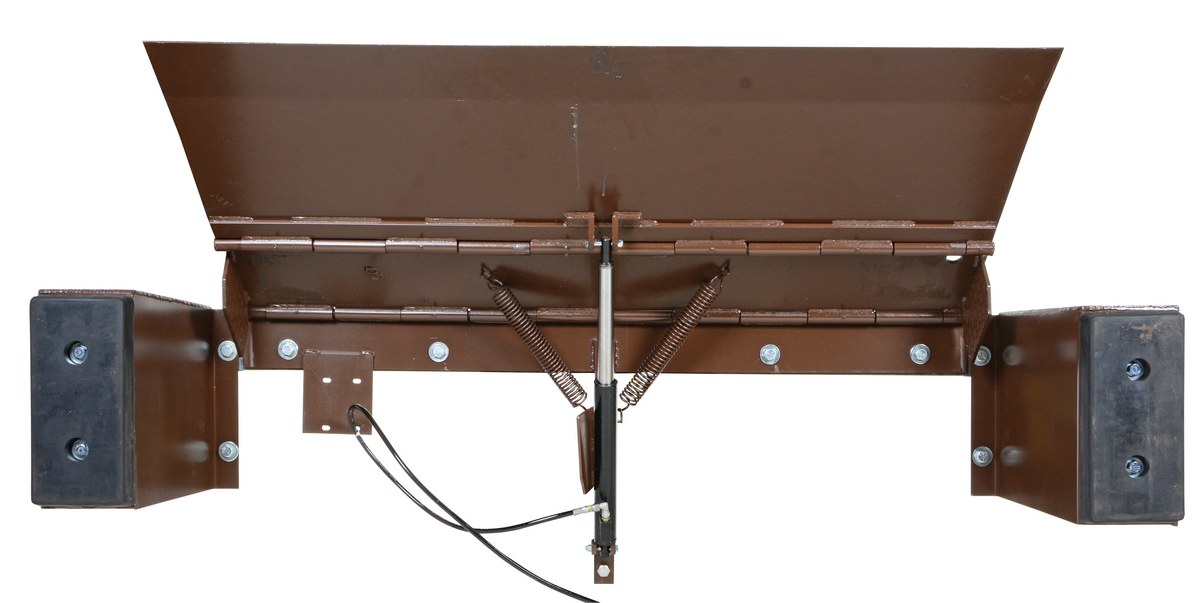

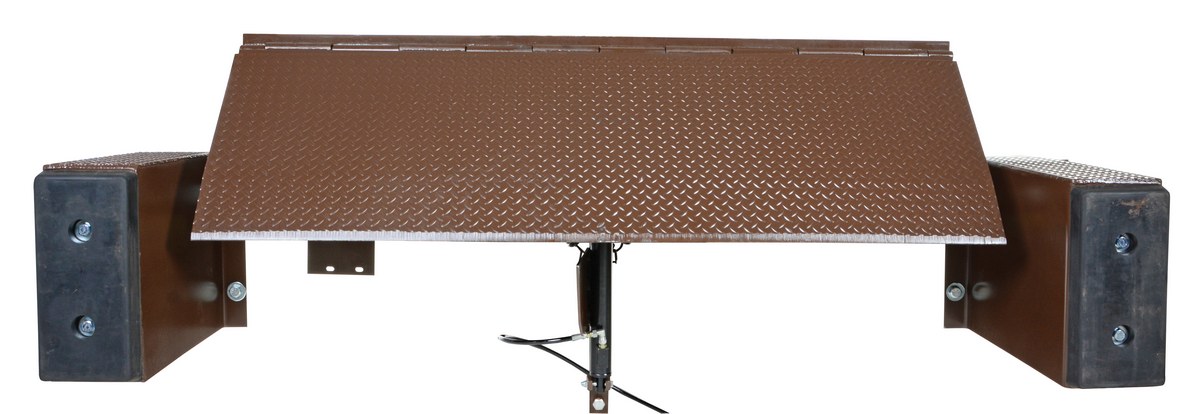

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least 48 inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is 29 inches; models FM/PP/PE 3066 and 3072 are 29-13/16 inches, with a 36-5/8 inches long ramping length available. A steel dock edge, or approach ramp is required for proper installation. The Hydraulic hand pump system is used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall mount brackets, cylinder, one-hundred eighty (180) inch hydraulic line and oil. Truck must pull out for leveler to return to stored position.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use
Total Ship Wt.(lbs.): 743 (only 1 package) Size: 98"W x 26.75"L x 27.75"H Color: Brown

Uniform Capacity (lb.): 15000 Service range above dock (in.): 5 Service range below dock (in.): 5
Bumper Width (in.): 8 Bumper Length (in.): 2 Bumper Height (in.): 18
Ramp Width (in.): 72 Ramping Length (in.): 36-5/8 Bumper projection including rubber bumper (in.): 26-3/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PP-1572-36
PP-1572-36

Steel Hand Pump Edge-O-Dock Leveler 72 In. Ramp Width x 36-5/8 In. Ramp Length 15,000 Lb. Capacity Brown

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least 48 inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is 29 inches; models FM/PP/PE 3066 and 3072 are 29-13/16 inches, with a 36-5/8 inches long ramping length available. A steel dock edge, or approach ramp is required for proper installation. The Hydraulic hand pump system is used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall mount brackets, cylinder, one-hundred eighty (180) inch hydraulic line and oil. Truck must pull out for leveler to return to stored position.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Product design conveniently does not require a concrete recess
  • Solid steel construction offers long lasting reliable use
Dimensions: 98"W x 26.75"L x 27.75"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215031240 GTIN: 00691215031240
Warranty: -- Shipping Weight: 743 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 15000 Service range above dock (in.): 5 Service range below dock (in.): 5
Bumper Width (in.): 8 Bumper Length (in.): 2 Bumper Height (in.): 18
Ramp Width (in.): 72 Ramping Length (in.): 36-5/8 Bumper projection including rubber bumper (in.): 26-3/4
