Model Details

ROL-80

ROL-80

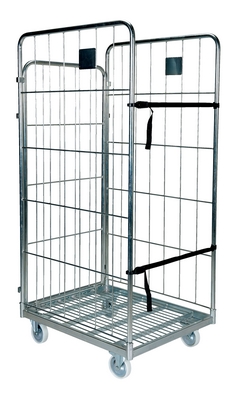

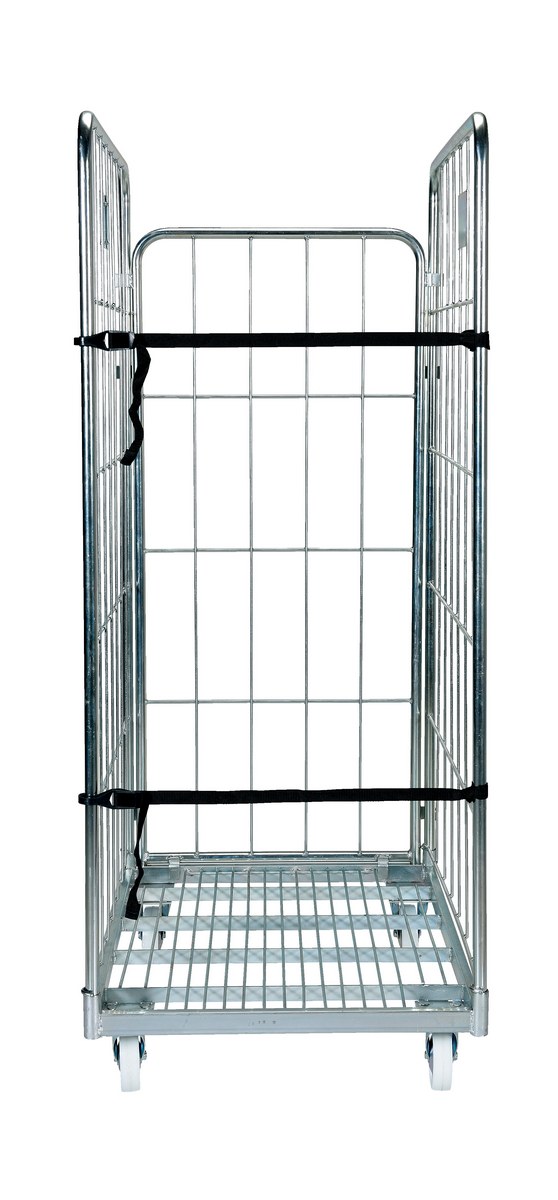

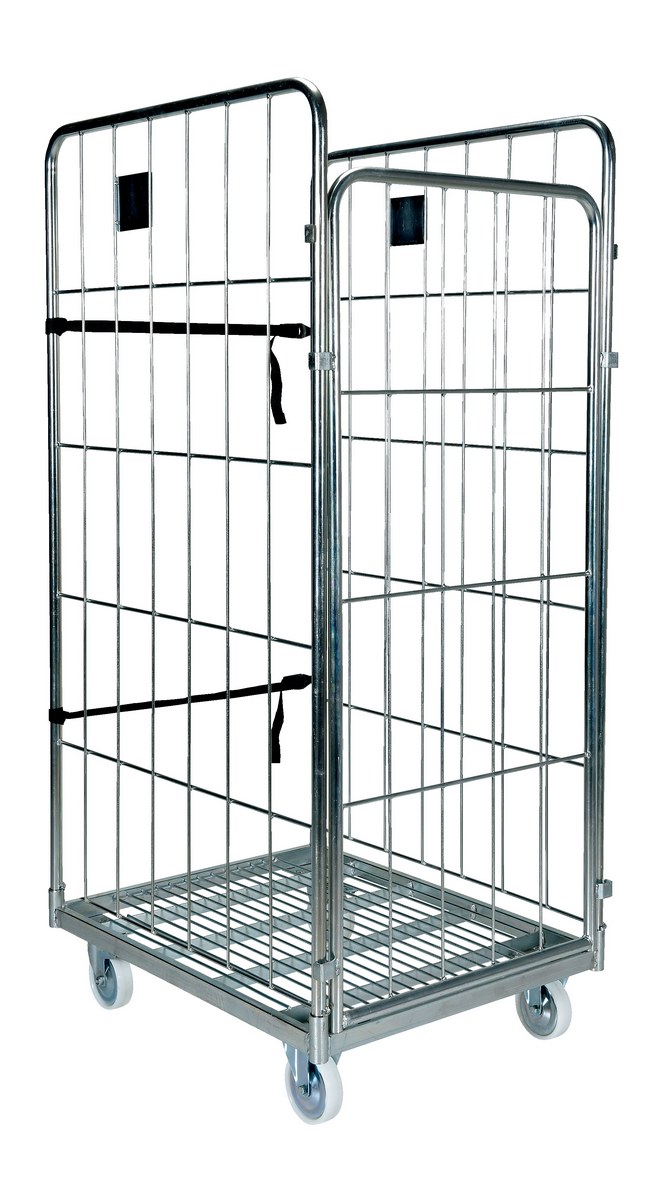

Galvanized Steel Foldable/Nestable Roller Container 1 Shelf 35-1/4 In. x 28-1/4 In. x 69-11/16 In. 660 Lb. Capacity Gray

The roller container provides convenient portability between work cells or for delivery or distribution of goods. Unit rolls smoothly on casters. To figure individual uniform shelf capacity divide the number of shelves by total capacity. This particular model includes a single base and (3) three removable sides that can be easily disassembled.

  • Item can knocked-down for easy storage
  • Steel construction offers long lasting rugged use
  • Mesh design allows contents to be viewed
  • Caster design rolls smoothly from one location to another
Total Ship Wt.(lbs.): 103 (only 1 package) Size: 28.25"W x 35.25"L x 69.7"H Color: Gray

Total Uniform Capacity (lb.): 660 Number of Shelves: 1 Mesh Opening Width (in.): 12-1/2
Mesh Length (in.): 4 Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Swivel Caster with Brakes (qty.): 2 Rigid Caster (qty.): 2 Caster Material: Poly
Folded Width (in.): 26 Folded Length (in.): Usable Width (in.): 33
Usable Length (in.): 26 Usable Height (in.): 69.7 Overall Back Panel Height (in.): 69.7

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ROL-80


ROL-80

Galvanized Steel Foldable/Nestable Roller Container 1 Shelf 35-1/4 In. x 28-1/4 In. x 69-11/16 In. 660 Lb. Capacity Gray

The roller container provides convenient portability between work cells or for delivery or distribution of goods. Unit rolls smoothly on casters. To figure individual uniform shelf capacity divide the number of shelves by total capacity. This particular model includes a single base and (3) three removable sides that can be easily disassembled.

  • Item can knocked-down for easy storage
  • Steel construction offers long lasting rugged use
  • Mesh design allows contents to be viewed
  • Caster design rolls smoothly from one location to another
Dimensions: 28.25"W x 35.25"L x 69.7"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215065825 GTIN: 00691215065825
Warranty: -- Shipping Weight: 103 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Total Uniform Capacity (lb.): 660 Number of Shelves: 1 Mesh Opening Width (in.): 12-1/2
Mesh Length (in.): 4 Caster Diameter (in.): 5 Caster Width (in.): 1-1/2
Swivel Caster with Brakes (qty.): 2 Rigid Caster (qty.): 2 Caster Material: Poly
Folded Width (in.): 26 Folded Length (in.): Usable Width (in.): 33
Usable Length (in.): 26 Usable Height (in.): 69.7 Overall Back Panel Height (in.): 69.7
