This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with a standard pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.
| Uniform Capacity (lb.): 20,000 | Molded Bumper Width (in.): 5 | Molded Bumper Height (in.): 16 |
| Molded Bumper Depth (in.): 2 | PSI Checker Plated Deck: 55,000 | Service Range Above Dock (in.): 12 |
| Service Range Below Dock (in.): 8 | Long Lip (in.): 12 (extends 6-1/2 (in.) into truck) | Installation Method: Recessed Pit |
| Platform Type: Treadplate | Platform Thickness (in.): 1/4 | Pit Width (in.): 74 |
| Pit Length (in.): 86-1/2 | Pit Depth (in.): 28 |
Quickship Item?
Can It Ship UPS/FedEx?

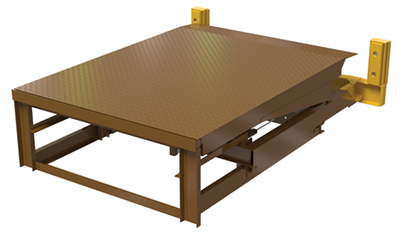

Details For Model: RU-800-SCB-F |
|||||||||||||||||||||||||||||||
|
Steel Truck Actuated Dock Leveler 113-1/4 In. x 88 In. x 27-1/2 In. 20000 Lb. Capacity BrownThis is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with a standard pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.
|
||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
